This product complies with standards such as GB7251 "Low-voltage complete sets of switchgear and control equipment" and |EC60439 "Low-voltage complete sets of switchgear and control equipment".

Features:
○ The cabinet of the GGD type AC low-voltage distribution switchgear adopts the form of a universal cabinet. The frame is assembled from C profiles. The frame parts and special supporting parts are produced and supplied by our company to ensure the accuracy and quality of the cabinet. The parts of the universal cabinet are designed according to the modular principle and have 20 modules of mounting holes. The universal coefficient is high.
It enables factories to achieve pre-production. It not only shortens the production and manufacturing cycle, but also improves work efficiency.
○ When designing the GGD cabinet, the heat dissipation problem during cabinet operation is fully considered. There are different numbers of heat dissipation slots at the upper and lower ends of the cabinet. When the electrical components in the cabinet heat up, the heat rises and is discharged through the upper slots, while cold air is continuously replenished into the cabinet through the lower slots. This is a self-sealing cabinet. A natural ventilation channel is formed from bottom to top to achieve the purpose of heat dissipation.

○ The cabinet door is connected to the frame with a rotating shaft-type movable hinge, making it easy to install and disassemble. A mountain-shaped rubber plastic strip is embedded in the removed edge of the door. When the door is closed, the direct strip between the door and the frame has a certain compression stroke, which can prevent direct collision between the door and the cabinet, and also improves the door's protection level.
○ The instrument door containing electrical components is connected to the frame with multiple strands of soft copper wire. The mounting parts in the cabinet are connected to the frame with knurled washers, and the entire cabinet forms a complete grounding protection system.
○ The surface of the cabinet is treated with high-voltage electrostatic spray powder technology. It has strong adhesion and good texture. The entire cabinet is matt in color, which avoids glare effects and creates a more comfortable visual environment for the personnel on duty.
○ The top cover of the cabinet can be removed when needed to facilitate the assembly and adjustment of the main busbar on site. The four corners of the cabinet top are equipped with lifting rings for lifting and shipping.
○ The protection level of the cabinet is |P30. Users can also choose between IP20~IP40 according to the requirements of the use environment.

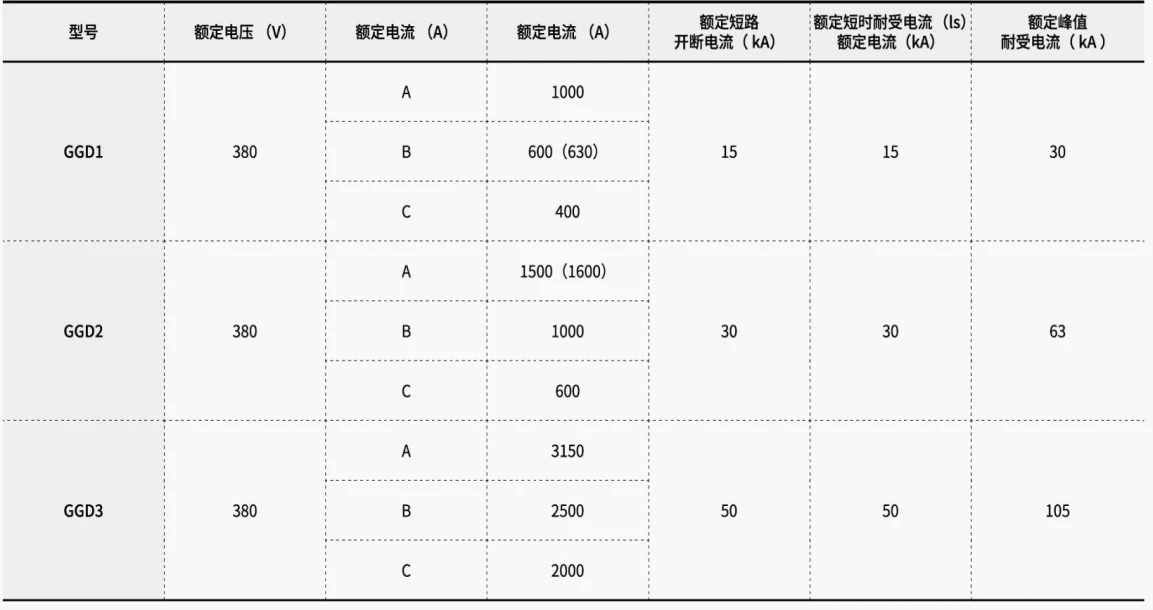

Switchgear technical parameters:

product-1153-610
