Amorphous Alloy Core Dry Type Transformers Of 10kV Level and Below

Part Ⅰ: Amorphous Alloy Core Dry Type Transformers

Amorphous alloy core dry type transformer has the advantages of low no-load loss, oil-free, flame retardant and self-extinguishing, moisture resistant, anti-cracking and maintenance-free. It can be used in high-rise buildings, commercial centers, airports, oil platforms, subways, tunnels, airports, stations, industrial and mining enterprises and power plants. It is especially suitable for installation and use in places with high fireproof requirements such as flammable and explosive.

Part Ⅱ: Product Features

1. Low Noise

① Normal operation noise is less than 55 decibels

② Selecting high quality amorphous alloy, choosing suitable magnetic flux density and self-oscillation frequency of core.

③ All clamping parts use silicon rubber and elastic components to cushion and reduce the amplitude of vibration.

2. Low Loss

① Amorphous alloy material has no crystal structure, low magnetization power, high resistivity, and low eddy current loss.

3. Low Partial discharge

Low Partial discharge makes the transformer free from any cracking and insulation level degradation throughout its service life.

4. Flame retardant

① The core is covered with insulating paint and the coil is encapsulated by epoxy resin, which can be operated in humid environment with high corrosion resistance.

② Burning grade F1

5. High overload capacity

Air-cooled system composed of multiple low-noise radial fans to reduce temperature and increase overload capacity.

Part Ⅲ: Structure Feature

1. Iron Core

The iron core is made of high quality, cold-rolled, granule-oriented silicon-steel sheets and machined with completely automatic cutting line, superposed with 45° six-level bias seams. Core column adopts special banding technique, the surface of iron core is painted with the special rustproof coating to resist humidity and rust, which can effectively reduce the no-load losses, no-load current and iron-core noise. Facilitated with six sets of cutting lines for iron core such as, Soenen from Belgium.

2. Winding

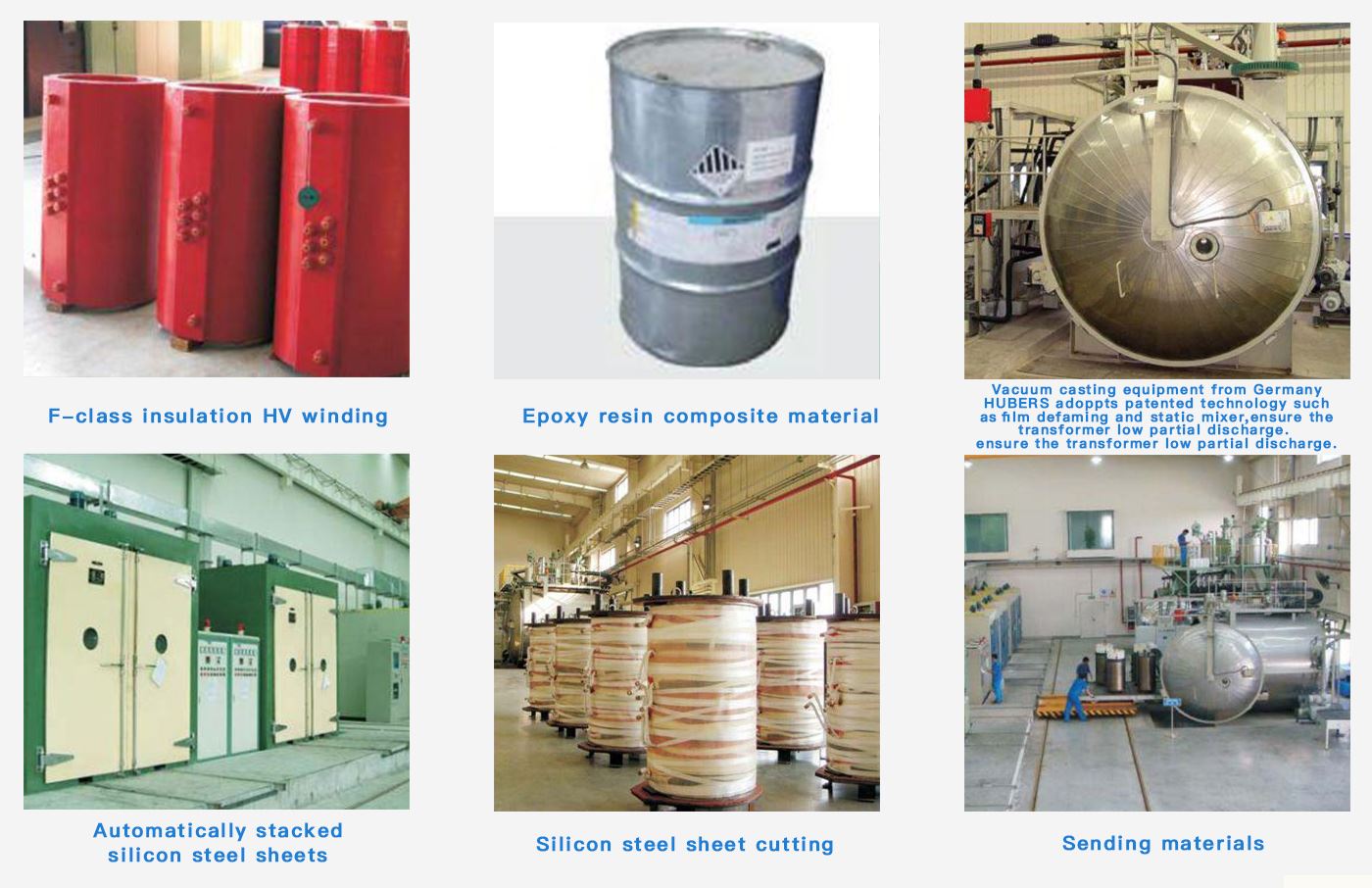

F-class insulation HV winding: it is made of lacquered wire. With hardness ranges from 120 to 210 Mpa. The insulation material is a composite of silicon micro-powder and epoxy resin, featuring high performances of good thermal shock resistance.fire resistance, no emission of hazardous gases, good heat dispersion and low winding temperature rise.

Part Ⅲ: Product Main Parameter

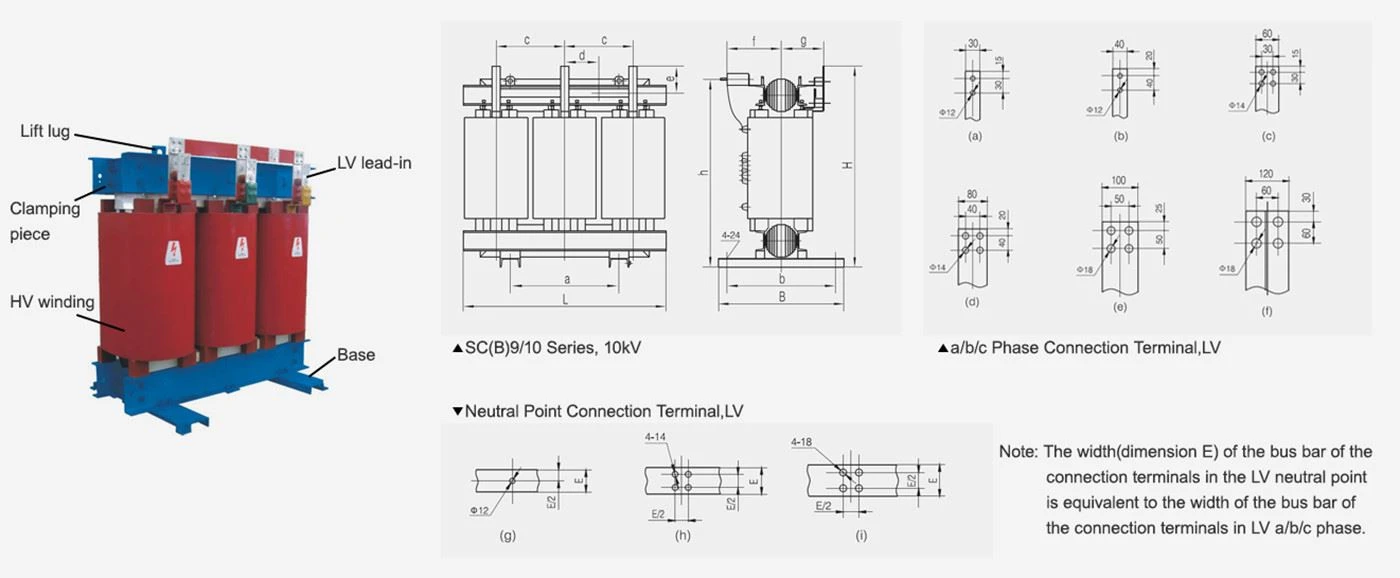

Part Ⅳ: Structural Diagram

Part Ⅴ: Quality Warranty

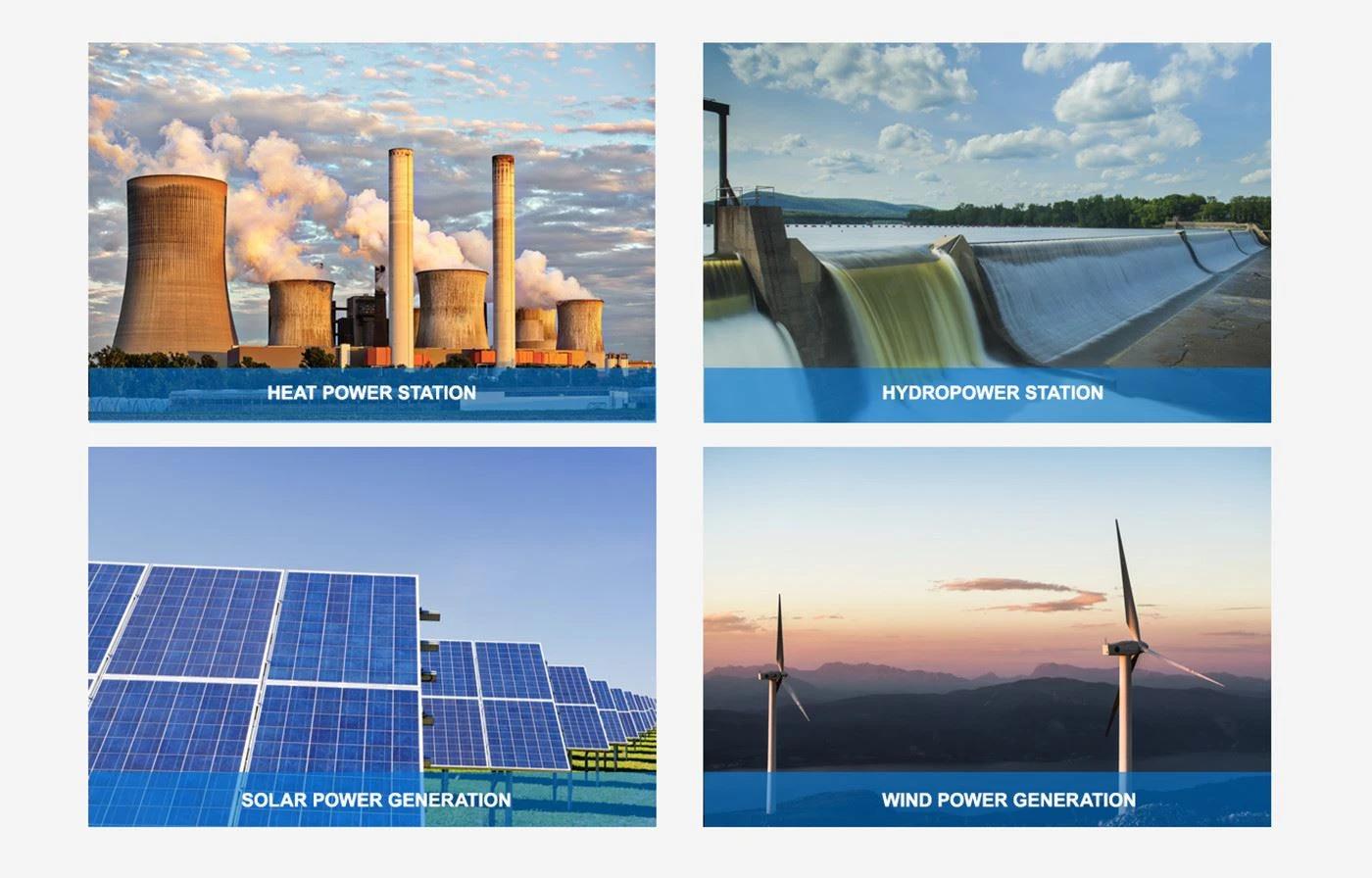

Part Ⅵ: Application

Part Ⅶ: Packaging and Transportation

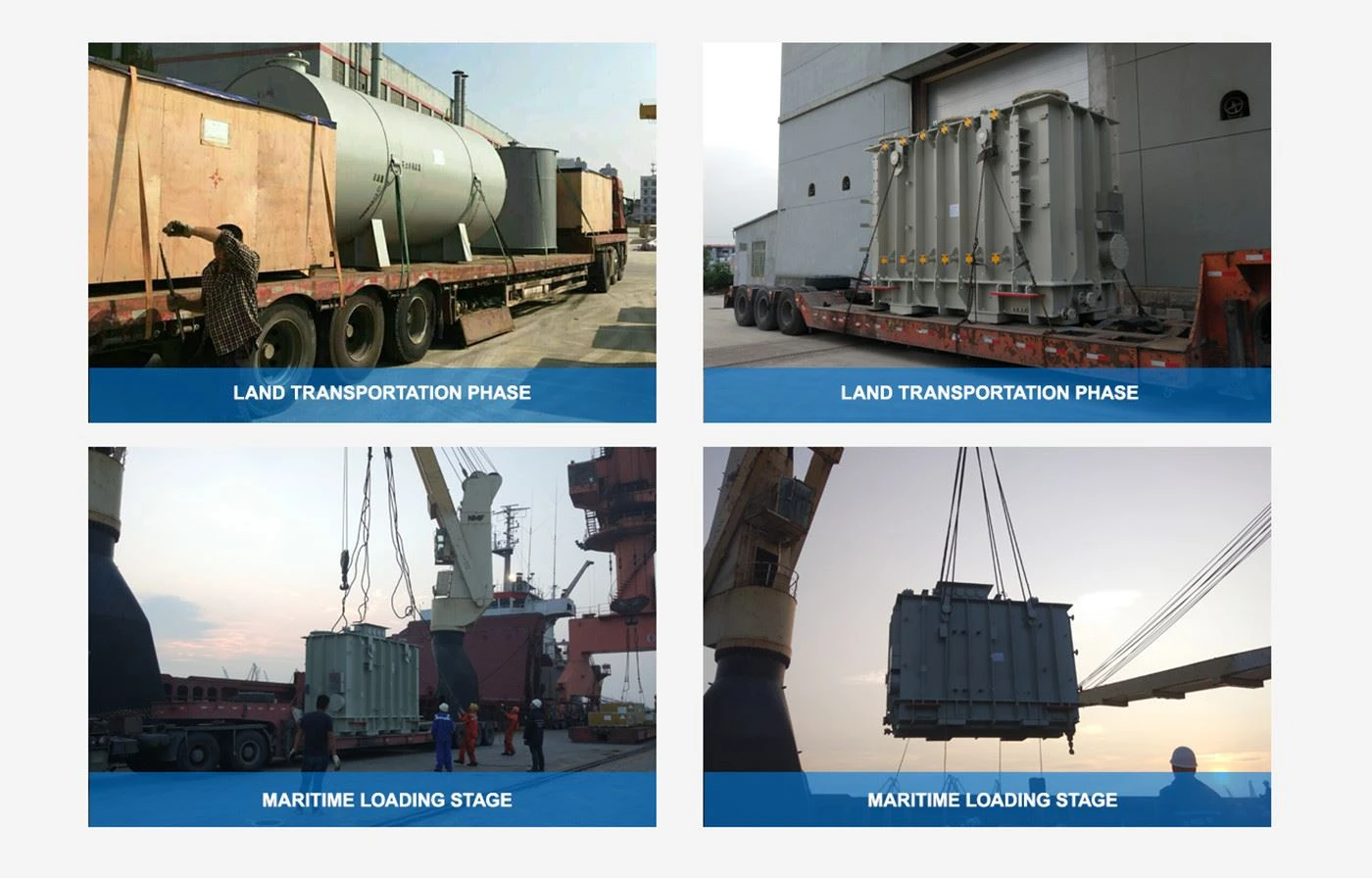

Before packing the transformer, make a packing plan, and carry out packing according to the design scheme and plan when packing. The packing list corresponds to the materials in the box one to one. Pack the box in two copies, one in the packing box and the other nailed outside the packing box. Important parts and spare parts are packed in wooden boxes, and the box numbers are set in order.

The transformer is transported in bare installation, and the fuel tank is emptied before transport. It is tied to a transport vehicle by a wire rope, and the transport speed does not exceed 15km/h.

The terminal is guaranteed to have large-scale transformer lifting equipment, and the lashing is firm after loading to ensure safe and reliable transportation.

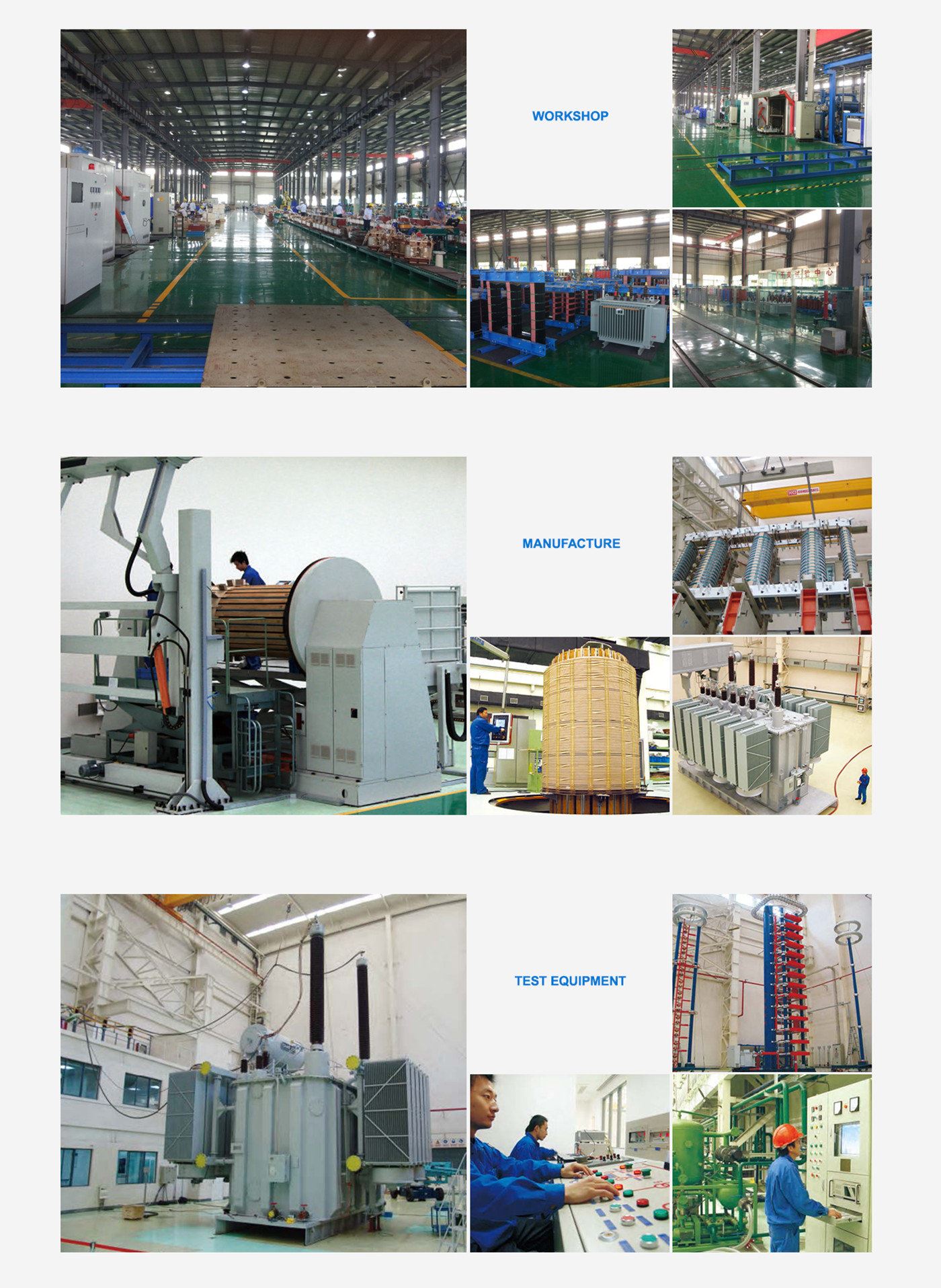

Part Ⅷ: Factory Tour

Part Ⅸ: Service Guarantee

1. To provide all technical information and drawings as per contract promptly. Everhydro is oblidged to invite client, if neccessory, to attend technical design review.

2. To carry out spot technical service as per client' s schedule, offer guideness for installation and commis- sioning according to technical information and drawings.

3. For relevant auxiliary equipment procured by customers. EverHydro will provide related technical information to meet requirement of equipment interface.

4. To execute stipulations in MOU or agreement signed by seller and buyer strictly.

5. To train staff from client for equipment installation commissioning, application, maintenance as stipulated in the contract.

6. To reinforce pre-sales, mid-sales, after-sales service to carry out "24-hour service", "service in advance", "overall process service", "lifelong service"in our manufacturing, installation, commissioning and maintance.

7. To meet spare parts requirements by customers at any time.
