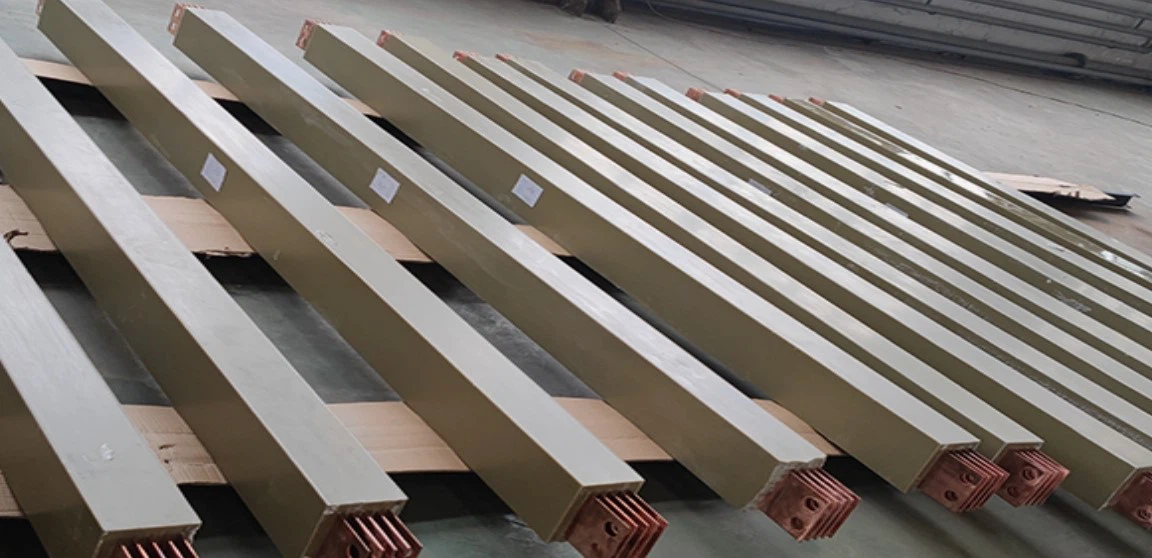

Resin cast bus duct is a common device in power systems. Its outer surface is smooth and the overall structure presents a solid and compact structure. Their overall size and shape are often designed based on specific electrical system needs.
Inside is a busbar system of cables, conductors and support structures, which are firmly held together by resin. The resin casting process ensures uniformity and high adhesion of the material, thereby improving the overall performance of the electrical device. When installed and maintained, resin cast bus ducts generally exhibit good wear resistance and durability.
The functions of resin cast bus duct are as follows:
Insulation Protection: Resin casting provides effective insulation, protecting the busbar from moisture, dust and other external environmental factors, reducing the risk of electrical equipment failure.
Anti-corrosion and moisture-proof: The resin has excellent anti-corrosion and moisture-proof properties, helping to extend the service life of the busway, especially in humid or corrosive environments.
Mechanical Protection: Cast resin creates a strong protective layer that prevents mechanical damage to the busbar duct from external objects, such as impact, crushing or vibration.
Improve the insulation strength: The use of resin improves the insulation strength of the bus duct, helps ensure the normal transmission of current and reduces the risk of insulation breakdown.
Thermal stability: Resin usually has good thermal stability and can maintain stable electrical properties within a certain temperature range, making it suitable for different working environments.
Simplified maintenance: Cast resin tightly wraps the bus duct, reducing the need for maintenance and making the equipment more durable and reliable for long periods of time.
Bus duct current level: 400A～6300A
Rated current of plug-in box unit: 16A～1250A
Rated working voltage: 1000V
Protection level: IP68
The product complies with: GB7251.2 and IEC61439-6
Advantage
Integral casting of synthetic resin with high hardness, high density and high dielectric strength
With four-proof functions: fireproof, waterproof and explosion-proof
High short circuit strength and strong overload capability
Lifetime maintenance-free, service life 50 years
application
This product can be used underwater for a long time and is often used in special occasions, such as ditches, underwater, open air, high humidity, high acid and alkali components and other harsh electrical environments. It is widely used in the shipbuilding industry and petrochemical industry.
