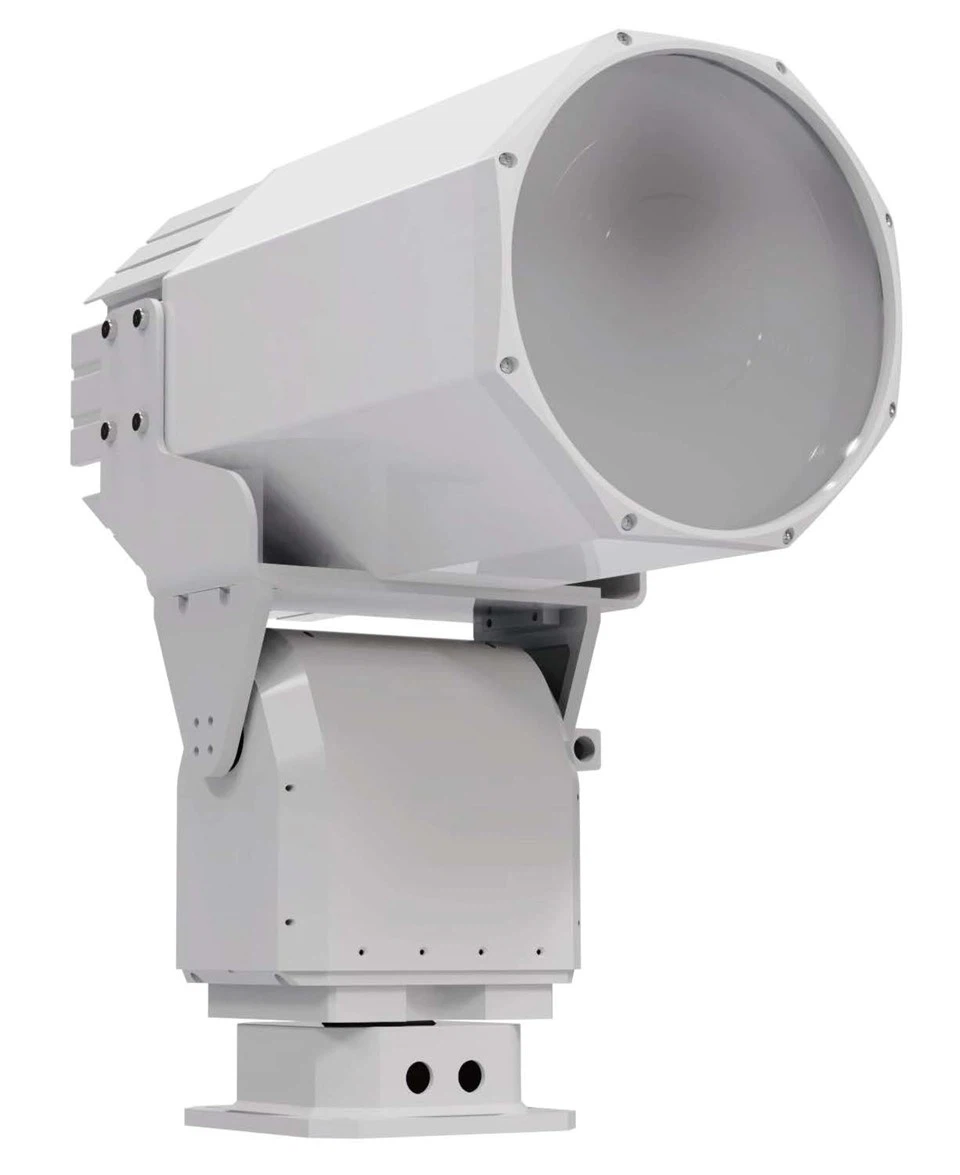

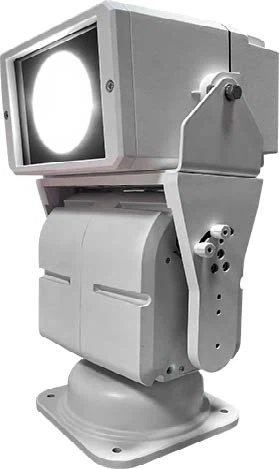

Hydget LED Marine Searchlight: Illuminating Every Corner
In the realm of modern marine operations and safety assurance, Hydget's LED marine searchlight stands out as an indispensable tool, delivering exceptional performance and reliability. Whether for national defense, military missions, water conservation, or maritime rescue, this searchlight provides powerful illumination support.
Outstanding Performance
Hydget's searchlight offers two power options: 240W and 300W, with a luminous flux of up to 1000 lumens and an irradiation distance of 2000 meters (1 LUX). This ensures clear visibility in various environments. Its unique beam angles of 3.5° and 2.5° allow for concentrated and intense light, making it ideal for long-distance illumination needs.
Intelligent Design
Equipped with advanced auto-scan functionality and user programmability, the Hydget searchlight can be flexibly adjusted to meet specific requirements. Its 360° continuous horizontal rotation design, combined with an auto-return to home position feature, enhances operational convenience and efficiency. The advanced proportional-speed control technology ensures smooth beam movement under different conditions.
Durable and Energy-Efficient
Constructed from marine-grade aluminum and stainless steel, with a salt-resistant powder coat finish, this searchlight is built to withstand harsh environments. Compared to traditional halogen lamps, Hydget's LED lights consume over 75% less power and boast a lifespan of tens of thousands of hours, significantly reducing replacement costs and increasing reliability.
Whether on large surface warships or in oil field expeditions and wharf illumination, Hydget's LED marine searchlight offers unparalleled lighting experiences. Choose Hydget for a safer, more reliable journey every time.
Features
- Protection class: IP66
- Power: 240W / 300W available
- Luminous flux: ≥1000Lm
- Irradiation distance: ≥2000M (1LUX)
- Slip-rings provide continuous 360° horizontal rotation with no stop points
- Auto-return to home position
- Beam angle: 3.5° / 2.5°
- Auto-scan with user programmability
- Advanced proportional-speed control
- Materials: marine grade aluminum and stainless steel with salt-resistant powder coat finish
- Lower power consumption: LED's consume 75% or more less power than Halogen lamps
- Longer life: LED's last tens-of-thousands of hours compared to approximately 250 to 750 hours
- depending upon the Halogen lamp. This reduces lamp replacement costs, increases reliability
- Approved for temperatures down to -35°C and up to +55°C
Applications
- National defense
- Marine
- Military
- Water conservation
- Expedition and oil field
- Wharf
- Large surface warship
- Maritime search and rescue
Specifications
| Model | TB-SL240WCH3 | TB-SL300WCH3 | TB-SL240WAQ3 | TB-SL300WAQ3 | |
| Light Source | LED | LED | LED | LED | |
| Light Information |
Power Consumption | 240W | 300W | 240W | 300W |
| Color Temperature | 6500K | ||||
| Input Voltage | AC100 ~ 277V (50/60Hz) | ||||
| Working Temperature | -35°C～+55°C | ||||
| IP Rating | IP66 | ||||
| Lifespan | >30,000 hours | ||||
| Beam Angle | 3.5° | 3.5° | 2.5° | 2.5° | |
| Beam Distance | ≥1000m (1LUX) | ≥1000m (1LUX) | ≥2000m (1LUX) | ≥2000m (1LUX) | |
| Housing Material | 1070 Pure aluminum cold forging, with salt-resistant, scratch-resistant white powder coat finish |
||||
| Weight | 25Kg | 40Kg | 25Kg | 40Kg | |
| Cloud Platform (Optional) |
Adjustable Speed | Horizontal: 0.1°～25°/S, vertical 0.1°～15°/S | |||
| Adjustable Angle | Horizontal: 0～180°or 0～360°, vertical +30°～-30°, or customizable | ||||
| Preset Position | 200pcs | ||||
| Repeated Positioning Accuracy | ±0.2° | ||||
| Communication Protocol | Pelco-D, Pelco-P for option | ||||
| Communication Baud Bate | 2400 / 4800 / 9600 / 9200 bps for option | ||||
| Communication Interface | RS485 / RS422 | ||||
| Communication Interface | / | 60W | / | 60W | |
