High Bay (Series)

Why Choose This High Bay (Series)?

A. This High Bay (Series) of products offers a complete range of certified explosion-proof lighting solutions. IP ratings cover IP66/IP67/IK08 (Glass Cover)/IK10 (with Wire Guard)/1000 Hours Salt Spray/5G Vibration.

B. These High Bay (Series) products bring together years of research and design experience, a technical knowledge base, advanced in-house testing facilities, high-capacity manufacturing, and quality assurance systems to serve industrial customers worldwide.

C. They are suitable for various hazardous environments, including but not limited to the petrochemical industry, chemical industry, painting industry, wine industry, food industry, mining locations, and marine locations.

D. The products boast top safety, high quality, and long lifespan. They fully comply with UL1598/UL1598A/UL844/IECEx/ATEX/ABS/DNV/API Spec Q1 certification requirements.

E. They are suitable for petrochemical, marine, oil and gas, aerospace, food, metal, and other harsh environments.

What is High Bay (Series)?

High bay light is a lighting fixture used in high-rise spaces such as warehouses, factories, etc. It has high lighting intensity and a wide range of illumination, and is suitable for lighting needs in large areas.

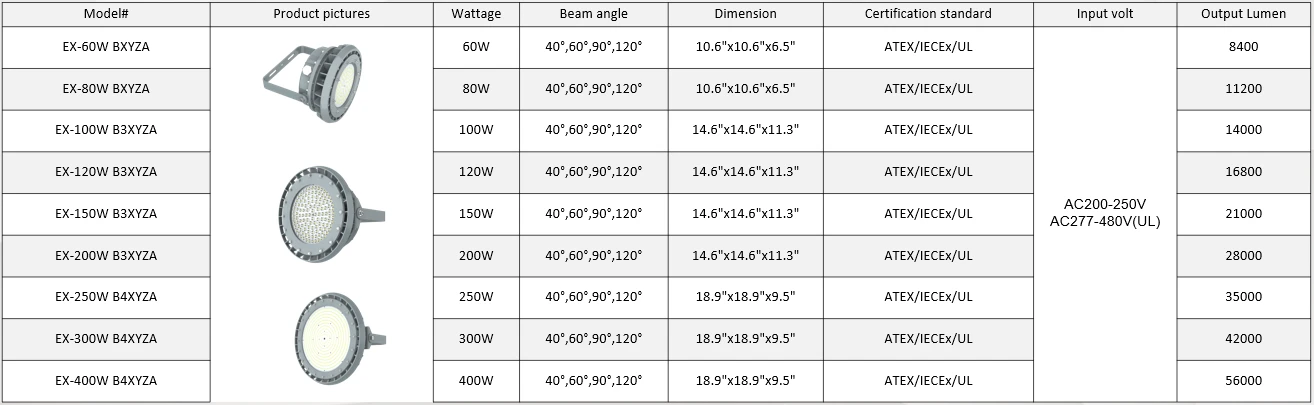

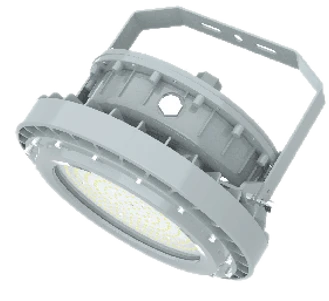

EX-High Bay (Series B)

EX-B, B2, B3 & B4 series

High Bay (Series C)

EX-C, EX-C2 & EX-C3 series

lATEX Standard: II 2 G D Ex db llB T6...T3 Gb, Ex tb IIC T80°C...T195°C Db

lIECEx marking: Ex db IIB T6…T3 Gb, Ex tb IIIC T80°C…T195°C Db, Zone 21 & Zone 22

lUL 844 marking: ETL certification,conform to UL1598 / UL1598A / UL844; Class l, Division 1, Groups C,D; Class l,Division 2, Groups A,B,C,D; Class II Division 1, Groups E,F,G; Class ll,Division 2, Groups F,G; Class lll

lRating: 10W to 280W Ambient range: -40°C - +60°C

lMaterial: Die-casting Aluminum body+Tempered glass lens

lDriver: Meanwell

lCable entry: 3/4''NPT or M25
