40.5-550kV Outdoor HV AC Disconnector

The Voltages of its Disconnectors are rated from 40.5kV ~ 550kV with various structures to facilitate the erection at site: such as vertical retractable type, horizontal retractable type, 2-column horizontal rotating type, "V" shape rotating type and 3-column horizontal rotating type and 2-column vertical rotating type, some othem includign earthing switches (JW) for different voltage classes.

Applied Standards:

• GB 1985-2014 HV AC Disconnector and Earthing Switch;

• GB/T 11022-2011 General Technical Requirements on the Standards of HV AC Switchgear and Controlgear;

• DL/T 486-2010 HV AC Disconnector and Earthing Switch;

• IEC 62271-1 High-voltage switchgear and controlgear - Part 1: Common specifications;

• IEC 62271-102 High-voltage switchgear and controlgear–Part 102: Alternating current disconnectors and earthing switches.

Part Ⅰ: Normal Service Conditions

1. Altitude: 1000m, not exceeding 3000m under special conditions;

2. Ambient Temperature: -40℃～ 45℃;

3. Wind Velocity: 40m/s (wind pressure 700Pa)

4. Anti-Seismic Capability: reach AG3 (0.3g), AG5 (0.5g) level;

5. Pollution Class: III Class (heavily polluted); IV Class, under special environment;

6. Max. Icing Thickness: 20mm;

7. Max. Radiance from Sun: 1000W/m²;

8. Average Humidity: daily less than 95%，monthly less than 90%.

Note: If the product is used under extremely adverse conditions (exceeding above limits), please consult with us.

Part Ⅱ: Main Characteristics

Optimized design in dimension of phase-to-phase and longitudinal length;

The conductive part is made of aluminum alloyed material with high strength and light weight;

Transmission mechanism part and balanced spring system；

Hot-dip galvanizing treatment for metal parts with excellent anti-corrosion capacity;

High-tension support insulators (including porcelain and composite type) are applied;

Different configurations can be adopted to meet different service conditions.

JW Series ES

JW Series: the main blade has two types, one is single-column, vertical open type, the other is single-column, vertical retractable type; Single insulated break in vertical direction is formed when the blade is in open position.

Part Ⅲ: Main Technical Data

Technical Data			Unit	2-column, single center break, horizontal rotating type					2-column, single break, V-shape rotating type		3-column/singe pole, double breaks, horizontal rotating type				Single-arm main blade, vertical retractable structure for type I and Single-arm main blade, horizontal retractable type II						Double-arm main blade, vertical retractable structure
				40.5	72.5	126	145	252	72.5	126	252	363	420	550	126	145	252	363	420	550	126	252	550
Rated Voltage			kV	40.5	72.5	126	145	252	40.5	72.5	252	363	420	550	126	145	252	363	420	550	126	252	550
Rated Frequency			Hz	50	50	50	50\60	50\60	50	50	50	50	50	50	50	50	50	50	50	50	50	50	50
Rated Current			A	2500 ~ 4000	2000 ~ 4000	1250 ~ 3150	2000 ~ 3150	2500 ~ 4000	2500	2000	3150 ~ 5000	3150 ~ 5000	4000	6000	2000	2500	2500 ~ 5000	4000 ~ 5000	4000	4000	3150	4000	4000
Rated Short-time Withstand Current and Duration			kA/s	40/3, 50/3	40/3, 50/4	40/3	40/3, 50/3	50/3, 63/3	40/3	40/3	50/3\63/3	63/3	63/3	63/3	40/3	40/3	50/3,63/3	63/3	63/3	63/3	40/3	63/3	63/3
Rated Peak Withstand Current			kA	100, 125	100, 125	100	100, 125	125, 160	100	100	125\160	160	160	160	100	104	125\160	160	160	160	100	160	160
Rated Power Frequency Withstand Current (r.m.s.)		To Earth	kV	95	160, 181	230	275	460	160	230	460	510	652	740	230	311	460	510	652	740	230	460	740
		Across Breaks		118	200, 226	230 + 70	315	530	200	230 + 73	530	580	615 + 268	740 + 315	230 + 70	311 + 45	460 + 145	510 + 210	615 + 268	740 + 315	230 + 70	460 + 145	740 + 315
Rated Lightning Impulse Withstand Voltage (peak)		To Earth	kV	185	350, 396	550	650	1050	350	550	1050	1175	1502	1675	550	735	1050	1175	1502	1675	550	1050	1675
		Across Breaks		215	410, 463	550 + 100	750	1200	410	550 + 103	1200	1175 + 205	1502 + 379	1675 + 450	550 + 100	735 + 113	1050 + 200	1175 + 295	1502 + 379	1675 + 450	550 + 100	1050 + 200	1675 + 450
Rated Lightning Impulse Withstand Voltage (peak)		To Earth	kV								/	950	1142	1300	/	/	/	950	1142	1300	/	/	1300
		Across reaks									/	850 + 295	1060 + 368	1300 + 450	/	/	/	850 + 295	1060 + 368	1300 + 450	/	/	1175 + 450
Motor Type				CJ6A\CJ6B					CJ6B		CJ6A\CJ6U				CJ6A\CJ6U						CJ6A\CJ6U
Structure															Type I			Type II

Technical Data CJ6 Series Motor-operating Mechanism

Part Ⅳ: CJ6 Series Motor-operating Mechanism

CJ6 series motor-operating mechanism: light weight, compact construction, easy operation, water-proof and dust-proof function, stainless riveted enclosure with IP54 degree and above.

1. Electric interlock function can be achieved between different operating mechanisms;

2. 2-level worm gearing transmission system ensures reliable and stable operation; realize self-locking

function of all our disconnector and earthing switches;

3. The mechanism adopts fully enclosed gearbox with low noise and maintenance-free advantages;

4. All control components are supplied by renowned companies.

Part Ⅴ: Drawing

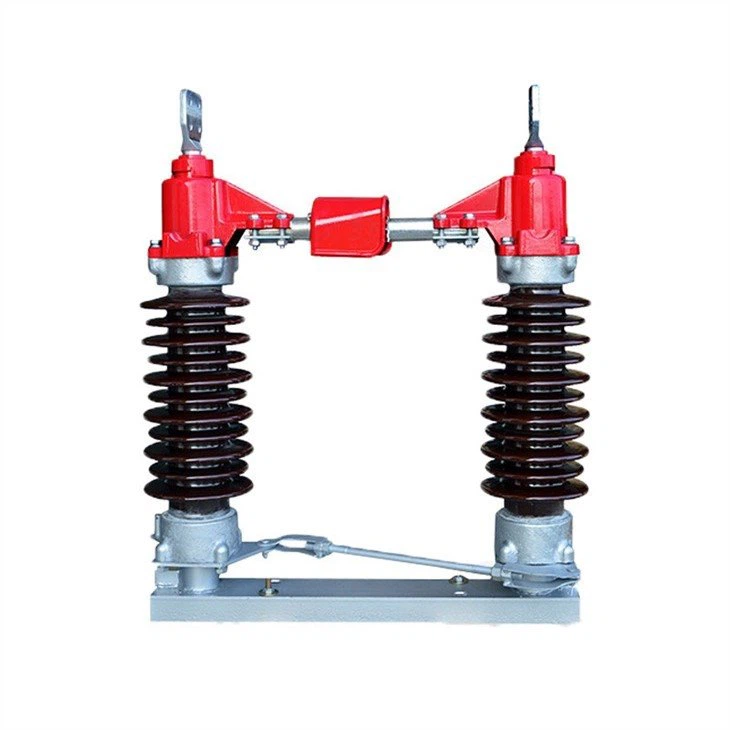

a) 2-column, single center break, horizontal rotating type series DS
