Hydget Professional MPPT Solar Charge Controller - 30A/40A/50A/60A/80A/100A 12V/24V Auto with LCD Display & Dual USB Ports
Product Overview
Maximize your solar energy efficiency with Hydget's advanced MPPT Solar Charge Controller. Engineered for both 12V and 24V systems, this controller uses Maximum Power Point Tracking (MPPT) technology to deliver up to 30% more power than conventional PWM controllers. Featuring a real-time LCD display, dual USB ports, and robust protective functions, it's the ideal solution for RVs, boats, cabins, and off-grid power systems.
Key Features:
✅ Smart MPPT Technology - Dynamically optimizes solar panel output for maximum energy harvest
✅ Dual USB Ports (5V/2A) - Charge smartphones, tablets, and USB devices directly
✅ Clear LCD Display - Real-time monitoring of voltage, current, power, and charge status
✅ Auto Voltage Detection - Seamlessly switches between 12V/24V battery systems
✅ Comprehensive Protections - Overcharge/over-discharge, short-circuit, reverse polarity, and overload protection
✅ Load Control - Programmable ON/OFF timing for connected devices
Technical Specifications
| Parameter | Details |
|---|---|
| Technology | MPPT (Maximum Power Point Tracking) |
| Rated Current | 30A/40A/50A/60A/80A/100A (select model during purchase) |
| System Voltage | 12V / 24V Auto-Detection |
| USB Output | Dual Ports, 5V/2.4A each |
| Display | Backlit LCD with parameter visualization |
| Protections | Over-charge/discharge, short-circuit, reverse polarity, overload |
| Certifications | CE, FCC, RoHS Compliant |
| Warranty | 6 months |
| Operating Temp | -35°C to +55°C |

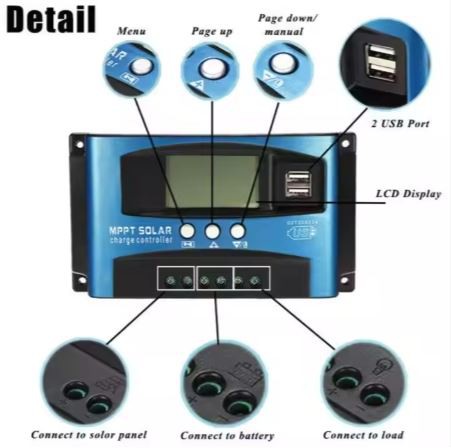

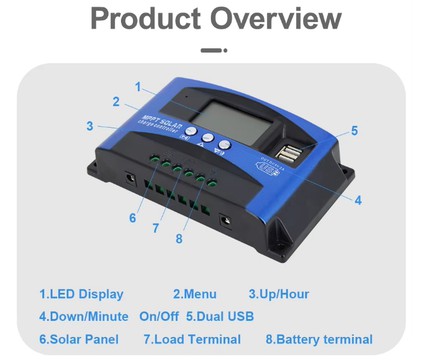

Connectivity Ports:
PV Input: Connect solar panels (Max 100VDC)
Battery Terminals: 12V/24V lead-acid batteries
Load Terminals: DC appliances (lights, fans, etc.)
Dual USB Ports: Charge mobile devices directly

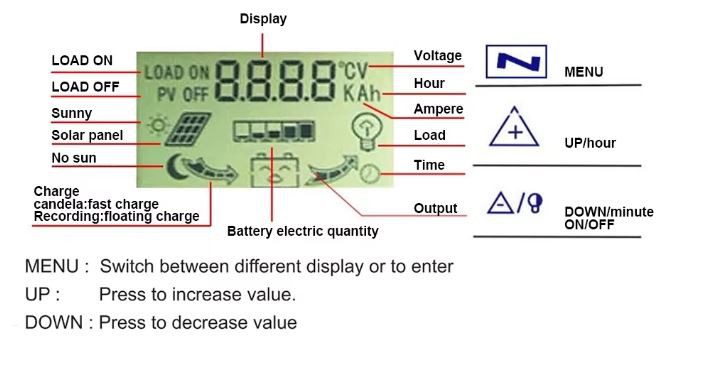

Controller Interface Guide
LCD Display - Shows PV voltage, battery status, current, and error codes
MENU Button - Cycle through display modes or enter settings
UP Button - Increase values / Set hours
DOWN Button - Decrease values / Set minutes
ON/OFF Button - Manual load control
Display Icons:
☀️ Solar charging status (bulk/absorption/float)
🔋 Battery level indicator (25%/50%/75%/100%)
⚡ Load connection status (ON/OFF)
⚠️ Fault warning alerts
Package Contents
1 × Hydget MPPT Solar Charge Controller
1 × Installation Guide
Mounting hardware
Why Choose Hydget?
🔋 10,000+ Hour Lifespan - Military-grade components for extreme durability
🔌 100% AOI Tested - Every unit undergoes automated optical inspection
🌍 24/7 Global Support - Technical assistance in English
⚡ 30% More Efficient - Outperforms basic PWM controllers in all conditions
Additional Note: Explore our full range of sustainable energy solutions and compatible accessories at Hydget Solar Products to build your complete solar power system.
