CY Cable Copper Conductor PVC/XLPE Insulated and Sheathed Control Cable is suitable for the connection line of AC rated voltage 450/750V and below electrical instruments and transmission line of automatic control system, with excellent performance of oil resistance, water resistance, wear resistance, acid and alkali resistance and various corrosive gases, aging resistance, non-combustion, etc. It is suitable for metallurgy, electric power, petrochemical and other industries.
There are two types of insulation materials, PVC and XLPE.

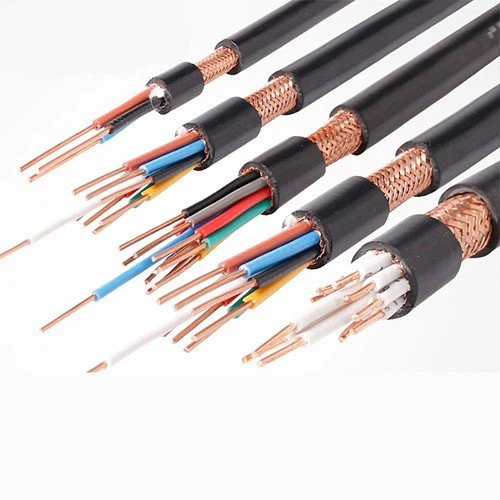

PVC insulated control cables include the following models: KVVP, KVVP2, KVVP3, KVVP22 and KVVP2-22.
XLPE insulated control cables include the following models: KYJVP, KYJVP2, KYJVP3, KYJVP2-22, KYJYP, KYJYP2, KYJYP3, KYJYP2-23
Part Ⅰ: Operating Characteristics
1. Rated power-frequency voltage Uo/U: 450/750V or 0.6/1 kV
2. Conductor: oxygen-free copper
3. Insulation: PVC/XLPE
4. Sheathing: PVC

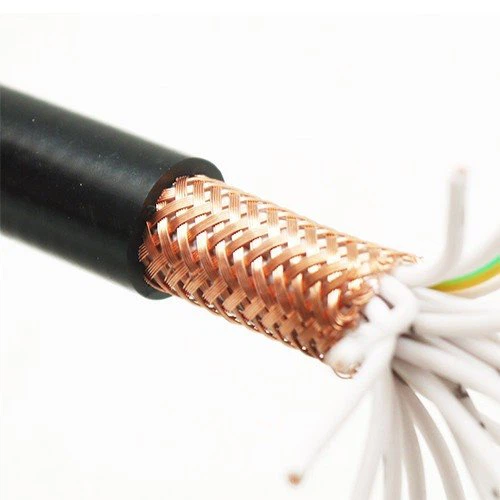

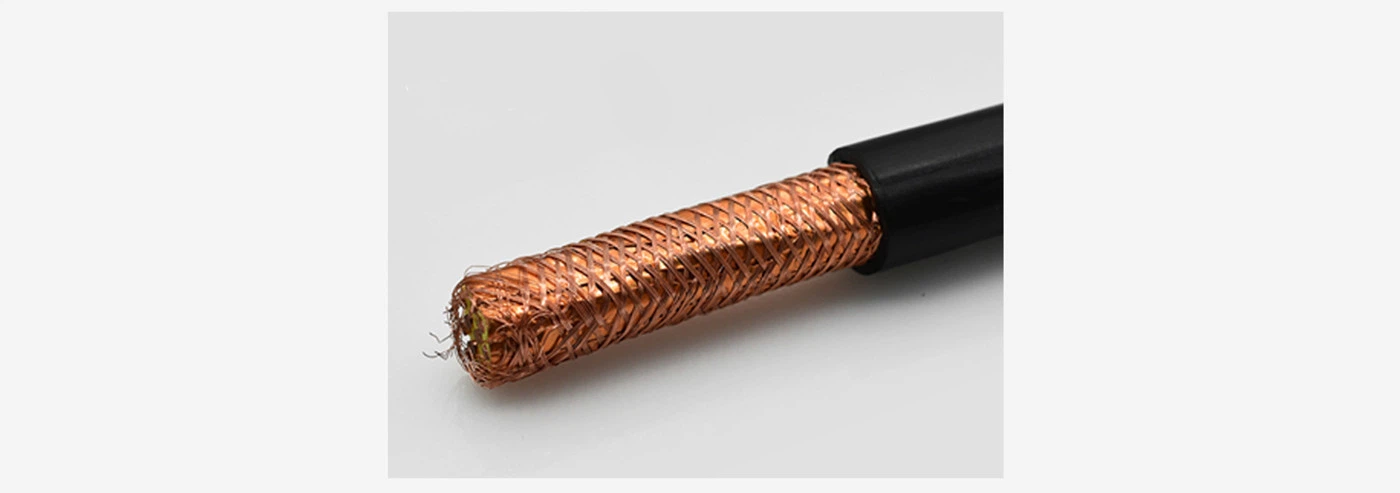

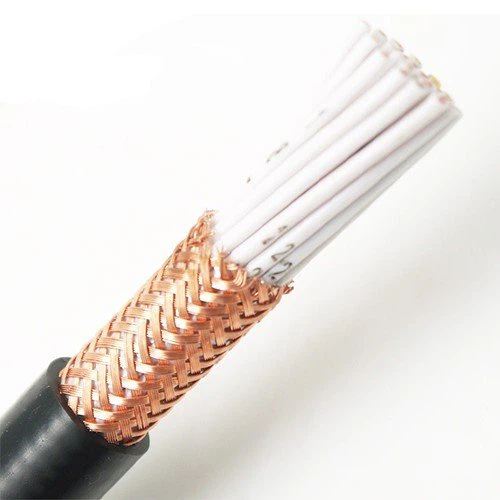

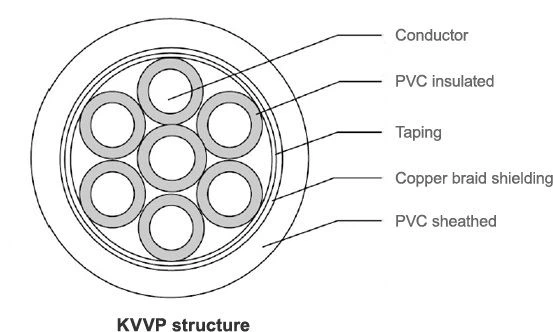

5. Screen: Braiding Screen (KVVP, KYJVP, KYJVP2, KYJYP, KYJYP2)

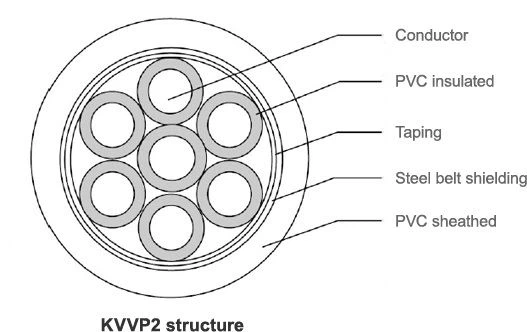

Copper Tape Screen (KVVP2, KVVP2-22, KYJVP2-22, KYJYP2-23)
Aluminum-plastic Composite Tape Screen (KVVP3, KYJVP3, KYJYP3)
Copper Wire Screen (KVVP22)

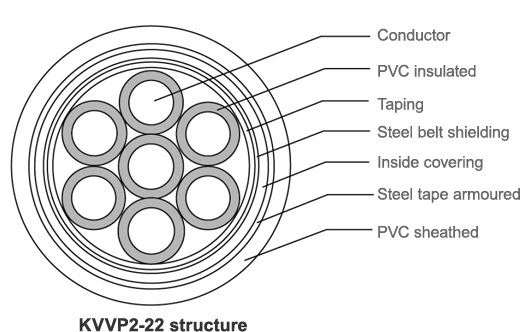

6. Armored: Steel tape Armored (KVVP22, KVVP2-22, KYJVP2-22, KYJYP2-23)
7. Max. admissible operating temperature of conductor: 70℃ (PVC insulation), 90℃ (XLPE insulation)
8. The installation temperature should be not over 0℃, if the ambient temperature lower than 0℃, the cable should be preheated.
9. The bending radius of cable: armoured, copper tape or aluminum-plastic composite tape screen cable is not less than 12 times diameter of cable.
10. Standards: The product is manufactured according to the standard of GB/T9330, Q/320282DCE005, GB/T19666, BS5308-1:19, BS5308-2:1986.
Part Ⅱ: Range of Production
| Type | Rated voltage | Nominal cross section of conductor (mm2) | ||||||||
| 0.5 | 0.75 | 1 | 1.5 | 2.5 | 4 | 6 | 10 | |||
| No. of cores | ||||||||||
| KVVP, KVVP2, KVVP3, KVVP22, KVVP2-22, KYJVP | 450/750V & 0.6/1kV | - | 2~61 | 2~14 | 2~10 | |||||
| KYJVP2, KYJVP3 | - | 4~61 | ||||||||
| KYJVP2-22, KYJVP2-23 | 7~61 | 2~61 | ||||||||

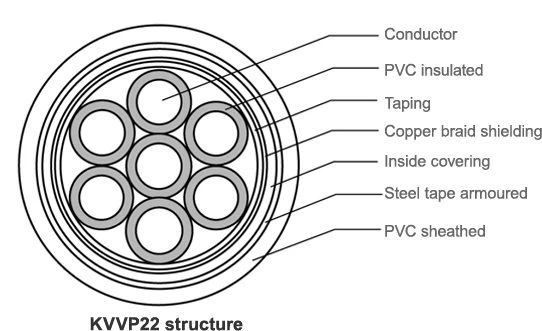

Part Ⅲ: Construction
| Specificication | Type of conductor | Insulation thickness mm | Sheath thickness mm | Cable approx.dia. mm | Cable approx.weight kg/km | ||||
| 450/750V | 0.6/1kV | 450/750V | 0.6/1kV | 450/750V | 0.6/1kV | 450/750V | 0.6/1kV | ||
| 2×0.75 | 1 | 0.6 | 0.8 | 1.2 | 1.8 | 7.8 | 9.8 | 78 | 114 |
| 2×1.0 | 1 | 0.6 | 0.8 | 1.2 | 1.8 | 8.2 | 10.2 | 87 | 124 |
| 2×1.5 | 1 | 0.7 | 0.8 | 1.2 | 1.8 | 9.0 | 10.6 | 109 | 142 |
| 2×2.5 | 1 | 0.8 | 0.8 | 1.2 | 1.8 | 10.2 | 11.4 | 146 | 173 |
| 2×4 | 1 | 0.8 | 1.0 | 1.2 | 1.8 | 11.2 | 13.2 | 187 | 236 |
| 2×6 | 1 | 0.8 | 1.0 | 1.2 | 1.8 | 12.2 | 14.2 | 239 | 292 |
| 2×10 | 2 | 1.0 | 1.0 | 1.5 | 1.8 | 16.3 | 16.9 | 403 | 425 |
| 3×0.75 | 1 | 0.6 | 0.8 | 1.2 | 1.8 | 8.2 | 10.2 | 91 | 131 |
| 3×1.0 | 1 | 0.6 | 0.8 | 1.2 | 1.8 | 8.6 | 10.6 | 102 | 144 |
| 3×1.5 | 1 | 0.7 | 0.8 | 1.2 | 1.8 | 9.4 | 11.1 | 132 | 167 |
| 3×2.5 | 1 | 0.8 | 0.8 | 1.2 | 1.8 | 10.7 | 11.9 | 180 | 209 |
| 3×4 | 1 | 0.8 | 1.0 | 1.2 | 1.8 | 11.8 | 13.9 | 236 | 291 |
| 3×6 | 1 | 0.8 | 1.0 | 1.5 | 1.8 | 13.5 | 15.1 | 326 | 374 |
| 3×10 | 2 | 1.0 | 1.0 | 1.5 | 1.8 | 17.3 | 17.9 | 521 | 543 |
| 4×0.75 | 1 | 0.6 | 0.8 | 1.2 | 1.8 | 8.8 | 10.9 | 107 | 152 |
| 4×1.0 | 1 | 0.6 | 0.8 | 1.2 | 1.8 | 9.2 | 11.4 | 122 | 169 |
| 4×1.5 | 1 | 0.7 | 0.8 | 1.2 | 1.8 | 10.2 | 11.9 | 158 | 198 |
| 4×2.5 | 1 | 0.8 | 0.8 | 1.2 | 1.8 | 11.6 | 12.8 | 220 | 252 |
| 4×4 | 1 | 0.8 | 1.0 | 1.5 | 1.8 | 13.5 | 15.1 | 310 | 362 |
| 4×6 | 1 | 0.8 | 1.0 | 1.5 | 1.8 | 14.8 | 16.3 | 411 | 461 |
| 4×10 | 2 | 1.0 | 1.0 | 1.5 | 1.8 | 18.9 | 19.5 | 653 | 678 |
| 5×0.75 | 1 | 0.6 | 0.8 | 1.2 | 1.8 | 9.4 | 11.7 | 124 | 175 |
| 5×1.0 | 1 | 0.6 | 0.8 | 1.2 | 1.8 | 10.0 | 12.2 | 143 | 195 |
| 5×1.5 | 1 | 0.7 | 0.8 | 1.2 | 1.8 | 11.0 | 12.8 | 187 | 231 |
| 5×2.5 | 1 | 0.8 | 0.8 | 1.5 | 1.8 | 12.7 | 13.9 | 263 | 297 |
| 5×4 | 1 | 0.8 | 1.0 | 1.5 | 1.8 | 14.7 | 16.4 | 376 | 430 |
| 5×6 | 1 | 0.8 | 1.0 | 1.5 | 1.8 | 16.1 | 17.7 | 495 | 553 |
| 5×10 | 2 | 1.0 | 1.0 | 1.7 | 1.8 | 21.1 | 21.3 | 823 | 833 |
| 6×0.75 | 1 | 0.6 | 0.8 | 1.2 | 1.8 | 10.1 | 12.5 | 142 | 198 |
| 6×1.0 | 1 | 0.6 | 0.8 | 1.2 | 1.8 | 10.7 | 13.1 | 165 | 223 |
| 6×1.5 | 1 | 0.7 | 0.8 | 1.2 | 1.8 | 11.9 | 13.7 | 217 | 265 |
| 6×2.5 | 1 | 0.8 | 0.8 | 1.5 | 1.8 | 14.4 | 15.0 | 330 | 348 |
| 6×4 | 1 | 0.8 | 1.0 | 1.5 | 1.8 | 15.9 | 17.7 | 440 | 501 |
| 6×6 | 1 | 0.8 | 1.0 | 1.5 | 1.8 | 17.4 | 19.2 | 581 | 647 |
| 6×10 | 2 | 1.0 | 1.0 | 1.7 | 1.8 | 23.0 | 23.2 | 969 | 979 |
| 7×0.75 | 1 | 0.6 | 0.8 | 1.2 | 1.8 | 10.1 | 12.5 | 148 | 204 |
| 7×1.0 | 1 | 0.6 | 0.8 | 1.2 | 1.8 | 10.7 | 13.1 | 172 | 230 |
| 7×1.5 | 1 | 0.7 | 0.8 | 1.2 | 1.8 | 11.9 | 13.7 | 228 | 276 |
| 7×2.5 | 1 | 0.8 | 0.8 | 1.5 | 1.8 | 14.4 | 15.0 | 348 | 366 |
| 7×4 | 1 | 0.8 | 1.0 | 1.5 | 1.8 | 15.9 | 17.7 | 469 | 529 |
| 7×6 | 1 | 0.8 | 1.0 | 1.5 | 1.8 | 17.4 | 19.2 | 624 | 690 |
| 7×10 | 2 | 1.0 | 1.0 | 1.7 | 1.8 | 23.0 | 23.2 | 1038 | 1048 |
| 8×0.75 | 1 | 0.6 | 0.8 | 1.2 | 1.8 | 10.8 | 13.3 | 170 | 233 |
| 8×1.0 | 1 | 0.6 | 0.8 | 1.2 | 1.8 | 11.5 | 14.0 | 198 | 264 |
| 8×1.5 | 1 | 0.7 | 0.8 | 1.5 | 1.8 | 12.8 | 14.7 | 264 | 323 |
| 8×2.5 | 1 | 0.8 | 0.8 | 1.5 | 1.8 | 15.5 | 16.1 | 403 | 424 |
| 8×4 | 1 | 0.8 | 1.0 | 1.5 | 1.8 | 17.1 | 19.0 | 544 | 615 |
| 8×6 | 1 | 0.8 | 1.0 | 1.5 | 1.8 | 18.8 | 20.8 | 727 | 817 |
| 8×10 | 2 | 1.0 | 1.0 | 1.7 | 1.8 | 24.9 | 25.1 | 1215 | 1226 |
| 10×0.75 | 1 | 0.6 | 0.8 | 1.2 | 1.8 | 12.4 | 15.3 | 204 | 284 |
| 10×1.0 | 1 | 0.6 | 0.8 | 1.5 | 1.8 | 13.8 | 16.1 | 255 | 322 |
| 10×1.5 | 1 | 0.7 | 0.8 | 1.5 | 1.8 | 15.5 | 16.9 | 344 | 388 |
| 10×2.5 | 1 | 0.8 | 0.8 | 1.5 | 1.8 | 17.9 | 18.5 | 488 | 511 |
| 10×4 | 1 | 0.8 | 1.0 | 1.7 | 1.8 | 20.3 | 22.2 | 678 | 759 |
| 10×6 | 1 | 0.8 | 1.0 | 1.7 | 1.8 | 22.4 | 24.2 | 919 | 993 |
| 10×10 | 2 | 1.0 | 1.0 | 2.0 | 1.8 | 29.8 | 29.6 | 1518 | 1505 |
| 12×0.75 | 1 | 0.6 | 0.8 | 1.5 | 1.8 | 12.8 | 15.7 | 225 | 310 |
| 12×1.0 | 1 | 0.6 | 0.8 | 1.5 | 1.8 | 14.2 | 16.5 | 282 | 353 |
| 12×1.5 | 1 | 0.7 | 0.8 | 1.5 | 1.8 | 15.9 | 17.4 | 383 | 429 |
| 12×2.5 | 1 | 0.8 | 0.8 | 1.5 | 1.8 | 18.4 | 19.0 | 547 | 571 |
| 12×4 | 1 | 0.8 | 1.0 | 1.7 | 1.8 | 21.0 | 22.9 | 780 | 854 |
| 12×6 | 1 | 0.8 | 1.0 | 1.7 | 1.8 | 23.1 | 25.0 | 1045 | 1125 |
| 14×0.75 | 1 | 0.6 | 0.8 | 1.5 | 1.8 | 14.0 | 16.4 | 273 | 349 |
| 14×1.0 | 1 | 0.6 | 0.8 | 1.5 | 1.8 | 14.9 | 17.3 | 326 | 400 |
| 14×1.5 | 1 | 0.7 | 0.8 | 1.5 | 1.8 | 16.7 | 18.2 | 436 | 488 |
| 14×2.5 | 1 | 0.8 | 0.8 | 1.7 | 1.8 | 19.3 | 19.9 | 628 | 653 |
| 14×4 | 1 | 0.8 | 1.0 | 1.7 | 1.8 | 22.1 | 24.0 | 896 | 981 |
| 14×6 | 1 | 0.8 | 1.0 | 1.7 | 1.8 | 24.3 | 26.2 | 1206 | 1298 |
| 16×0.75 | 1 | 0.6 | 0.8 | 1.5 | 1.8 | 14.7 | 17.2 | 308 | 385 |
| 16×1.0 | 1 | 0.6 | 0.8 | 1.5 | 1.8 | 15.7 | 18.1 | 362 | 442 |
| 16×1.5 | 1 | 0.7 | 0.8 | 1.5 | 1.8 | 17.5 | 19.1 | 486 | 542 |
| 16×2.5 | 1 | 0.8 | 0.8 | 1.7 | 1.8 | 20.9 | 21.1 | 734 | 743 |
| 19×0.75 | 1 | 0.6 | 0.8 | 1.5 | 1.8 | 15.4 | 18.0 | 344 | 428 |
| 19×1.0 | 1 | 0.6 | 0.8 | 1.5 | 1.8 | 16.4 | 19.0 | 406 | 494 |
| 19×1.5 | 1 | 0.7 | 0.8 | 1.5 | 1.8 | 18.4 | 20.0 | 548 | 609 |
| 19×2.5 | 1 | 0.8 | 0.8 | 1.7 | 1.8 | 21.9 | 22.1 | 830 | 840 |
| 24×0.75 | 1 | 0.6 | 0.8 | 1.5 | 1.8 | 17.7 | 20.7 | 421 | 524 |
| 24×1.0 | 1 | 0.6 | 0.8 | 1.5 | 1.8 | 18.9 | 22.0 | 500 | 621 |
| 24×1.5 | 1 | 0.7 | 0.8 | 1.7 | 1.8 | 21.8 | 23.2 | 710 | 766 |
| 24×2.5 | 1 | 0.8 | 0.8 | 1.7 | 1.8 | 25.4 | 25.6 | 1030 | 1040 |
| 27×0.75 | 1 | 0.6 | 0.8 | 1.5 | 1.8 | 18.1 | 21.2 | 458 | 581 |
| 27×1.0 | 1 | 0.6 | 0.8 | 1.5 | 1.8 | 19.3 | 22.4 | 544 | 674 |
| 27×1.5 | 1 | 0.7 | 0.8 | 1.7 | 1.8 | 22.1 | 23.7 | 775 | 836 |
| 27×2.5 | 1 | 0.8 | 0.8 | 1.7 | 1.8 | 25.9 | 26.1 | 1130 | 1141 |
| 30×0.75 | 1 | 0.6 | 0.8 | 1.5 | 1.8 | 18.7 | 21.9 | 497 | 629 |
| 30×1.0 | 1 | 0.6 | 0.8 | 1.5 | 1.8 | 19.9 | 23.2 | 592 | 731 |
| 30×1.5 | 1 | 0.7 | 0.8 | 1.7 | 1.8 | 23.0 | 24.5 | 845 | 909 |
| 30×2.5 | 1 | 0.8 | 0.8 | 1.7 | 1.8 | 26.8 | 27.0 | 1235 | 1247 |
| 37×0.75 | 1 | 0.6 | 0.8 | 1.7 | 1.8 | 20.4 | 23.5 | 604 | 740 |
| 37×1.0 | 1 | 0.6 | 0.8 | 1.7 | 1.8 | 21.9 | 24.9 | 735 | 864 |
| 37×1.5 | 1 | 0.7 | 0.8 | 1.7 | 1.8 | 24.7 | 26.3 | 1005 | 1081 |
| 37×2.5 | 1 | 0.8 | 0.8 | 2.0 | 1.8 | 28.9 | 29.3 | 1480 | 1505 |
| 44×0.75 | 1 | 0.6 | 0.8 | 1.7 | 1.8 | 22.8 | 26.2 | 720 | 865 |
| 44×1.0 | 1 | 0.6 | 0.8 | 1.7 | 1.8 | 24.4 | 27.8 | 860 | 1012 |
| 44×1.5 | 1 | 0.7 | 0.8 | 1.7 | 1.8 | 27.6 | 29.6 | 1179 | 1281 |
| 44×2.5 | 1 | 0.8 | 0.8 | 2.0 | 2.0 | 33.2 | 33.2 | 1820 | 1820 |
| 48×0.75 | 1 | 0.6 | 0.8 | 1.7 | 1.8 | 23.2 | 26.6 | 768 | 922 |
| 48×1.0 | 1 | 0.6 | 0.8 | 1.7 | 1.8 | 24.8 | 28.2 | 919 | 1081 |
| 48×1.5 | 1 | 0.7 | 0.8 | 1.7 | 1.9 | 28.0 | 30.1 | 1264 | 1372 |
| 48×2.5 | 1 | 0.8 | 0.8 | 2.0 | 2.0 | 33.7 | 33.7 | 1953 | 1953 |
| 52×0.75 | 1 | 0.6 | 0.8 | 1.7 | 1.8 | 23.8 | 27.3 | 819 | 982 |
| 52×1.0 | 1 | 0.6 | 0.8 | 1.7 | 1.8 | 25.4 | 29.0 | 982 | 1154 |
| 52×1.5 | 1 | 0.7 | 0.8 | 1.7 | 1.9 | 28.8 | 31.1 | 1353 | 1501 |
| 52×2.5 | 1 | 0.8 | 0.8 | 2.0 | 2.0 | 34.6 | 34.6 | 2092 | 2092 |
| 61×0.75 | 1 | 0.6 | 0.8 | 1.7 | 1.9 | 25.1 | 28.9 | 933 | 1120 |
| 61×1.0 | 1 | 0.6 | 0.8 | 1.7 | 1.9 | 26.9 | 30.9 | 1123 | 1332 |
| 61×1.5 | 1 | 0.7 | 0.8 | 2.0 | 2.0 | 31.3 | 33.1 | 1626 | 1731 |
| 61×2.5 | 1 | 0.8 | 0.8 | 2.2 | 2.1 | 37.1 | 36.9 | 2435 | 2420 |
| Specificication | Type of conductor | Insulation thickness mm | Sheath thickness mm | Cable approx.dia. mm | Cable approx.weight kg/km | ||||
| 450/750V | 0.6/1kV | 450/750V | 0.6/1kV | 450/750V | 0.6/1kV | 450/750V | 0.6/1kV | ||
| 2×1.5 | 1 | 0.7 | 0.8 | 1.2 | 1.8 | 8.6 | 9.6 | 104 | 130 |
| 2×2.5 | 1 | 0.8 | 0.8 | 1.2 | 1.8 | 9.8 | 10.8 | 153 | 166 |
| 2×4 | 1 | 0.8 | 1.0 | 1.2 | 1.8 | 10.7 | 11.8 | 194 | 216 |
| 2×6 | 1 | 0.8 | 1.0 | 1.2 | 1.8 | 11.7 | 12.8 | 246 | 270 |
| 2×10 | 2 | 1.0 | 1.0 | 1.5 | 1.8 | 15.7 | 16.2 | 399 | 405 |
| 3×1.5 | 1 | 0.7 | 0.8 | 1.2 | 1.8 | 9.0 | 10.0 | 126 | 155 |
| 3×2.5 | 1 | 0.8 | 0.8 | 1.2 | 1.8 | 10.3 | 11.3 | 187 | 201 |
| 3×4 | 1 | 0.8 | 1.0 | 1.2 | 1.8 | 11.3 | 12.3 | 244 | 270 |
| 3×6 | 1 | 0.8 | 1.0 | 1.2 | 1.8 | 12.4 | 13.4 | 316 | 345 |
| 3×10 | 2 | 1.0 | 1.0 | 1.5 | 1.8 | 16.6 | 17.1 | 517 | 524 |
| 4×0.75 | 1 | 0.6 | 0.8 | 1.2 | 1.8 | 8.2 | 10.3 | 102 | 145 |
| 4×1 | 1 | 0.6 | 0.8 | 1.2 | 1.8 | 8.6 | 10.6 | 117 | 161 |
| 4×1.5 | 1 | 0.7 | 0.8 | 1.2 | 1.8 | 9.7 | 11.2 | 152 | 190 |
| 4×2.5 | 1 | 0.8 | 0.8 | 1.2 | 1.8 | 11.8 | 12.2 | 228 | 243 |
| 4×4 | 1 | 0.8 | 1.0 | 1.2 | 1.8 | 12.9 | 14.3 | 301 | 344 |
| 4×6 | 1 | 0.8 | 1.0 | 1.5 | 1.8 | 14.1 | 15.5 | 394 | 441 |
| 4×10 | 2 | 1.0 | 1.0 | 1.5 | 1.8 | 18.6 | 18.7 | 650 | 657 |
| 5×0.75 | 1 | 0.6 | 0.8 | 1.2 | 1.8 | 8.9 | 11.0 | 119 | 167 |
| 5×1 | 1 | 0.6 | 0.8 | 1.2 | 1.8 | 9.3 | 11.4 | 137 | 187 |
| 5×1.5 | 1 | 0.7 | 0.8 | 1.2 | 1.8 | 11.1 | 12.1 | 194 | 221 |
| 5×2.5 | 1 | 0.8 | 0.8 | 1.2 | 1.8 | 12.7 | 13.2 | 270 | 287 |
| 5×4 | 1 | 0.8 | 1.0 | 1.5 | 1.8 | 14.0 | 15.5 | 360 | 410 |
| 5×6 | 1 | 0.8 | 1.0 | 1.5 | 1.8 | 15.4 | 16.9 | 475 | 530 |
| 5×10 | 2 | 1.0 | 1.0 | 1.7 | 1.8 | 20.3 | 20.4 | 787 | 795 |
| 6×0.75 | 1 | 0.6 | 0.8 | 1.2 | 1.8 | 9.5 | 11.8 | 133 | 185 |
| 6×1 | 1 | 0.6 | 0.8 | 1.2 | 1.8 | 10.0 | 12.2 | 154 | 208 |
| 6×1.5 | 1 | 0.7 | 0.8 | 1.2 | 1.8 | 11.9 | 13.0 | 219 | 249 |
| 6×2.5 | 1 | 0.8 | 0.8 | 1.5 | 1.8 | 13.7 | 14.2 | 307 | 325 |
| 6×4 | 1 | 0.8 | 1.0 | 1.5 | 1.8 | 15.2 | 16.8 | 412 | 467 |
| 6×6 | 1 | 0.8 | 1.0 | 1.5 | 1.8 | 16.7 | 18.3 | 558 | 621 |
| 6×10 | 2 | 1.0 | 1.0 | 1.7 | 1.8 | 22.2 | 22.2 | 928 | 937 |
| 7×0.75 | 1 | 0.6 | 0.8 | 1.2 | 1.8 | 9.5 | 11.8 | 142 | 195 |
| 7×1 | 1 | 0.6 | 0.8 | 1.2 | 1.8 | 10.0 | 12.2 | 165 | 221 |
| 7×1.5 | 1 | 0.7 | 0.8 | 1.2 | 1.8 | 11.9 | 13.0 | 235 | 266 |
| 7×2.5 | 1 | 0.8 | 0.8 | 1.5 | 1.8 | 13.7 | 14.2 | 333 | 351 |
| 7×4 | 1 | 0.8 | 1.0 | 1.5 | 1.8 | 15.2 | 16.8 | 451 | 509 |
| 7×6 | 1 | 0.8 | 1.0 | 1.5 | 1.8 | 16.7 | 18.3 | 616 | 681 |
| 7×10 | 2 | 1.0 | 1.0 | 1.7 | 1.8 | 22.2 | 22.2 | 1025 | 1034 |
| 8×0.75 | 1 | 0.6 | 0.8 | 1.2 | 1.8 | 10.8 | 12.5 | 174 | 219 |
| 8×1 | 1 | 0.6 | 0.8 | 1.2 | 1.8 | 11.3 | 13.1 | 201 | 249 |
| 8×1.5 | 1 | 0.7 | 0.8 | 1.5 | 1.8 | 12.8 | 13.9 | 266 | 301 |
| 8×2.5 | 1 | 0.8 | 0.8 | 1.5 | 1.8 | 14.8 | 15.2 | 379 | 398 |
| 8×4 | 1 | 0.8 | 1.0 | 1.5 | 1.8 | 16.7 | 18.1 | 530 | 581 |
| 8×6 | 1 | 0.8 | 1.0 | 1.5 | 1.8 | 18.4 | 19.8 | 708 | 763 |
| 8×10 | 2 | 1.0 | 1.0 | 1.7 | 1.8 | 24.0 | 24.0 | 1152 | 1162 |
| 10×0.75 | 1 | 0.6 | 0.8 | 1.2 | 1.8 | 12.3 | 14.3 | 211 | 266 |
| 10×1 | 1 | 0.6 | 0.8 | 1.2 | 1.8 | 12.9 | 15.0 | 245 | 302 |
| 10×1.5 | 1 | 0.7 | 0.8 | 1.5 | 1.8 | 14.7 | 16.0 | 326 | 367 |
| 10×2.5 | 1 | 0.8 | 0.8 | 1.5 | 1.8 | 17.5 | 17.6 | 482 | 489 |
| 10×4 | 1 | 0.8 | 1.0 | 1.5 | 1.8 | 19.4 | 21.1 | 654 | 717 |
| 10×6 | 1 | 0.8 | 1.0 | 1.7 | 1.8 | 21.4 | 23.1 | 876 | 945 |
| 10×10 | 2 | 1.0 | 1.0 | 1.7 | 1.8 | 28.2 | 28.3 | 1432 | 1443 |
| 12×0.75 | 1 | 0.6 | 0.8 | 1.2 | 1.8 | 12.6 | 14.7 | 235 | 295 |
| 12×1 | 1 | 0.6 | 0.8 | 1.5 | 1.8 | 13.3 | 15.4 | 275 | 338 |
| 12×1.5 | 1 | 0.7 | 0.8 | 1.5 | 1.8 | 15.1 | 16.4 | 369 | 413 |
| 12×2.5 | 1 | 0.8 | 0.8 | 1.5 | 1.8 | 18.0 | 18.1 | 549 | 556 |
| 12×4 | 1 | 0.8 | 1.0 | 1.7 | 1.8 | 20.0 | 21.7 | 752 | 822 |
| 12×6 | 1 | 0.8 | 1.0 | 1.7 | 1.8 | 22.1 | 23.8 | 1014 | 1091 |
| 14×0.75 | 1 | 0.6 | 0.8 | 1.5 | 1.8 | 13.2 | 15.4 | 262 | 328 |
| 14×1 | 1 | 0.6 | 0.8 | 1.5 | 1.8 | 13.9 | 16.1 | 308 | 377 |
| 14×1.5 | 1 | 0.7 | 0.8 | 1.5 | 1.8 | 15.9 | 17.2 | 416 | 464 |
| 14×2.5 | 1 | 0.8 | 0.8 | 1.5 | 1.8 | 18.9 | 19.0 | 622 | 630 |
| 14×4 | 1 | 0.8 | 1.0 | 1.7 | 1.8 | 21.0 | 22.8 | 856 | 936 |
| 14×6 | 1 | 0.8 | 1.0 | 1.7 | 1.8 | 23.2 | 25.1 | 1160 | 1247 |
| 16×0.75 | 1 | 0.6 | 0.8 | 1.5 | 1.8 | 13.8 | 16.1 | 290 | 363 |
| 16×1 | 1 | 0.6 | 0.8 | 1.5 | 1.8 | 14.6 | 16.9 | 342 | 419 |
| 16×1.5 | 1 | 0.7 | 0.8 | 1.5 | 1.8 | 16.7 | 18.1 | 464 | 517 |
| 16×2.5 | 1 | 0.8 | 0.8 | 1.7 | 1.8 | 19.9 | 19.9 | 697 | 705 |
| 19×0.75 | 1 | 0.6 | 0.8 | 1.5 | 1.8 | 14.5 | 16.9 | 325 | 404 |
| 19×1 | 1 | 0.6 | 0.8 | 1.5 | 1.8 | 15.3 | 17.7 | 385 | 469 |
| 19×1.5 | 1 | 0.7 | 0.8 | 1.5 | 1.8 | 17.9 | 19.0 | 541 | 583 |
| 19×2.5 | 1 | 0.8 | 0.8 | 1.7 | 1.8 | 20.9 | 21.0 | 792 | 801 |
| 24×0.75 | 1 | 0.6 | 0.8 | 1.5 | 1.8 | 16.6 | 19.5 | 398 | 496 |
| 24×1 | 1 | 0.6 | 0.8 | 1.5 | 1.8 | 18.0 | 20.4 | 490 | 577 |
| 24×1.5 | 1 | 0.7 | 0.8 | 1.7 | 1.8 | 20.7 | 21.9 | 669 | 720 |
| 24×2.5 | 1 | 0.8 | 0.8 | 1.7 | 1.8 | 24.3 | 24.3 | 984 | 994 |
| 27×0.75 | 1 | 0.6 | 0.8 | 1.5 | 1.8 | 17.4 | 19.9 | 450 | 539 |
| 27×1 | 1 | 0.6 | 0.8 | 1.5 | 1.8 | 18.3 | 20.9 | 535 | 629 |
| 27×1.5 | 1 | 0.7 | 0.8 | 1.7 | 1.8 | 21.1 | 22.4 | 733 | 789 |
| 27×2.5 | 1 | 0.8 | 0.8 | 1.7 | 1.8 | 24.8 | 24.9 | 1084 | 1094 |
| 30×0.75 | 1 | 0.6 | 0.8 | 1.5 | 1.8 | 17.9 | 20.5 | 488 | 585 |
| 30×1 | 1 | 0.6 | 0.8 | 1.5 | 1.8 | 18.9 | 21.6 | 582 | 684 |
| 30×1.5 | 1 | 0.7 | 0.8 | 1.7 | 1.8 | 21.8 | 23.2 | 800 | 861 |
| 30×2.5 | 1 | 0.8 | 0.8 | 1.7 | 1.8 | 25.7 | 25.7 | 1188 | 1198 |
| 37×0.75 | 1 | 0.6 | 0.8 | 1.5 | 1.8 | 19.2 | 22.0 | 576 | 692 |
| 37×1 | 1 | 0.6 | 0.8 | 1.7 | 1.8 | 20.3 | 23.2 | 691 | 812 |
| 37×1.5 | 1 | 0.7 | 0.8 | 1.7 | 1.8 | 23.5 | 24.9 | 956 | 1028 |
| 37×2.5 | 1 | 0.8 | 0.8 | 2.0 | 1.9 | 28.3 | 28.1 | 1467 | 1465 |
| 44×0.75 | 1 | 0.6 | 0.8 | 1.7 | 1.8 | 21.4 | 24.6 | 674 | 809 |
| 44×1 | 1 | 0.6 | 0.8 | 1.7 | 1.8 | 22.6 | 25.9 | 810 | 952 |
| 44×1.5 | 1 | 0.7 | 0.8 | 1.7 | 1.9 | 26.2 | 27.9 | 1123 | 1207 |
| 44×2.5 | 1 | 0.8 | 0.8 | 2.0 | 2.0 | 31.6 | 31.5 | 1726 | 1725 |
| 48×0.75 | 1 | 0.6 | 0.8 | 1.7 | 1.8 | 21.7 | 25.0 | 721 | 865 |
| 48×1 | 1 | 0.6 | 0.8 | 1.7 | 1.8 | 23.0 | 26.3 | 868 | 1020 |
| 48×1.5 | 1 | 0.7 | 0.8 | 1.7 | 1.8 | 26.7 | 28.3 | 1208 | 1297 |
| 48×2.5 | 1 | 0.8 | 0.8 | 2.0 | 2.0 | 32.2 | 32.0 | 1859 | 1857 |
| 52×0.75 | 1 | 0.6 | 0.8 | 1.7 | 1.8 | 22.3 | 25.7 | 770 | 924 |
| 52×1 | 1 | 0.6 | 0.8 | 1.7 | 1.8 | 23.6 | 27.0 | 929 | 1091 |
| 52×1.5 | 1 | 0.7 | 0.8 | 1.7 | 1.9 | 28.0 | 29.5 | 1332 | 1417 |
| 52×2.5 | 1 | 0.8 | 0.8 | 2.0 | 2.0 | 33.4 | 33.3 | 2025 | 2024 |
| 61×0.75 | 1 | 0.6 | 0.8 | 1.7 | 1.8 | 23.5 | 27.2 | 880 | 1057 |
| 61×1 | 1 | 0.6 | 0.8 | 1.7 | 1.8 | 25.0 | 28.6 | 1066 | 1251 |
| 61×1.5 | 1 | 0.7 | 0.8 | 2.0 | 2.0 | 29.6 | 31.3 | 1530 | 1628 |
| 61×2.5 | 1 | 0.8 | 0.8 | 2.2 | 2.1 | 35.4 | 35.3 | 2334 | 2332 |
| Specificication | Type of conductor | Insulation thickness mm | Sheath thickness mm | Cable approx.dia. mm | Cable approx.weight kg/km | ||||
| 450/750V | 0.6/1kV | 450/750V | 0.6/1kV | 450/750V | 0.6/1kV | 450/750V | 0.6/1kV | ||
| 2×1.5 | 1 | 0.7 | 0.8 | 1.5 | 1.8 | 13.0 | 14.0 | 262 | 300 |
| 2×2.5 | 1 | 0.8 | 0.8 | 1.5 | 1.8 | 14.4 | 15.0 | 322 | 349 |
| 2×4 | 1 | 0.8 | 1.0 | 1.5 | 1.8 | 15.6 | 17.0 | 394 | 455 |
| 2×6 | 1 | 0.8 | 1.0 | 1.5 | 1.8 | 16.7 | 18.1 | 466 | 530 |
| 2×10 | 2 | 1.0 | 1.0 | 1.7 | 1.8 | 19.8 | 20.0 | 651 | 670 |
| 3×1.0 | 1 | 0.6 | 0.8 | 1.5 | 1.8 | 12.5 | 13.9 | 248 | 302 |
| 3×1.5 | 1 | 0.7 | 0.8 | 1.5 | 1.8 | 13.5 | 14.5 | 292 | 333 |
| 3×2.5 | 1 | 0.8 | 0.8 | 1.5 | 1.8 | 14.9 | 15.5 | 367 | 395 |
| 3×4 | 1 | 0.8 | 1.0 | 1.5 | 1.8 | 16.2 | 17.7 | 456 | 523 |
| 3×6 | 1 | 0.8 | 1.0 | 1.5 | 1.8 | 17.5 | 18.9 | 549 | 621 |
| 3×10 | 2 | 1.0 | 1.0 | 1.7 | 1.8 | 20.7 | 20.9 | 784 | 804 |
| 4×0.75 | 1 | 0.6 | 0.8 | 1.5 | 1.8 | 12.7 | 14.2 | 256 | 314 |
| 4×1.0 | 1 | 0.6 | 0.8 | 1.5 | 1.8 | 13.1 | 14.7 | 278 | 338 |
| 4×1.5 | 1 | 0.7 | 0.8 | 1.5 | 1.8 | 14.2 | 15.3 | 331 | 376 |
| 4×2.5 | 1 | 0.8 | 0.8 | 1.5 | 1.8 | 16.1 | 16.7 | 439 | 470 |
| 4×4 | 1 | 0.8 | 1.0 | 1.5 | 1.8 | 17.3 | 18.9 | 532 | 608 |
| 4×6 | 1 | 0.8 | 1.0 | 1.5 | 1.8 | 18.7 | 20.3 | 649 | 731 |
| 4×10 | 2 | 1.0 | 1.0 | 1.7 | 1.8 | 22.3 | 22.5 | 941 | 963 |
| 5×0.75 | 1 | 0.6 | 0.8 | 1.5 | 1.8 | 13.3 | 15.0 | 283 | 348 |
| 5×1.0 | 1 | 0.6 | 0.8 | 1.5 | 1.8 | 13.8 | 15.5 | 310 | 377 |
| 5×1.5 | 1 | 0.7 | 0.8 | 1.5 | 1.8 | 15.1 | 16.2 | 373 | 423 |
| 5×2.5 | 1 | 0.8 | 0.8 | 1.5 | 1.8 | 17.1 | 17.7 | 500 | 533 |
| 5×4 | 1 | 0.8 | 1.0 | 1.5 | 1.8 | 18.5 | 20.2 | 612 | 698 |
| 5×6 | 1 | 0.8 | 1.0 | 1.5 | 1.8 | 20.0 | 21.7 | 754 | 846 |
| 5×10 | 2 | 1.0 | 1.0 | 1.7 | 1.8 | 24.0 | 24.2 | 1105 | 1129 |
| 6×0.75 | 1 | 0.6 | 0.8 | 1.5 | 1.8 | 14.0 | 15.8 | 309 | 380 |
| 6×1.0 | 1 | 0.6 | 0.8 | 1.5 | 1.8 | 14.6 | 16.4 | 339 | 413 |
| 6×1.5 | 1 | 0.7 | 0.8 | 1.5 | 1.8 | 16.0 | 17.2 | 411 | 465 |
| 6×2.5 | 1 | 0.8 | 0.8 | 1.5 | 1.8 | 18.2 | 18.8 | 556 | 591 |
| 6×4 | 1 | 0.8 | 1.0 | 1.5 | 1.8 | 19.8 | 21.6 | 695 | 792 |
| 6×6 | 1 | 0.8 | 1.0 | 1.7 | 1.8 | 21.5 | 23.3 | 863 | 967 |
| 6×10 | 2 | 1.0 | 1.0 | 1.7 | 1.8 | 25.9 | 26.1 | 1275 | 1301 |
| 7×0.75 | 1 | 0.6 | 0.8 | 1.5 | 1.8 | 14.0 | 15.8 | 318 | 390 |
| 7×1.0 | 1 | 0.6 | 0.8 | 1.5 | 1.8 | 14.6 | 16.4 | 351 | 426 |
| 7×1.5 | 1 | 0.7 | 0.8 | 1.5 | 1.8 | 16.0 | 17.2 | 428 | 483 |
| 7×2.5 | 1 | 0.8 | 0.8 | 1.5 | 1.8 | 18.2 | 18.8 | 583 | 618 |
| 7×4 | 1 | 0.8 | 1.0 | 1.5 | 1.8 | 19.8 | 21.6 | 736 | 835 |
| 7×6 | 1 | 0.8 | 1.0 | 1.7 | 1.8 | 21.5 | 23.3 | 922 | 1028 |
| 7×10 | 2 | 1.0 | 1.0 | 1.7 | 1.8 | 25.9 | 26.1 | 1373 | 1399 |
| 8×0.75 | 1 | 0.6 | 0.8 | 1.5 | 1.8 | 14.7 | 16.6 | 348 | 428 |
| 8×1.0 | 1 | 0.6 | 0.8 | 1.5 | 1.8 | 15.3 | 17.2 | 386 | 468 |
| 8×1.5 | 1 | 0.7 | 0.8 | 1.5 | 1.8 | 17.1 | 18.3 | 490 | 552 |
| 8×2.5 | 1 | 0.8 | 0.8 | 1.5 | 1.8 | 19.3 | 19.9 | 650 | 686 |
| 8×4 | 1 | 0.8 | 1.0 | 1.7 | 1.8 | 21.4 | 22.9 | 831 | 920 |
| 8×6 | 1 | 0.8 | 1.0 | 1.7 | 1.8 | 23.3 | 24.8 | 1043 | 1138 |
| 8×10 | 2 | 1.0 | 1.0 | 1.7 | 1.9 | 27.9 | 28.3 | 1558 | 1600 |
| 10×0.75 | 1 | 0.6 | 0.8 | 1.5 | 1.8 | 16.5 | 18.7 | 427 | 524 |
| 10×1.0 | 1 | 0.6 | 0.8 | 1.5 | 1.8 | 17.3 | 19.5 | 474 | 574 |
| 10×1.5 | 1 | 0.7 | 0.8 | 1.5 | 1.8 | 19.1 | 20.5 | 585 | 657 |
| 10×2.5 | 1 | 0.8 | 0.8 | 1.7 | 1.8 | 22.3 | 22.5 | 802 | 824 |
| 10×4 | 1 | 0.8 | 1.0 | 1.7 | 1.8 | 24.3 | 26.1 | 1006 | 1114 |
| 10×6 | 1 | 0.8 | 1.0 | 1.7 | 1.8 | 26.8 | 28.8 | 1298 | 1430 |
| 10×10 | 2 | 1.0 | 1.0 | 2.0 | 2.0 | 32.1 | 32.7 | 1909 | 1973 |
| 12×0.75 | 1 | 0.6 | 0.8 | 1.5 | 1.8 | 16.9 | 19.2 | 458 | 562 |
| 12×1.0 | 1 | 0.6 | 0.8 | 1.5 | 1.8 | 17.6 | 19.9 | 511 | 619 |
| 12×1.5 | 1 | 0.7 | 0.8 | 1.5 | 1.8 | 19.6 | 21.0 | 636 | 713 |
| 12×2.5 | 1 | 0.8 | 0.8 | 1.7 | 1.8 | 22.8 | 23.0 | 882 | 904 |
| 12×4 | 1 | 0.8 | 1.0 | 1.7 | 1.8 | 24.9 | 26.8 | 1117 | 1235 |
| 12×6 | 1 | 0.8 | 1.0 | 1.7 | 1.9 | 27.5 | 29.6 | 1452 | 1594 |
| 14×0.75 | 1 | 0.6 | 0.8 | 1.5 | 1.8 | 17.5 | 19.9 | 496 | 608 |
| 14×1.0 | 1 | 0.6 | 0.8 | 1.5 | 1.8 | 18.3 | 20.7 | 556 | 673 |
| 14×1.5 | 1 | 0.7 | 0.8 | 1.7 | 1.8 | 20.4 | 21.8 | 697 | 779 |
| 14×2.5 | 1 | 0.8 | 0.8 | 1.7 | 1.8 | 23.8 | 24.0 | 974 | 997 |
| 14×4 | 1 | 0.8 | 1.0 | 1.7 | 1.8 | 26.0 | 28.0 | 1243 | 1372 |
| 14×6 | 1 | 0.8 | 1.0 | 1.7 | 1.9 | 28.7 | 30.9 | 1623 | 1780 |
| 16×0.75 | 1 | 0.6 | 0.8 | 1.5 | 1.8 | 18.2 | 20.6 | 536 | 657 |
| 16×1.0 | 1 | 0.6 | 0.8 | 1.5 | 1.8 | 19.0 | 21.5 | 603 | 730 |
| 16×1.5 | 1 | 0.7 | 0.8 | 1.7 | 1.8 | 21.2 | 22.8 | 761 | 849 |
| 16×2.5 | 1 | 0.8 | 0.8 | 1.7 | 1.8 | 24.8 | 25.0 | 1069 | 1094 |
| 19×0.75 | 1 | 0.6 | 0.8 | 1.5 | 1.8 | 18.9 | 21.5 | 583 | 714 |
| 19×1.0 | 1 | 0.6 | 0.8 | 1.5 | 1.8 | 19.8 | 22.4 | 660 | 796 |
| 19×1.5 | 1 | 0.7 | 0.8 | 1.5 | 1.8 | 22.5 | 23.7 | 858 | 932 |
| 19×2.5 | 1 | 0.8 | 0.8 | 1.7 | 1.8 | 25.9 | 26.1 | 1186 | 1212 |
| 24×0.75 | 1 | 0.6 | 0.8 | 1.7 | 1.8 | 21.2 | 24.2 | 697 | 855 |
| 24×1.0 | 1 | 0.6 | 0.8 | 1.7 | 1.8 | 22.6 | 25.2 | 813 | 957 |
| 24×1.5 | 1 | 0.7 | 0.8 | 1.7 | 1.8 | 25.5 | 26.9 | 1036 | 1126 |
| 24×2.5 | 1 | 0.8 | 0.8 | 2.0 | 1.9 | 29.7 | 30.1 | 1479 | 1523 |
| 27×0.75 | 1 | 0.6 | 0.8 | 1.7 | 1.8 | 21.9 | 24.6 | 759 | 907 |
| 27×1.0 | 1 | 0.6 | 0.8 | 1.7 | 1.8 | 23.0 | 25.7 | 866 | 1019 |
| 27×1.5 | 1 | 0.7 | 0.8 | 1.7 | 1.8 | 25.9 | 27.3 | 1110 | 1205 |
| 27×2.5 | 1 | 0.8 | 0.8 | 2.0 | 1.9 | 30.3 | 30.7 | 1594 | 1639 |
| 30×0.75 | 1 | 0.6 | 0.8 | 1.7 | 1.8 | 22.5 | 25.3 | 809 | 967 |
| 30×1.0 | 1 | 0.6 | 0.8 | 1.7 | 1.8 | 23.7 | 26.4 | 926 | 1089 |
| 30×1.5 | 1 | 0.7 | 0.8 | 1.7 | 1.8 | 26.9 | 28.4 | 1221 | 1324 |
| 30×2.5 | 1 | 0.8 | 0.8 | 2.0 | 1.9 | 31.2 | 31.8 | 1720 | 1781 |
| 37×0.75 | 1 | 0.6 | 0.8 | 1.7 | 1.8 | 23.9 | 26.9 | 924 | 1105 |
| 37×1.0 | 1 | 0.6 | 0.8 | 1.7 | 1.8 | 25.1 | 28.3 | 1063 | 1265 |
| 37×1.5 | 1 | 0.7 | 0.8 | 1.7 | 1.9 | 28.6 | 30.4 | 1412 | 1544 |
| 37×2.5 | 1 | 0.8 | 0.8 | 2.0 | 2.0 | 35.2 | 35.4 | 2420 | 2458 |
| 44×0.75 | 1 | 0.6 | 0.8 | 1.7 | 1.9 | 26.4 | 30.0 | 1091 | 1319 |
| 44×1.0 | 1 | 0.6 | 0.8 | 1.7 | 1.9 | 27.8 | 31.6 | 1257 | 1510 |
| 44×1.5 | 1 | 0.7 | 0.8 | 2.0 | 2.0 | 31.6 | 33.8 | 1635 | 1804 |
| 44×2.5 | 1 | 0.8 | 0.8 | 2.2 | 2.2 | 39.0 | 39.4 | 2842 | 2903 |
| 48×0.75 | 1 | 0.6 | 0.8 | 1.7 | 1.9 | 26.7 | 30.4 | 1147 | 1386 |
| 48×1.0 | 1 | 0.6 | 0.8 | 1.7 | 2.0 | 28.2 | 32.1 | 1325 | 1590 |
| 48×1.5 | 1 | 0.7 | 0.8 | 2.0 | 2.0 | 33.2 | 35.7 | 2077 | 2290 |
| 48×2.5 | 1 | 0.8 | 0.8 | 2.2 | 2.2 | 39.6 | 40.0 | 2999 | 3061 |
| 52×0.75 | 1 | 0.6 | 0.8 | 1.7 | 1.9 | 27.3 | 31.3 | 1209 | 1476 |
| 52×1.0 | 1 | 0.6 | 0.8 | 1.7 | 2.0 | 28.9 | 32.8 | 1400 | 1678 |
| 52×1.5 | 1 | 0.7 | 0.8 | 2.0 | 2.1 | 34.6 | 36.5 | 2235 | 2412 |
| 52×2.5 | 1 | 0.8 | 0.8 | 2.2 | 2.2 | 40.9 | 41.1 | 3209 | 3254 |
| 61×0.75 | 1 | 0.6 | 0.8 | 1.7 | 2.0 | 28.7 | 32.9 | 1348 | 1645 |
| 61×1.0 | 1 | 0.6 | 0.8 | 2.0 | 2.0 | 30.3 | 34.7 | 1569 | 1895 |
| 61×1.5 | 1 | 0.7 | 0.8 | 2.0 | 2.2 | 36.3 | 38.5 | 2490 | 2704 |
| 61×2.5 | 1 | 0.8 | 0.8 | 2.2 | 2.3 | 43.1 | 43.5 | 3599 | 3668 |
| Specificication | Type of conductor | Insulation thickness mm | Sheath thickness mm | Cable approx.dia. mm | Cable approx.weight kg/km | ||||
| 450/750V | 0.6/1kV | 450/750V | 0.6/1kV | 450/750V | 0.6/1kV | 450/750V | 0.6/1kV | ||
| 2×1.5 | 1 | 0.7 | 0.8 | 1.5 | 1.8 | 12.2 | 13.2 | 236 | 265 |
| 2×2.5 | 1 | 0.8 | 0.8 | 1.5 | 1.8 | 13.4 | 14.0 | 287 | 306 |
| 2×4 | 1 | 0.8 | 1.0 | 1.5 | 1.8 | 14.4 | 15.8 | 340 | 387 |
| 2×6 | 1 | 0.8 | 1.0 | 1.5 | 1.8 | 15.4 | 16.8 | 404 | 454 |
| 2×10 | 2 | 1.0 | 1.0 | 1.7 | 1.8 | 19.2 | 19.4 | 598 | 607 |
| 3×1.0 | 1 | 0.6 | 0.8 | 1.5 | 1.8 | 11.7 | 13.1 | 223 | 266 |
| 3×1.5 | 1 | 0.7 | 0.8 | 1.5 | 1.8 | 12.6 | 13.7 | 264 | 295 |
| 3×2.5 | 1 | 0.8 | 0.8 | 1.5 | 1.8 | 13.9 | 14.5 | 328 | 348 |
| 3×4 | 1 | 0.8 | 1.0 | 1.5 | 1.8 | 14.9 | 16.4 | 397 | 450 |
| 3×6 | 1 | 0.8 | 1.0 | 1.5 | 1.8 | 16.0 | 17.5 | 483 | 538 |
| 3×10 | 2 | 1.0 | 1.0 | 1.5 | 1.8 | 20.1 | 20.3 | 727 | 736 |
| 4×0.75 | 1 | 0.6 | 0.8 | 1.5 | 1.8 | 11.9 | 13.5 | 230 | 278 |
| 4×1.0 | 1 | 0.6 | 0.8 | 1.5 | 1.8 | 12.3 | 13.8 | 250 | 299 |
| 4×1.5 | 1 | 0.7 | 0.8 | 1.5 | 1.8 | 13.4 | 14.4 | 300 | 335 |
| 4×2.5 | 1 | 0.8 | 0.8 | 1.5 | 1.8 | 14.8 | 15.4 | 379 | 400 |
| 4×4 | 1 | 0.8 | 1.0 | 1.5 | 1.8 | 15.9 | 17.5 | 466 | 526 |
| 4×6 | 1 | 0.8 | 1.0 | 1.5 | 1.8 | 17.2 | 18.7 | 574 | 638 |
| 4×10 | 2 | 1.0 | 1.0 | 1.7 | 1.8 | 21.7 | 21.9 | 877 | 886 |
| 5×0.75 | 1 | 0.6 | 0.8 | 1.5 | 1.8 | 12.5 | 14.2 | 255 | 308 |
| 5×1.0 | 1 | 0.6 | 0.8 | 1.5 | 1.8 | 12.9 | 14.6 | 278 | 334 |
| 5×1.5 | 1 | 0.7 | 0.8 | 1.5 | 1.8 | 14.2 | 15.3 | 338 | 377 |
| 5×2.5 | 1 | 0.8 | 0.8 | 1.5 | 1.8 | 15.8 | 16.4 | 433 | 455 |
| 5×4 | 1 | 0.8 | 1.0 | 1.5 | 1.8 | 17.0 | 18.7 | 538 | 607 |
| 5×6 | 1 | 0.8 | 1.0 | 1.5 | 1.8 | 18.4 | 20.1 | 671 | 743 |
| 5×10 | 2 | 1.0 | 1.0 | 1.7 | 1.8 | 23.4 | 23.6 | 1033 | 1044 |
| 6×0.75 | 1 | 0.6 | 0.8 | 1.5 | 1.8 | 13.2 | 15.0 | 278 | 336 |
| 6×1.0 | 1 | 0.6 | 0.8 | 1.5 | 1.8 | 13.6 | 15.4 | 305 | 365 |
| 6×1.5 | 1 | 0.7 | 0.8 | 1.5 | 1.8 | 15.0 | 16.2 | 373 | 415 |
| 6×2.5 | 1 | 0.8 | 0.8 | 1.5 | 1.8 | 16.8 | 17.4 | 482 | 505 |
| 6×4 | 1 | 0.8 | 1.0 | 1.5 | 1.8 | 18.2 | 20.0 | 604 | 679 |
| 6×6 | 1 | 0.8 | 1.0 | 1.7 | 1.8 | 19.7 | 21.5 | 770 | 852 |
| 6×10 | 2 | 1.0 | 1.0 | 1.7 | 1.8 | 25.2 | 25.4 | 1195 | 1207 |
| 7×0.75 | 1 | 0.6 | 0.8 | 1.5 | 1.8 | 13.2 | 15.0 | 286 | 346 |
| 7×1.0 | 1 | 0.6 | 0.8 | 1.5 | 1.8 | 13.6 | 15.4 | 316 | 378 |
| 7×1.5 | 1 | 0.7 | 0.8 | 1.5 | 1.8 | 15.0 | 16.2 | 389 | 432 |
| 7×2.5 | 1 | 0.8 | 0.8 | 1.5 | 1.8 | 16.8 | 17.4 | 508 | 531 |
| 7×4 | 1 | 0.8 | 1.0 | 1.5 | 1.8 | 18.2 | 20.0 | 644 | 721 |
| 7×6 | 1 | 0.8 | 1.0 | 1.7 | 1.8 | 19.7 | 21.5 | 827 | 912 |
| 7×10 | 2 | 1.0 | 1.0 | 1.7 | 1.8 | 25.2 | 25.4 | 1291 | 1302 |
| 8×0.75 | 1 | 0.6 | 0.8 | 1.5 | 1.8 | 13.8 | 15.7 | 313 | 380 |
| 8×1.0 | 1 | 0.6 | 0.8 | 1.5 | 1.8 | 14.3 | 16.3 | 347 | 416 |
| 8×1.5 | 1 | 0.7 | 0.8 | 1.5 | 1.8 | 15.8 | 17.1 | 430 | 478 |
| 8×2.5 | 1 | 0.8 | 0.8 | 1.5 | 1.8 | 17.8 | 18.4 | 567 | 592 |
| 8×4 | 1 | 0.8 | 1.0 | 1.7 | 1.8 | 19.8 | 21.3 | 740 | 809 |
| 8×6 | 1 | 0.8 | 1.0 | 1.7 | 1.8 | 21.4 | 23.0 | 939 | 1012 |
| 8×10 | 2 | 1.0 | 1.0 | 1.7 | 1.8 | 27.0 | 27.2 | 1440 | 1452 |
| 10×0.75 | 1 | 0.6 | 0.8 | 1.5 | 1.8 | 15.3 | 17.5 | 368 | 448 |
| 10×1.0 | 1 | 0.6 | 0.8 | 1.5 | 1.8 | 16.0 | 18.2 | 410 | 492 |
| 10×1.5 | 1 | 0.7 | 0.8 | 1.5 | 1.8 | 17.8 | 19.2 | 513 | 569 |
| 10×2.5 | 1 | 0.8 | 0.8 | 1.7 | 1.8 | 20.6 | 20.8 | 702 | 711 |
| 10×4 | 1 | 0.8 | 1.0 | 1.7 | 1.8 | 22.5 | 24.3 | 896 | 981 |
| 10×6 | 1 | 0.8 | 1.0 | 1.7 | 1.8 | 24.5 | 26.3 | 1143 | 1233 |
| 10×10 | 2 | 1.0 | 1.0 | 2.0 | 2.0 | 31.3 | 31.9 | 1766 | 1809 |
| 12×0.75 | 1 | 0.6 | 0.8 | 1.5 | 1.8 | 15.7 | 17.9 | 396 | 482 |
| 12×1.0 | 1 | 0.6 | 0.8 | 1.5 | 1.8 | 16.3 | 18.6 | 445 | 533 |
| 12×1.5 | 1 | 0.7 | 0.8 | 1.5 | 1.8 | 18.2 | 19.6 | 561 | 621 |
| 12×2.5 | 1 | 0.8 | 0.8 | 1.7 | 1.8 | 21.1 | 21.3 | 775 | 784 |
| 12×4 | 1 | 0.8 | 1.0 | 1.7 | 1.8 | 23.0 | 24.9 | 1000 | 1093 |
| 12×6 | 1 | 0.8 | 1.0 | 1.7 | 1.8 | 25.2 | 27.0 | 1288 | 1387 |
| 14×0.75 | 1 | 0.6 | 0.8 | 1.5 | 1.8 | 16.2 | 18.6 | 430 | 523 |
| 14×1.0 | 1 | 0.6 | 0.8 | 1.5 | 1.8 | 16.9 | 19.3 | 485 | 581 |
| 14×1.5 | 1 | 0.7 | 0.8 | 1.7 | 1.8 | 18.9 | 20.4 | 617 | 681 |
| 14×2.5 | 1 | 0.8 | 0.8 | 1.7 | 1.8 | 22.0 | 22.2 | 858 | 868 |
| 14×4 | 1 | 0.8 | 1.0 | 1.7 | 1.8 | 24.0 | 26.0 | 1117 | 1220 |
| 14×6 | 1 | 0.8 | 1.0 | 1.7 | 1.9 | 26.3 | 28.3 | 1447 | 1558 |
| 16×0.75 | 1 | 0.6 | 0.8 | 1.5 | 1.8 | 16.8 | 19.3 | 466 | 567 |
| 16×1.0 | 1 | 0.6 | 0.8 | 1.5 | 1.8 | 17.6 | 20.1 | 527 | 631 |
| 16×1.5 | 1 | 0.7 | 0.8 | 1.7 | 1.8 | 19.7 | 21.3 | 675 | 744 |
| 16×2.5 | 1 | 0.8 | 0.8 | 1.7 | 1.8 | 22.9 | 23.1 | 944 | 954 |
| 19×0.75 | 1 | 0.6 | 0.8 | 1.5 | 1.8 | 17.5 | 20.1 | 508 | 617 |
| 19×1.0 | 1 | 0.6 | 0.8 | 1.5 | 1.8 | 18.3 | 20.9 | 578 | 691 |
| 19×1.5 | 1 | 0.7 | 0.8 | 1.5 | 1.8 | 21.0 | 22.2 | 764 | 821 |
| 19×2.5 | 1 | 0.8 | 0.8 | 1.7 | 1.8 | 24.0 | 24.2 | 1051 | 1062 |
| 24×0.75 | 1 | 0.6 | 0.8 | 1.7 | 1.8 | 19.7 | 22.7 | 609 | 740 |
| 24×1.0 | 1 | 0.6 | 0.8 | 1.7 | 1.8 | 21.0 | 23.6 | 715 | 832 |
| 24×1.5 | 1 | 0.7 | 0.8 | 1.7 | 1.8 | 23.7 | 25.1 | 925 | 994 |
| 24×2.5 | 1 | 0.8 | 0.8 | 2.0 | 1.8 | 27.3 | 27.5 | 1284 | 1296 |
| 27×0.75 | 1 | 0.6 | 0.8 | 1.7 | 1.8 | 20.4 | 23.1 | 666 | 787 |
| 27×1.0 | 1 | 0.6 | 0.8 | 1.7 | 1.8 | 21.4 | 24.1 | 764 | 889 |
| 27×1.5 | 1 | 0.7 | 0.8 | 1.7 | 1.8 | 24.2 | 25.6 | 994 | 1067 |
| 27×2.5 | 1 | 0.8 | 0.8 | 2.0 | 1.9 | 27.9 | 28.1 | 1390 | 1402 |
| 30×0.75 | 1 | 0.6 | 0.8 | 1.7 | 1.8 | 21.0 | 23.7 | 711 | 841 |
| 30×1.0 | 1 | 0.6 | 0.8 | 1.7 | 1.8 | 22.0 | 24.8 | 818 | 953 |
| 30×1.5 | 1 | 0.7 | 0.8 | 1.7 | 1.8 | 24.9 | 26.4 | 1070 | 1148 |
| 30×2.5 | 1 | 0.8 | 0.8 | 2.0 | 1.9 | 28.7 | 29.1 | 1504 | 1530 |
| 37×0.75 | 1 | 0.6 | 0.8 | 1.7 | 1.8 | 22.2 | 25.2 | 815 | 965 |
| 37×1.0 | 1 | 0.6 | 0.8 | 1.7 | 1.8 | 23.4 | 26.4 | 943 | 1100 |
| 37×1.5 | 1 | 0.7 | 0.8 | 1.7 | 1.9 | 26.5 | 28.1 | 1245 | 1336 |
| 37×2.5 | 1 | 0.8 | 0.8 | 2.0 | 2.0 | 31.3 | 32.5 | 2121 | 2121 |
| 44×0.75 | 1 | 0.6 | 0.8 | 1.7 | 1.9 | 24.4 | 27.8 | 939 | 1114 |
| 44×1.0 | 1 | 0.6 | 0.8 | 1.7 | 1.9 | 25.7 | 29.3 | 1090 | 1285 |
| 44×1.5 | 1 | 0.7 | 0.8 | 2.0 | 2.0 | 29.3 | 31.5 | 1446 | 1579 |
| 44×2.5 | 1 | 0.8 | 0.8 | 2.2 | 2.1 | 34.7 | 36.1 | 2457 | 2473 |
| 48×0.75 | 1 | 0.6 | 0.8 | 1.7 | 1.9 | 24.7 | 28.2 | 989 | 1174 |
| 48×1.0 | 1 | 0.6 | 0.8 | 1.7 | 1.9 | 26.0 | 29.7 | 1152 | 1358 |
| 48×1.5 | 1 | 0.7 | 0.8 | 2.0 | 2.0 | 29.7 | 33.1 | 1833 | 1992 |
| 48×2.5 | 1 | 0.8 | 0.8 | 2.2 | 2.1 | 35.2 | 36.6 | 2601 | 2617 |
| 52×0.75 | 1 | 0.6 | 0.8 | 1.7 | 1.9 | 25.3 | 29.1 | 1045 | 1254 |
| 52×1.0 | 1 | 0.6 | 0.8 | 1.7 | 1.9 | 26.7 | 30.4 | 1220 | 1438 |
| 52×1.5 | 1 | 0.7 | 0.8 | 2.0 | 2.0 | 31.0 | 33.9 | 1980 | 2103 |
| 52×2.5 | 1 | 0.8 | 0.8 | 2.2 | 2.2 | 36.5 | 77.7 | 2790 | 7992 |
| 61×0.75 | 1 | 0.6 | 0.8 | 1.7 | 1.9 | 26.6 | 30.6 | 1170 | 1405 |
| 61×1.0 | 1 | 0.6 | 0.8 | 2.0 | 2.0 | 28.0 | 32.2 | 1373 | 1632 |
| 61×1.5 | 1 | 0.7 | 0.8 | 2.0 | 2.1 | 32.7 | 35.9 | 2214 | 2370 |
| 61×2.5 | 1 | 0.8 | 0.8 | 2.2 | 2.2 | 38.5 | 39.7 | 3143 | 3143 |
Part Ⅳ: Products Details

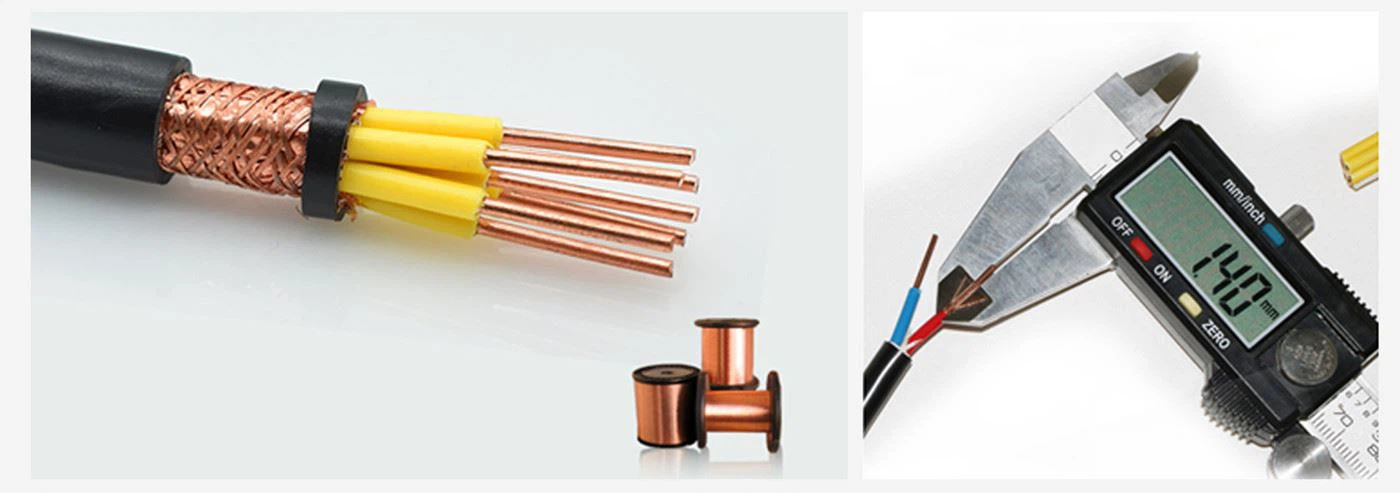

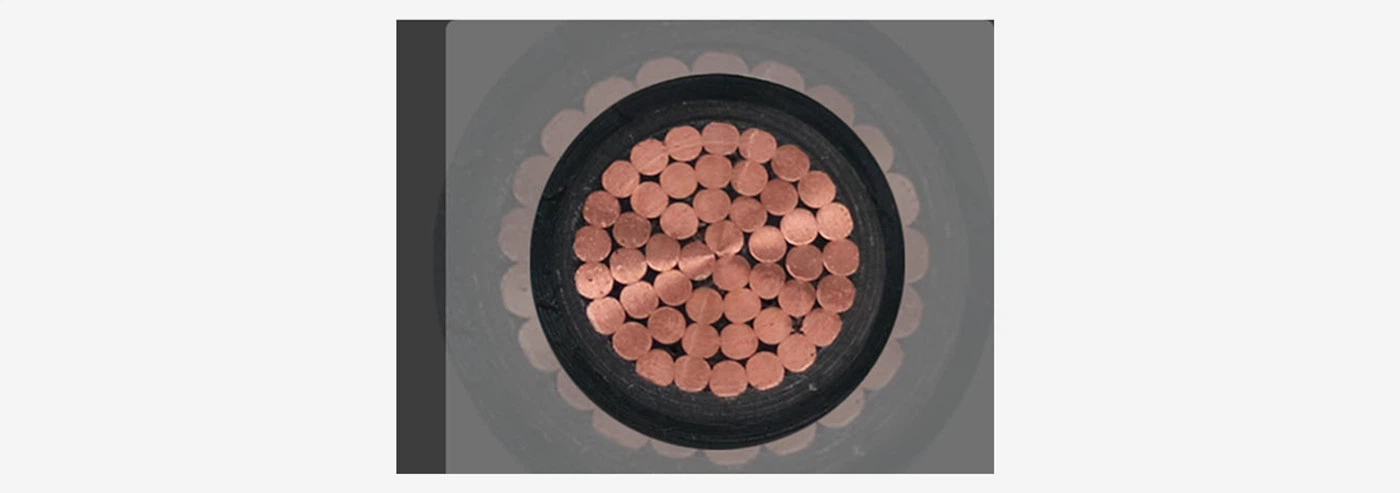

1. Conductor: High-quality oxygen-free copper conductor, thickened copper core, higher conductivity, lower resistance.
2. Highly flexible sheath: Using imported PVC sheath, after a number of experiments such as high-strength bending, tensile force and impact resistance, the experimental results are higher than the international level.
Low eccentricity: The cable is produced by automatic equipment and meets all testing indexes. The thickness of the sheath is uniform to prevent the current from breaking through the sheath and causing a fire.

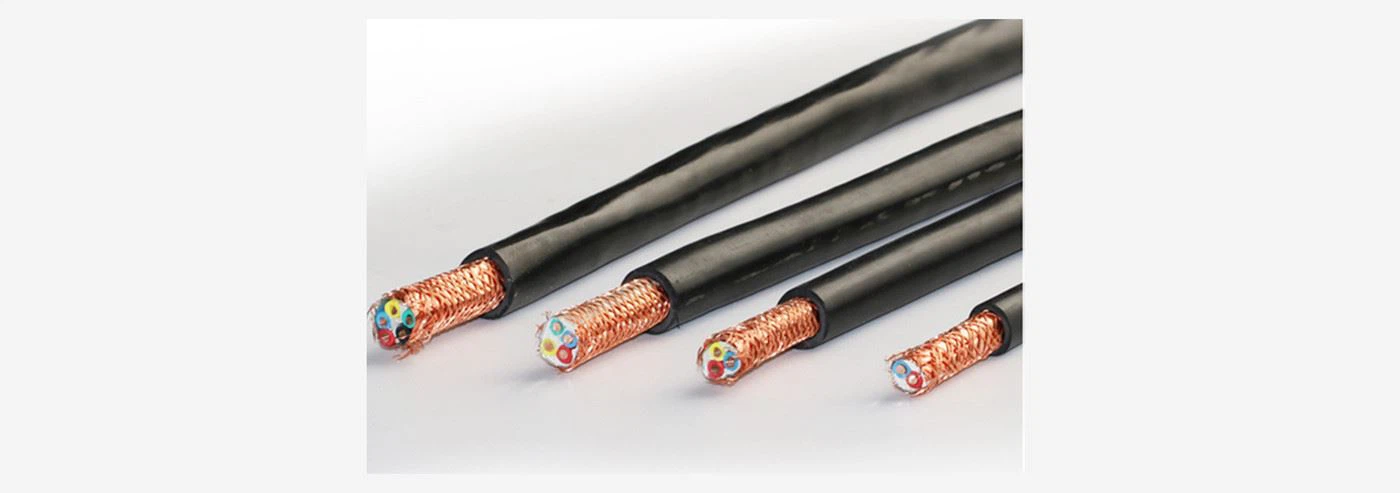

3. High screen and anti-interference capability: The use of pure copper screen network, anti-oxidation, fast and stable transmission, and low attenuation, durable.
Part Ⅴ: Application

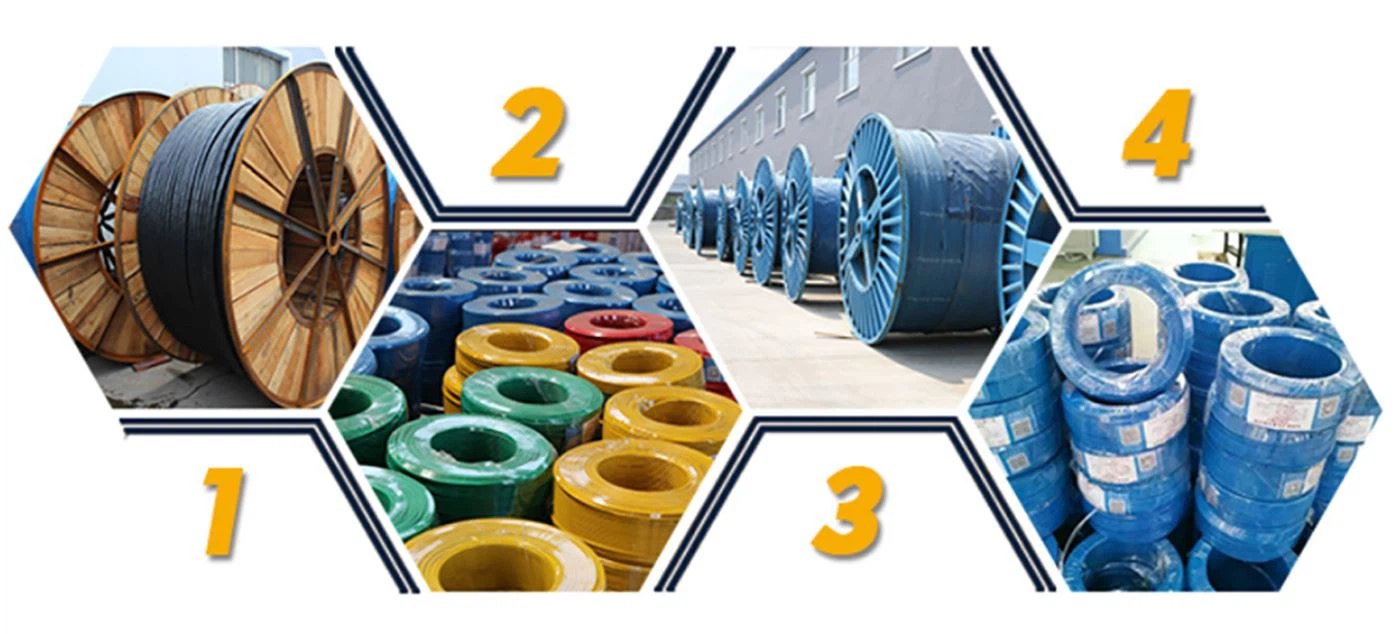

Part Ⅵ: Packaging and Transportation
Packing Material:
Steel Wooden Drum (Fumigation)
Cable length in each drum: 500m/1000m or as per actual cable length requirements.
Delivery:
Port: Shanghai, or other ports as per your requirements.

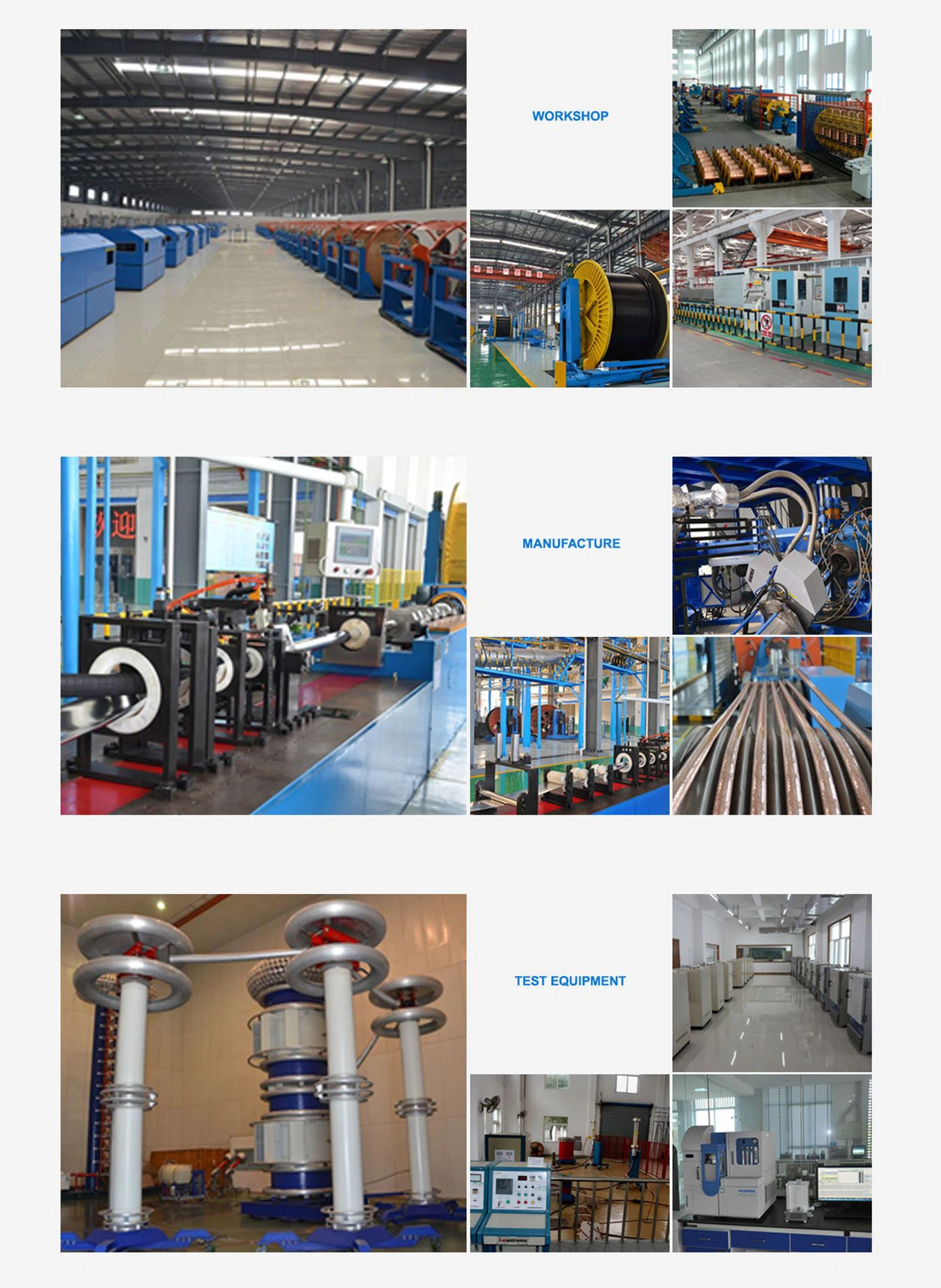

Part Ⅶ: Factory Tour
Part Ⅷ: Service Guarantee
● Quickly and professional response;
● Excellent quality with reasonable price;
● Sufficient support for our tendering representatives;
● OEM service available based on official & legal authorization;
● Strict quality control system;
● Faster lead time than our competitors;
● Cable solutions to your particular requirements;
● Free sample is available with economic express fee;
● 12 months quality guarantee after delivery.
Part Ⅸ: FAQ
Q1: When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
Q2: How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
Q3: How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days.
The samples will be sent to you via express and arrive in 3~5 days.
Q4: What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
Hot Tags: cy cable copper conductor pvc/xlpe insulatedand sheathed control cable kvvp kyjvp, China, suppliers, manufacturers, factory, price, made in China
