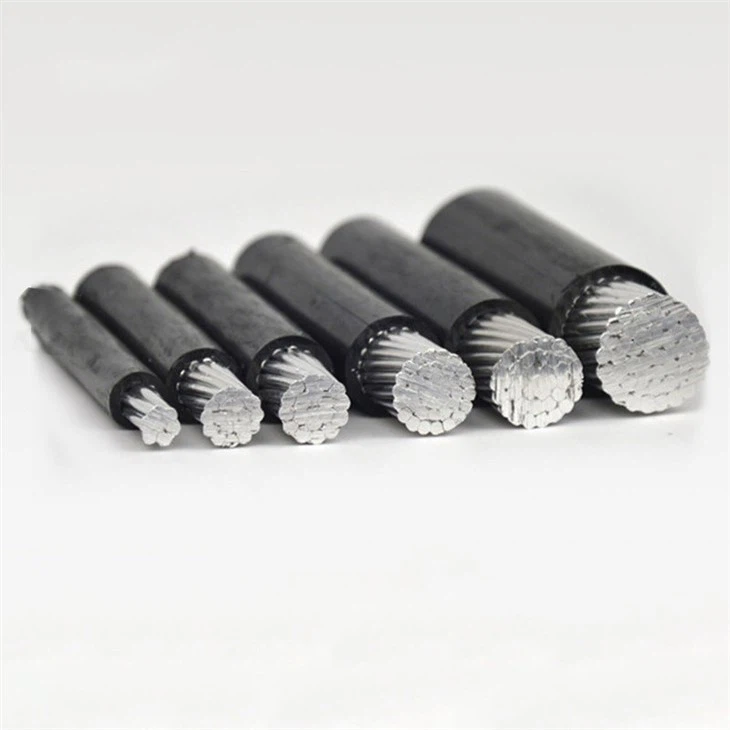

Medium voltage ABC cables, also known as insulated overhead cables, are typically 10kV and 20kV and are overhead power lines with one or more insulated phase conductors tightly bundled together. ABC cables provide greater safety and reliability, lower power losses and ultimate system economics by reducing installation, maintenance and operating costs. The system is well suited for rural distribution and is particularly suitable for installation in difficult terrain such as hilly areas, forested areas, coastal areas, etc.
The product is manufactured according to the standards of GB14049-2008 <Aerial insulated cables of rated voltages up to and including 10 kV>, Q/320282DCE047-2017< Steel cored aluminum stranded aerial insulated cables of rated voltages up to and including 20 kV >and IEC60502 <Extruded solid dielectric cables for rated voltages from 1 kV to 30 kV>.
Part Ⅰ: Operating Characteristics
1. Rated voltage Uo/U: 10 kV, 20kV.
2. Conductor: oxygen-free copper/oxygen-free aluminum/aluminum alloy
3. Insulation: PVC/PE/XLPE
4. Max. permissible continuous operating temperature of a cable:
75℃ (HDPE insulated aerial cables)
90℃ (XLPE insulated aerial cables)
5. Max. permissible temperature for not more than 5 seconds duration should be as follows when short-circuiting:
HDPE insulated aerial cables: 150℃
XLPE insulated aerial cables: 250℃
6. The installation ambient temperature should be not below -20℃.
7. The bending radius of cables is recommended as follows
Single cable: not less than 20 times of the diameter of cables;
Multi-core cable: not less than 15 times of the diameter of cable
Part Ⅱ: Type and Description of Cables
Type | Description |
JKYL | Copper conductor XLPE insulated aerial cables |
JKTRYJ | Flexible copper conductor XLPE insulated aerial cables |
JKLYJ | Aluminum conductor XLPE insulated aerial cables |
JKLGYJ | ACSR conductor XLPE insulated aerial cables |
JKLHYJ | Aluminum alloy conductor XLPE insulated aerial cables |
JKY | Copper conductor PE insulated aerial cable |
JKTRY | Flexible copper conductor PE insulated aerial cables |
JKLY | Aluminum conductor PE insulated aerial cables |
JKLGY | ACSR conductor PE insulated aerial cables |
JKLHY | Aluminum alloy conductor PE insulated aerial cable |
JKLYJ/Q | Aluminum conductor light type XLPE thinness insulated aerial cable |
JKLHYJ/Q | Aluminum alloy conductor light type XLPE thinness insulated aerial cabl |
JKLGYJ/Q | ACSR conductor light type XLPE thinness insulated aerial cable |
JKLY/Q | Aluminum conductor light type PE thinness insulated aerial cable |
JKLHY/Q | Aluminum alloy conductor light type PE thinness insulated aerial cable |
JKLGY/Q | ACSR conductor light type PE thinness insulated aerial cabl |
Part Ⅲ: Range of Production
Type | No. Of Cores | Rated voltage kV | |
10 | 20 | ||
Normal cross-section of conductor mm2 | |||
JKY, JKTRY, JKYJ, JKTRYJ, JKLY, JKLYJ | 1 | 10-400 | 25-300 |
JKLHY, JKLHYJ, JKLGYJ, JKLGY | |||
JKLYJ/Q, JKLGY/Q, JKLGYJ/Q, JKLY/Q | 1 | 10-400 | - |
JKLHY/Q, JKLHYJ/Q | |||
Part Ⅳ: Structure Diagram of Cable
Part Ⅴ: Construction and Main Technical Data
Nominal cross section of conductor | Conductor approx. diameter | Conductor screen thickness | Insulation nominal thickness | Cable approx. diameter | Cable approx. weight | Cable tensile force at break | |||
JKYJ JKTRYJ | JKLYJ JKLHYJ | Hard copper | Aluminum | Aluminum alloy | |||||
mm² | mm | mm | mm | mm | kg/km | N | |||
10 | 4 | 0.5 | 3.4 | 11.8 | 182 | 120 | 3471 | 1650 | 2514 |
16 | 5 | 0.5 | 3.4 | 12.8 | 247 | 149 | 5486 | 2512 | 4022 |
25 | 6 | 0.5 | 3.4 | 13.8 | 339 | 185 | 8455 | 3762 | 6284 |
35 | 7 | 0.5 | 3.4 | 14.8 | 436 | 224 | 11731 | 5177 | 8800 |
50 | 8.3 | 0.5 | 3.4 | 16.1 | 560 | 273 | 16502 | 7011 | 12569 |
70 | 9.8 | 0.5 | 3.4 | 17.6 | 760 | 347 | 23461 | 10354 | 17596 |
95 | 11.5 | 0.6 | 3.4 | 19.5 | 1019 | 443 | 31759 | 13727 | 23880 |
120 | 13 | 0.6 | 3.4 | 21 | 1256 | 529 | 39911 | 17339 | 30164 |
150 | 14.5 | 0.6 | 3.4 | 22.5 | 1517 | 620 | 49505 | 21033 | 37706 |
185 | 16.1 | 0.6 | 3.4 | 24.1 | 1854 | 738 | 61846 | 26732 | 46503 |
240 | 18.4 | 0.6 | 3.4 | 26.4 | 2384 | 920 | 79823 | 34679 | 60329 |
300 | 20.6 | 0.6 | 3.4 | 28.6 | 2948 | 1110 | 99788 | 43349 | 75411 |
400 | 23.5 | 0.6 | 3.4 | 31.5 | 3743 | 1376 | 133040 | 55707 | 100548 |
Nominal cross section of conductor | Conductor approx. diameter | Conductor screen thickness | Insulation nominal thickness | Cable approx. diameter | Cable approx. weight | Cable tensile force at break | |||
JKYJ JKTRYJ | JKLYJ JKLHYJ | Hard copper | Aluminum | Aluminum alloy | |||||
mm² | mm | mm | mm | mm | kg/km | N | |||
25 | 6.0 | 0.6 | 5.5 | 18.0 | 436 | 282 | 8465 | 3762 | 6284 |
35 | 7.0 | 0.6 | 5.5 | 19.0 | 539 | 327 | 11731 | 5177 | 8800 |
50 | 8.3 | 0.6 | 5.5 | 20.3 | 671 | 384 | 16502 | 7011 | 12569 |
70 | 9.8 | 0.6 | 5.5 | 21.8 | 880 | 467 | 23461 | 10354 | 17596 |
95 | 11.5 | 0.6 | 5.5 | 23.5 | 1143 | 567 | 31759 | 13727 | 23880 |
120 | 13.0 | 0.6 | 5.5 | 25.0 | 1389 | 661 | 39911 | 17339 | 30164 |
150 | 14.5 | 0.6 | 5.5 | 26.5 | 1658 | 761 | 49505 | 21033 | 37706 |
185 | 16.1 | 0.6 | 5.5 | 28.1 | 2006 | 888 | 61846 | 26732 | 46503 |
240 | 18.4 | 0.6 | 5.5 | 30.4 | 2547 | 1084 | 79823 | 34679 | 60329 |
300 | 20.6 | 0.6 | 5.5 | 32.6 | 3124 | 1286 | 99788 | 43349 | 75411 |
More Technical data please contact us
Part Ⅵ: Products Details

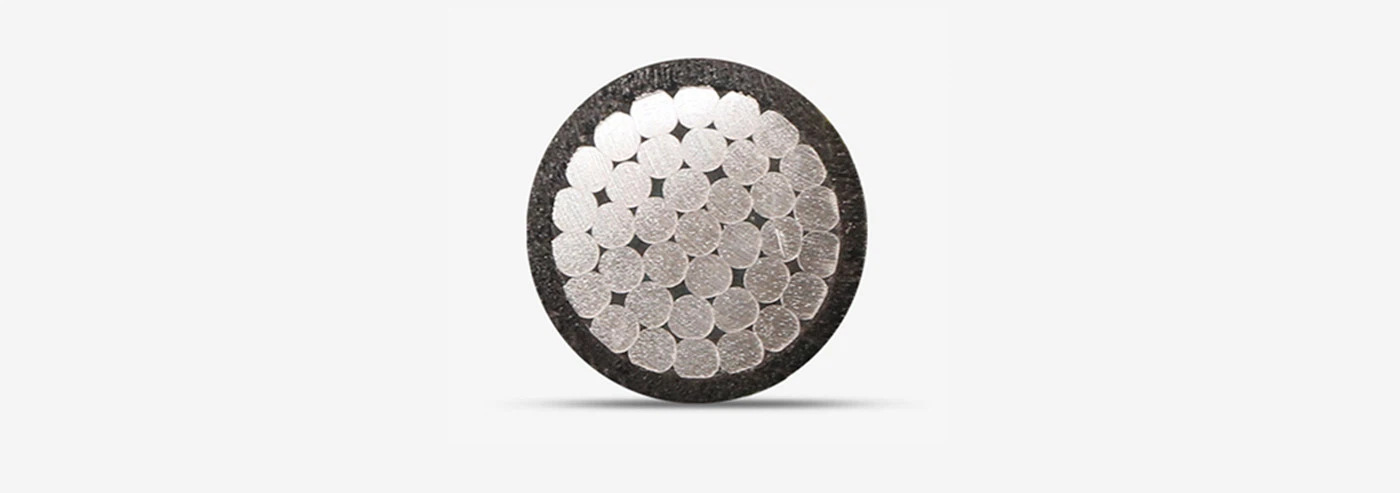

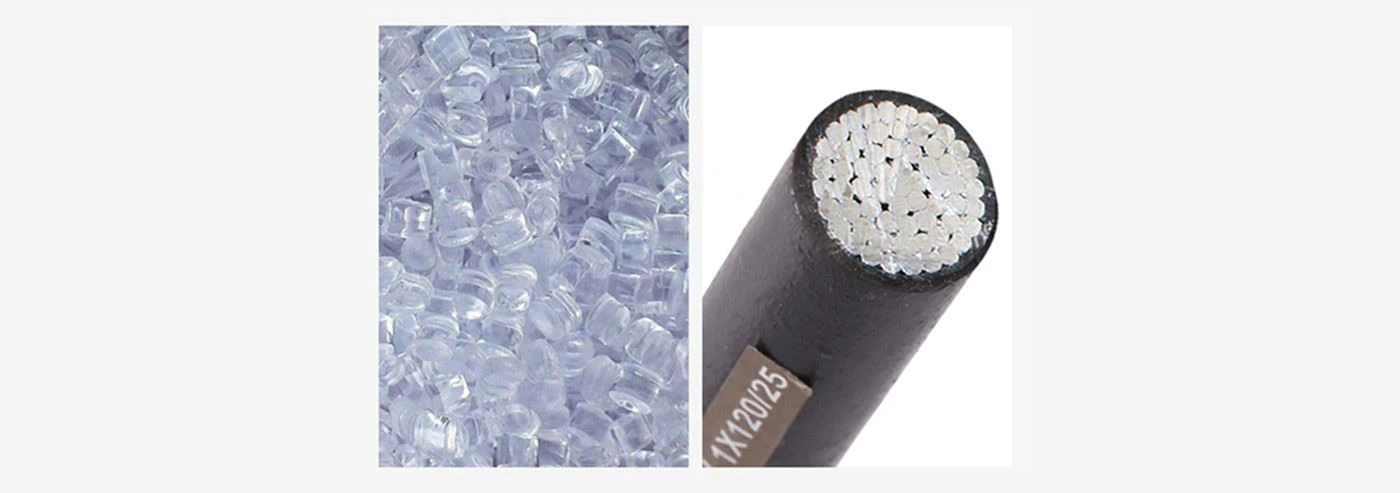

1. High-precision oxygen-free copper/aluminum: Strictly in accordance with international standards, the use of high-quality oxygen-free copper/aluminum, to ensure the conductivity to reduce losses.
2. Low eccentricity: uniform thickness to prevent breakdown and ensure electrical safety.
3. Outstanding insulation performance: The insulation performance is superior to bare wire, reducing the distance between phases of the line and reducing the insulation requirements with line support members.
1. Low eccentricity and uniform thickness: prevent breakdown and ensure safe power usage.
Part Ⅶ: Application
Part Ⅷ: Packaging and Transportation

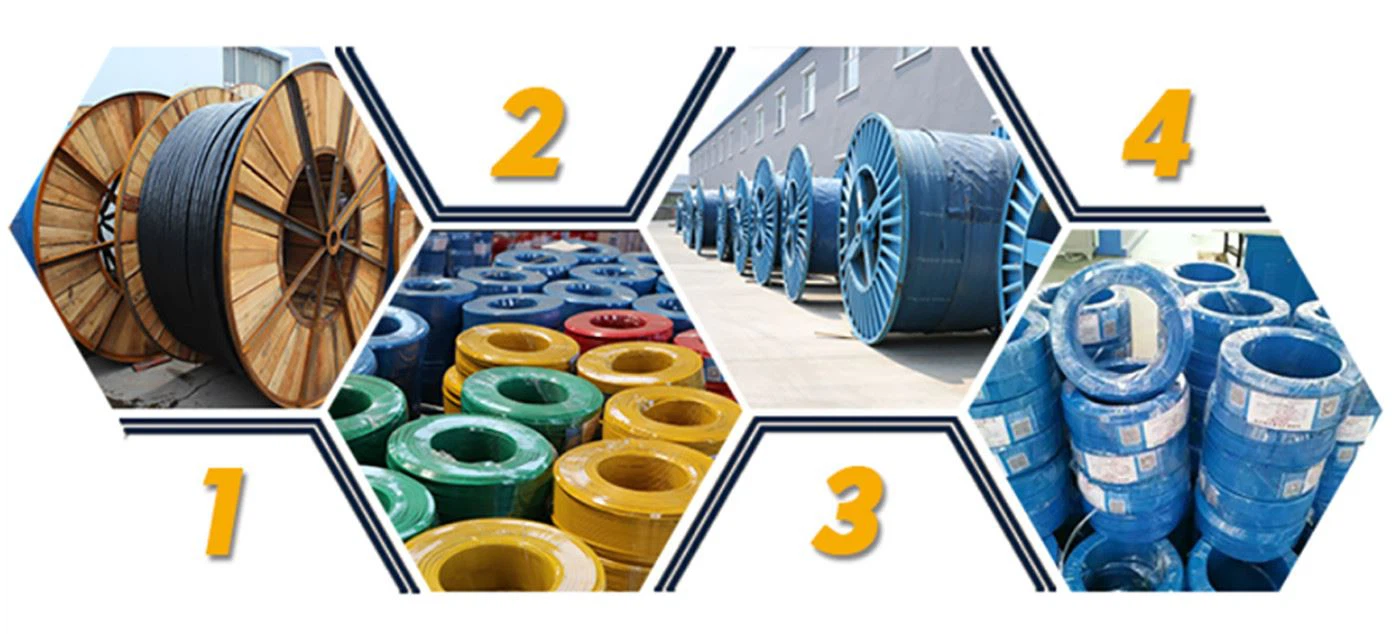

Packing Material:
Steel Wooden Drum (Fumigation)
Cable length in each drum: 500m/1000m or as per actual cable length requirements.
Delivery:
Port: Shanghai, or other ports as per your requirements.
Part Ⅸ: Factory Tour
Part Ⅹ: Service Guarantee
● Quickly and professional response;
● Excellent quality with reasonable price;
● Sufficient support for our tendering representatives;
● OEM service available based on official & legal authorization;
● Strict quality control system;
● Faster lead time than our competitors;
● Cable solutions to your particular requirements;
● Free sample is available with economic express fee;
● 12 months quality guarantee after delivery.
Part Ⅺ: FAQ
Q1: When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
Q2: How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
Q3: How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days.
The samples will be sent to you via express and arrive in 3~5 days.
Q4: What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
