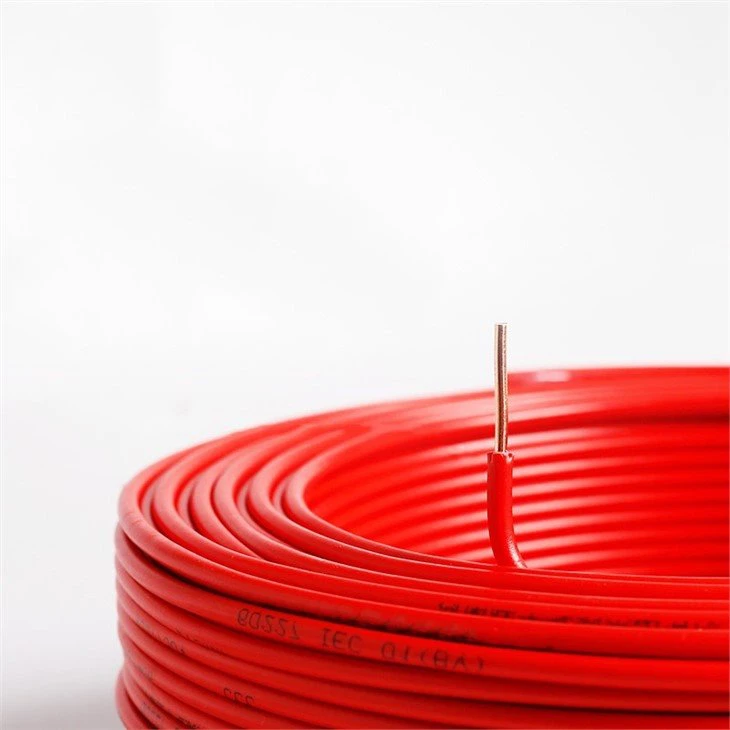

PVC Insulated Non-sheathed Cable also as known as BV cable, is a very widely used cable for daily use. It is a single-core wire consisting of a copper wire with a certain hardness, and is usually also known as a hard wire. It is mainly used for power supply, lighting, socket, air conditioning, cable and wire for AC voltage 450/750V and below for power devices, daily appliances, instruments and communication equipment.

Products comply with GB/T5023-2008 and IEC60227 standards.

Part Ⅰ: Operating Characteristics

1. Type: BV (PVC Insulated Non-sheathed Cable)

2. Rated power-frequency voltage Uo/U: 450/750V, 300/500V, 300/300V

3. Conductor: oxygen-free copper

4. Insulation: PVC

5. Max. admissible operating temperature of conductor: 70℃ (60227IEC05)

90℃ (60227IEC07)

6. The installation temperature should be not below 0℃.

7. The bending radius of cable:

D≤25mm...........................≥4D

D＞25mm...........................≥6D

Part Ⅱ: Range of Production

Type	Rated Voltage V	No. Of Cores	Nominal Cross Sectional Area mm²	Standard
60227IEC01 (BV)	450/750	1	1.5~400	GB/T5023-2008/IEC60227
60227IEC05 (BV)	300/500	1	0.5~1	GB/T5023-2008/IEC60227
60227IEC07 (BV-90)	300/500	1	0.5~2.5	GB/T5023-2008/IEC60227

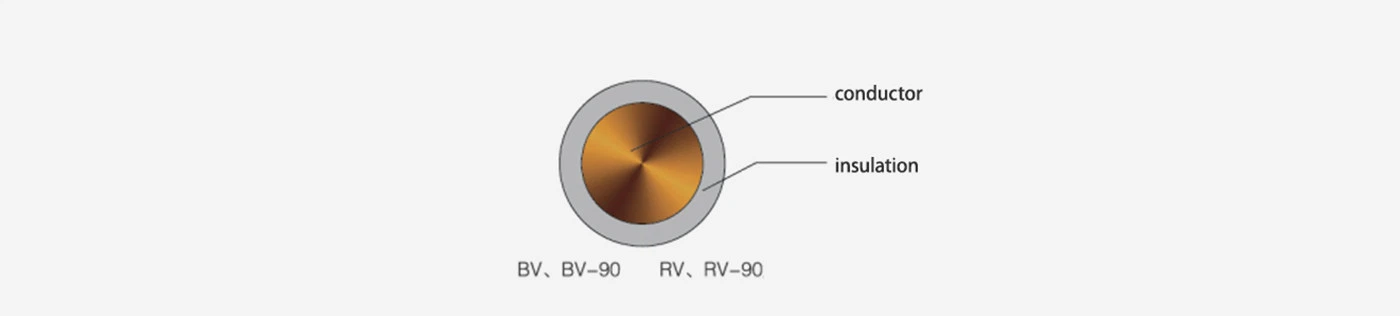

Part Ⅲ: Structural Figure

Part Ⅳ: Construction and Main Technical Data

Nominal cross sectionmm²	Conductor type	Insulation thicknessmm	Average outer diameter mm		Approximate weightkg/km	The maximum DC resistance of the conductor (copper) (20℃) Ω/km		At 70℃ Minimum insulation resistance MΩ·km


			Lower limit	Upper limit		No metal plating	Metallized
1.5	1	0.7	2.6	3.2	19.41	12.1	12.2	0.011
1.5	2	0.7	2.7	3.3	20.13	12.1	12.2	0.010
2.5	1	0.8	3.2	3.9	30.74	7.41	7.56	0.010
2.5	2	0.8	3.3	4.0	32.6	7.41	7.56	0.009
4	1	0.8	3.6	4.4	45.4	4.61	4.70	0.0085
4	2	0.8	3.8	4.6	47.1	4.61	4.70	0.0077
6	1	0.8	4.1	5.0	64.8	3.08	3.11	0.0070
6	2	0.8	4.3	5.2	66.7	3.08	3.11	0.0065
10	2	1.0	5.6	6.7	113.0	1.83	1.84	0.0065
16	2	1.0	6.4	7.8	170.4	1.15	1.16	0.0050
25	2	1.2	8.1	9.7	267.7	0.727	0.734	0.0050
35	2	1.2	9.0	10.9	361.3	0.524	0.529	0.0043
50	2	1.4	10.6	12.8	490.2	0.387	0.391	0.0043
70	2	1.4	12.1	14.6	690.7	0.268	0.270	0.0035
95	2	1.6	14.1	17.1	954.2	0.193	0.195	0.0035
120	2	1.6	15.6	18.8	1190.3	0.153	0.154	0.0032
150	2	1.8	17.3	20.9	1464.6	0.124	0.126	0.0032
185	2	2.0	19.3	23.3	1835.6	0.0991	0.100	0.0032
240	2	2.2	22.0	26.6	2402.3	0.0754	0.0762	0.0032
300	2	2.4	24.5	29.6	3005.4	0.0601	0.0607	0.0030
400	2	2.6	27.5	33.2	3828.0	0.0470	0.0475	0.0028

Nominal cross sectionmm²	Conductor type	Insulation thicknessmm	Average outer diameter mm		Approximate weightkg/km	The maximum DC resistance of the conductor (copper) (20℃) Ω/km		At 70℃ Minimum insulation resistance MΩ·km


			Lower limit	Upper limit		No metal plating	Metallized
0.5	1	0.6	1.9	2.3	8.08	36.0	36.7	0.015
0.75	1	0.6	2.1	2.5	10.55	24.5	24.8	0.012
1	1	0.6	2.2	2.7	13.28	18.1	18.2	0.011

Nominal cross sectionmm²	Conductor type	Insulation thicknessmm	Average outer diameter mm		Approximate weightkg/km	The maximum DC resistance of the conductor (copper) (20℃) Ω/km		At 70℃ Minimum insulation resistance MΩ·km


			Lower limit	Upper limit		No metal plating	Metallized
0.5	1	0.6	1.9	2.3	8.04	36.0	36.7	0.015
0.75	1	0.6	2.1	2.5	10.55	24.5	24.8	0.013
1	1	0.6	2.2	2.7	13.28	18.1	18.2	0.012
1.5	1	0.7	2.6	3.2	19.41	12.1	12.2	0.011
2.5	1	0.8	3.2	3.9	30.74	7.41	7.56	0.0090

Part Ⅴ: Products Details

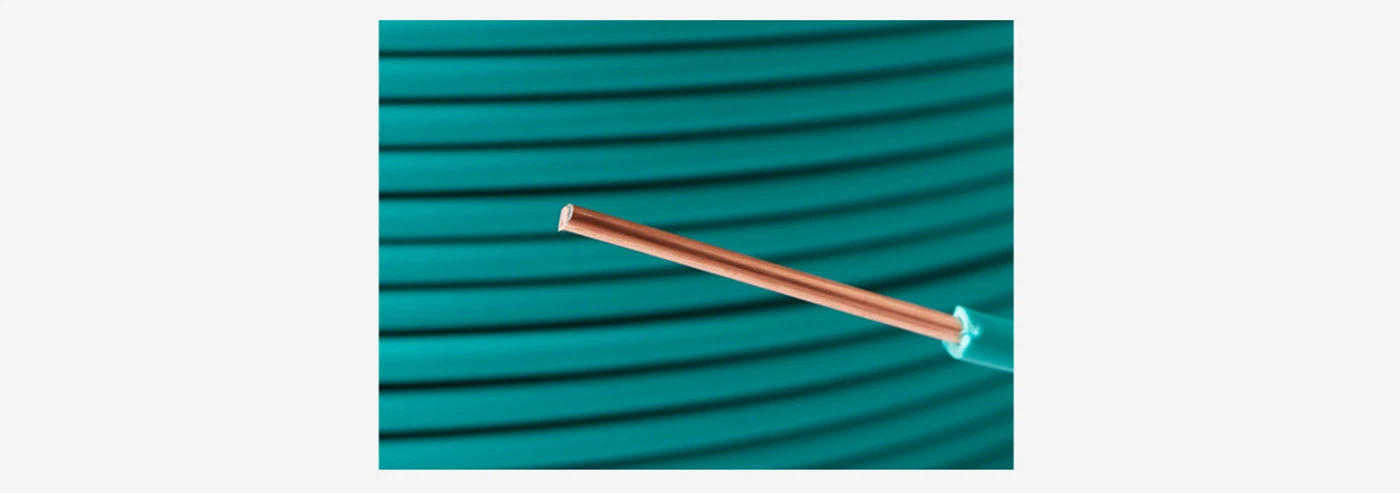

1. High-precision oxygen-free copper: copper wire with bright appearance and full color. Can process eliminates internal stress and avoids unevenness at both ends produced by continuous pulling and receding. With good electrical conductivity and high safety.

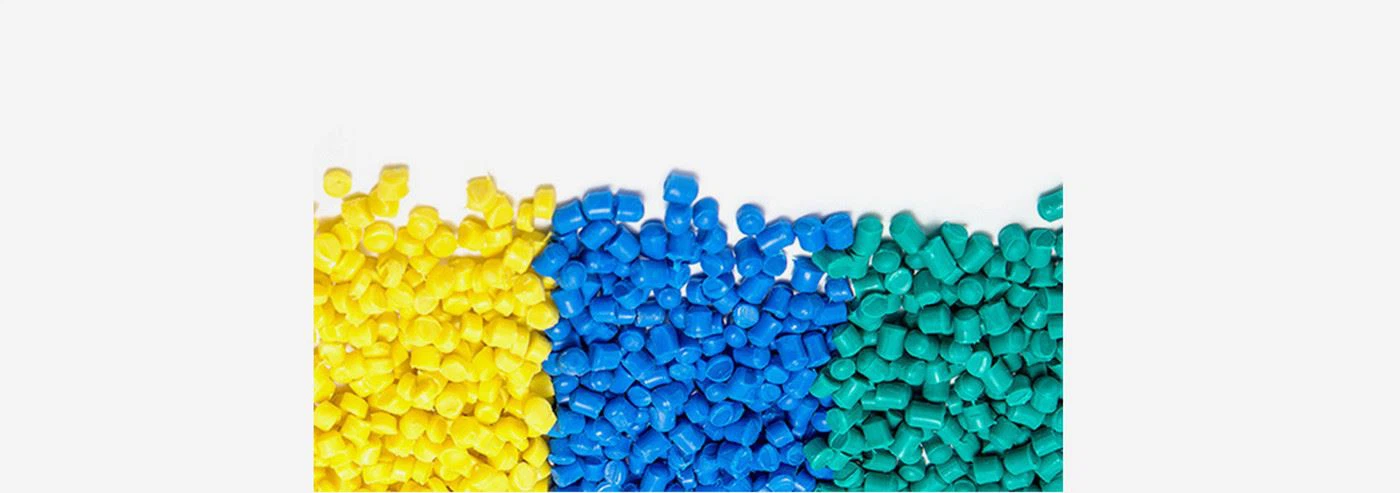

2. Environmentally friendly PVC virgin material: meets the requirements of USA, EU, China, etc. Good insulation performance, scratch resistance, wear resistance, good toughness. No lead, no mercury, no cadmium.

3. Low eccentricity and uniform thickness: prevent breakdown and ensure safe power usage.

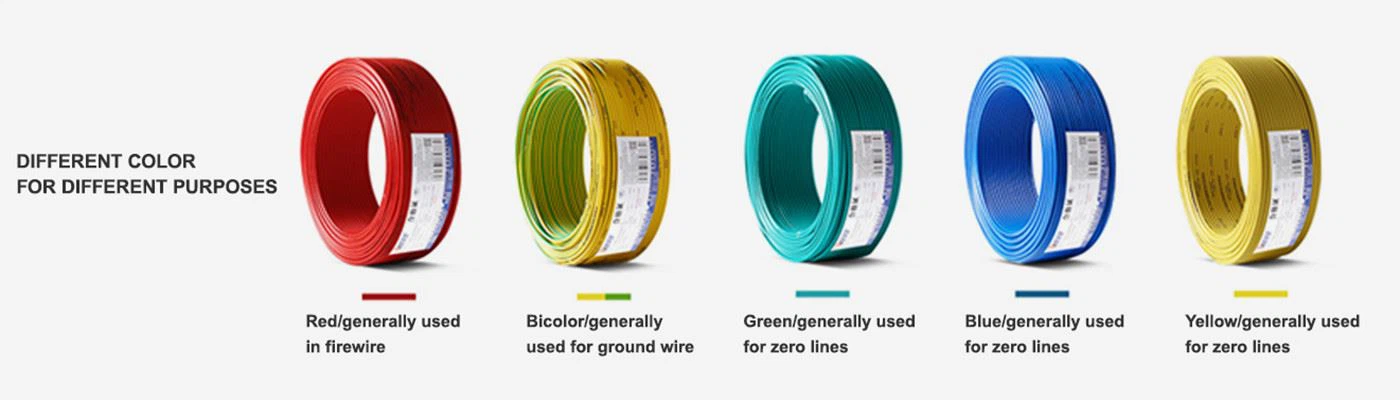

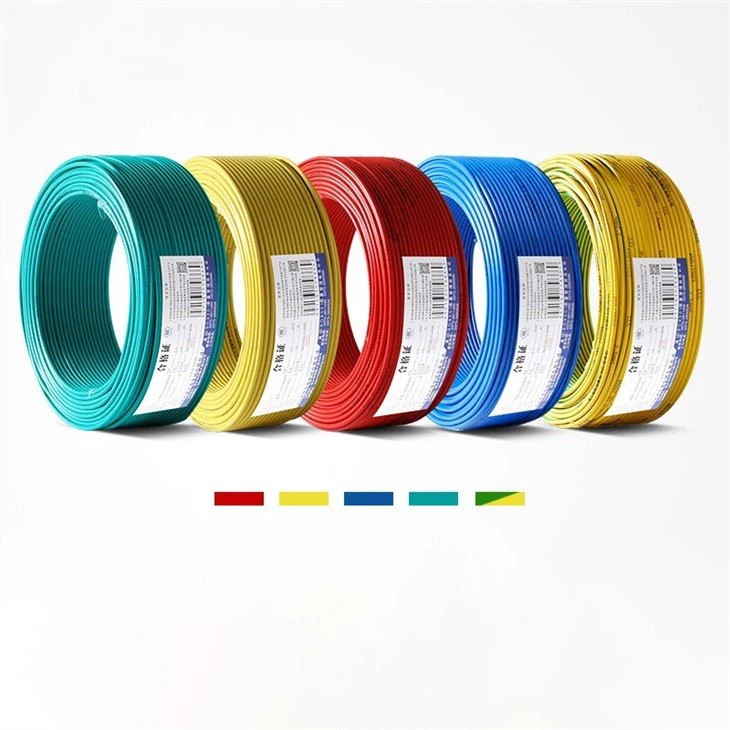

4. Different colors to distinguish the use: red is generally used for the fire line, two-color is generally used for ground, green, yellow and blue is generally used for zero line.

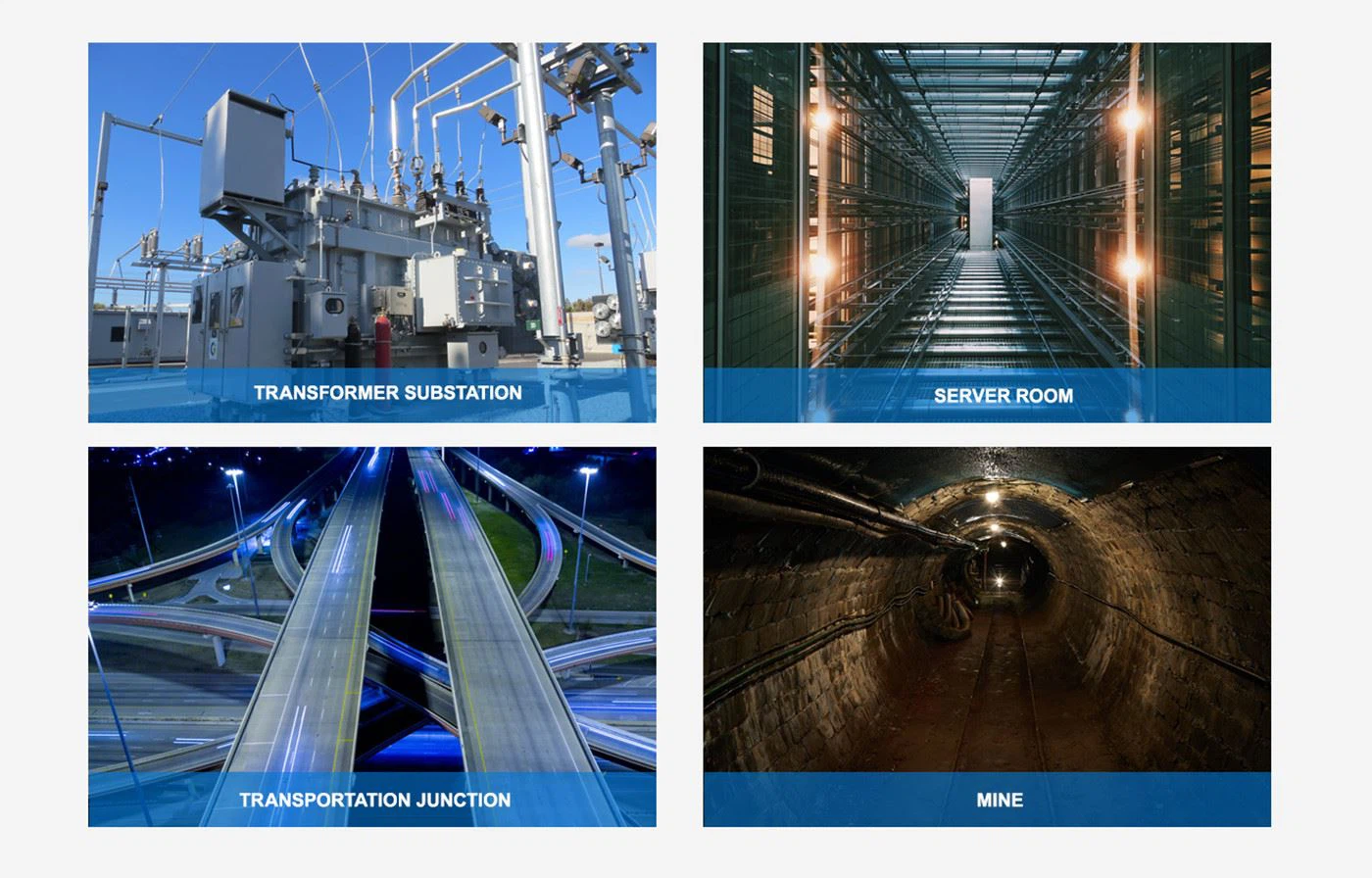

Part Ⅵ: Application

Part Ⅶ: Packaging and Transportation

Packing Material:

Steel Wooden Drum (Fumigation)

Cable length in each drum: 500m/1000m or as per actual cable length requirements.

Delivery:

Port: Shanghai, or other ports as per your requirements.

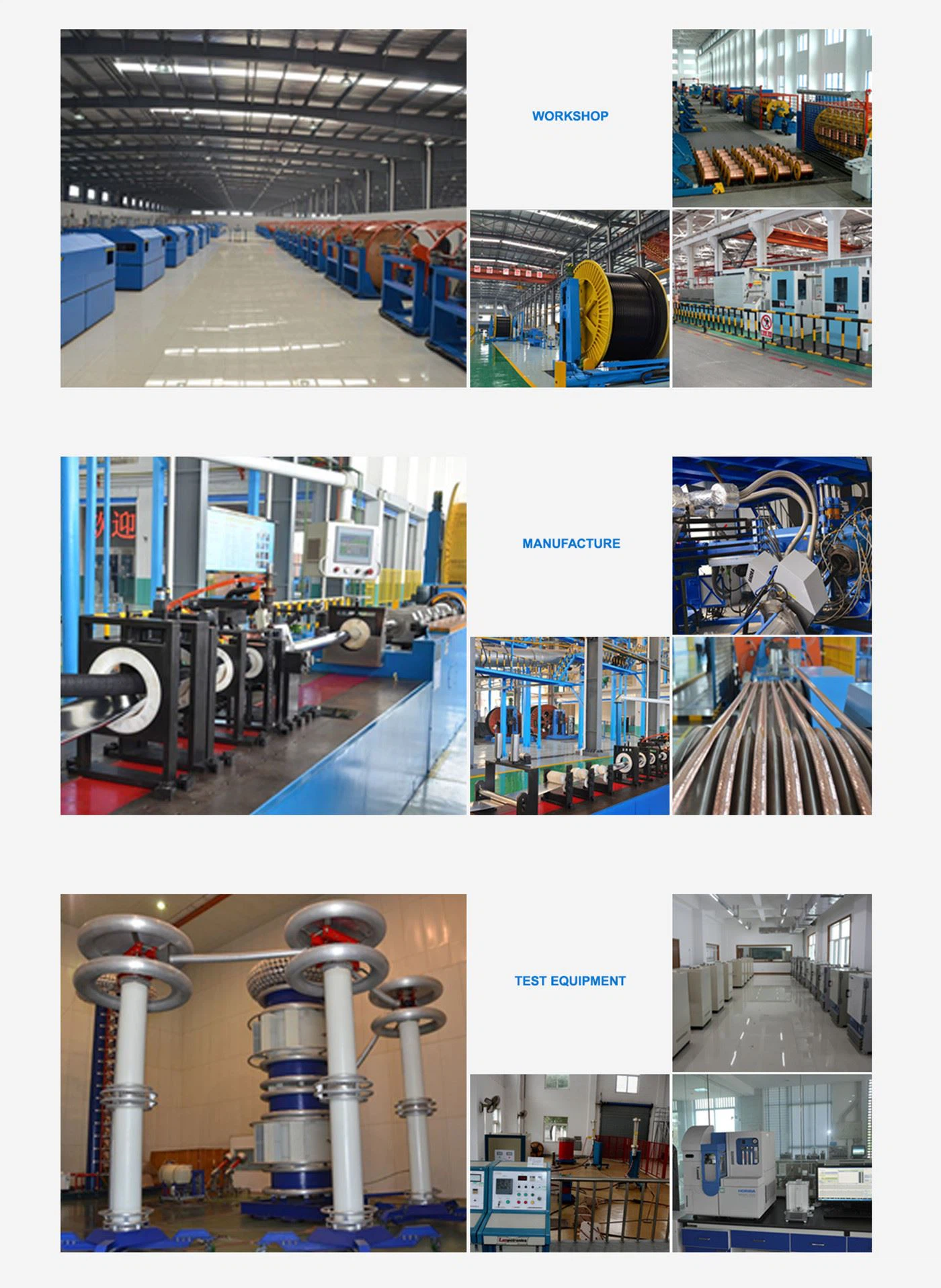

Part Ⅷ: Factory Tour

Part Ⅸ: Service Guarantee

● Quickly and professional response;

● Excellent quality with reasonable price;

● Sufficient support for our tendering representatives;

● OEM service available based on official & legal authorization;

● Strict quality control system;

● Faster lead time than our competitors;

● Cable solutions to your particular requirements;

● Free sample is available with economic express fee;

● 12 months quality guarantee after delivery.

Part Ⅹ: FAQ

Q1: When can I get the price?

We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.

Q2: How can I get a sample to check your quality?

After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.

Q3: How long can I expect to get the sample?

After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days.

The samples will be sent to you via express and arrive in 3~5 days.

Q4: What about the lead time for mass production?

Honestly, it depends on the order quantity and the season you place the order. The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
