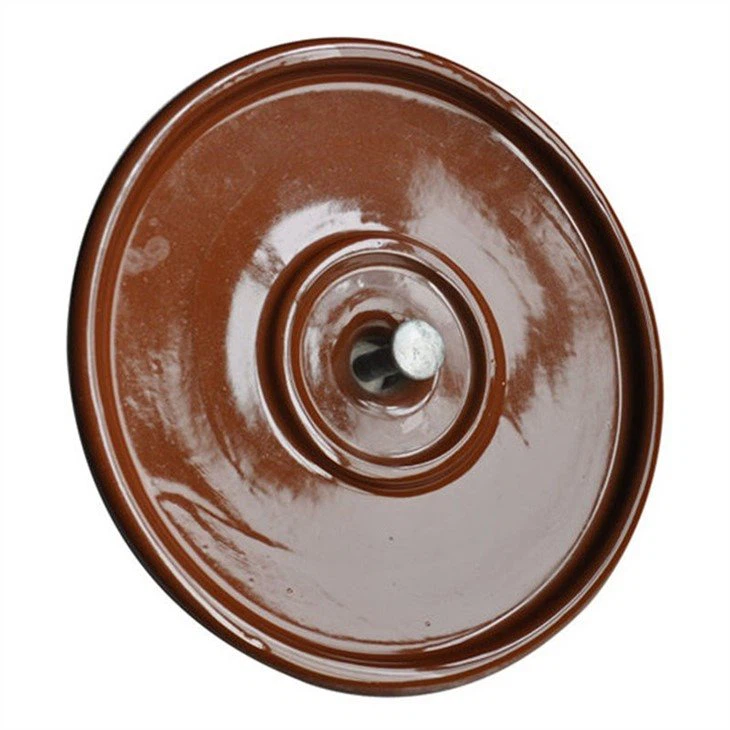

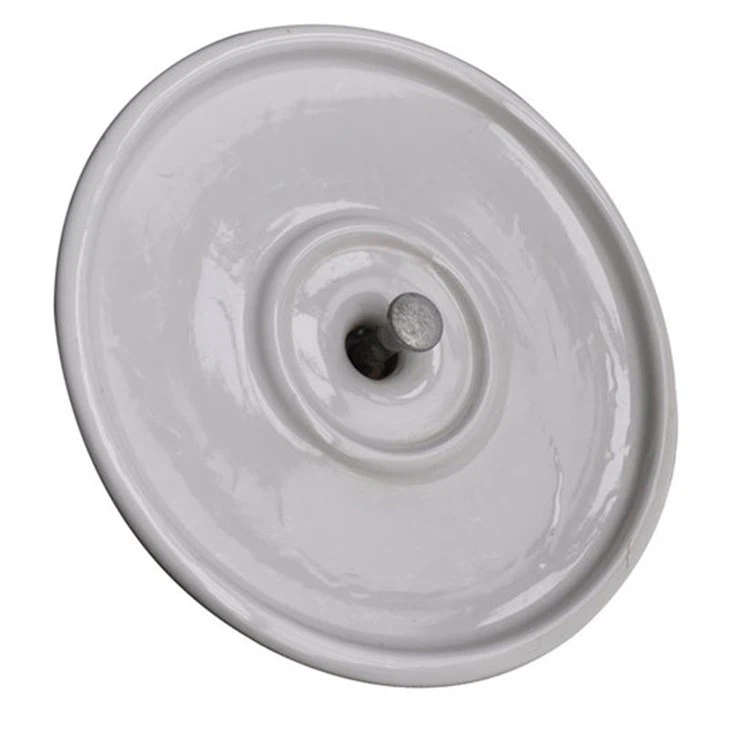

AC Anti-pollution Aerodynamic Suspension Porcelain Disc Insulator has large diameter, smooth under the umbrella without edges, streamlined structure, very good self-cleaning, small accumulation of dirt, the use of features are interspersed in the upper and middle of the AC and DC line insulator dangling string, the extra large disk diameter structure can play a role in inhibiting ice skating and bird droppings caused by the occurrence of line dirt flashover situation.

The products are manufactured in accordance with GB/T 7253, IEC60305 standards.

Part Ⅰ: Product Advantages

1. Large diameter, low dirt accumulation

2. Good insulation and heat resistance

Part Ⅱ: Structural Figure and Main Technical Data

Aerodynamic Suspension Porcelain
IEC Designation			U70BL	U80BS	U100BL	U120BL	U160BM	U160BS
Reference No.			U70B/146M	U80B/140M	U100B/146M	U120B/160M	U160B/155M	U160B/146M
Type			XMP-70	XMP-80	XMP-100	XMP-120	XMP-160	XMP2-160
Rated M&E Failing load (kN)			70	80	100	120	160	160
Nominal Diameter D (mm)			350	360	360	360	360	425
Nominal Unit Spacing H (mm)			146	140	146	160	155	146
Nominal Creepage Distance (mm)			330	330	330	330	300	385
Routine Tensile Load (kN)			35	40	50	60	80	80
Minimum Flashover Voltage (kV)	Power-frequency	Dry	80	80	80	80	80	80
	Power-frequency	Wet	45	45	45	45	45	45
	Critical Impulse	Pos.	120	120	120	120	120	120
	Critical Impulse	Neg.	120	120	120	120	120	120
Wrthstand Voltage (kV)	Power-frequency	Dry	75	75	75	75	75	75
	Power-frequency	Wet	40	40	40	40	40	40
	Critical Impulse		110	110	110	110	110	110
Power-frequency Puncture Voltage (kV)			120	120	120	120	120	120
Net Weight (approx.) (kg)			7.8	7.9	7.9	8.5	9.9	10.5
Unit Price (dollar)			18.55	20.16	21.77	22.58	23.39	25.81

Part Ⅲ: Application

Part Ⅳ: Packaging and Transportation

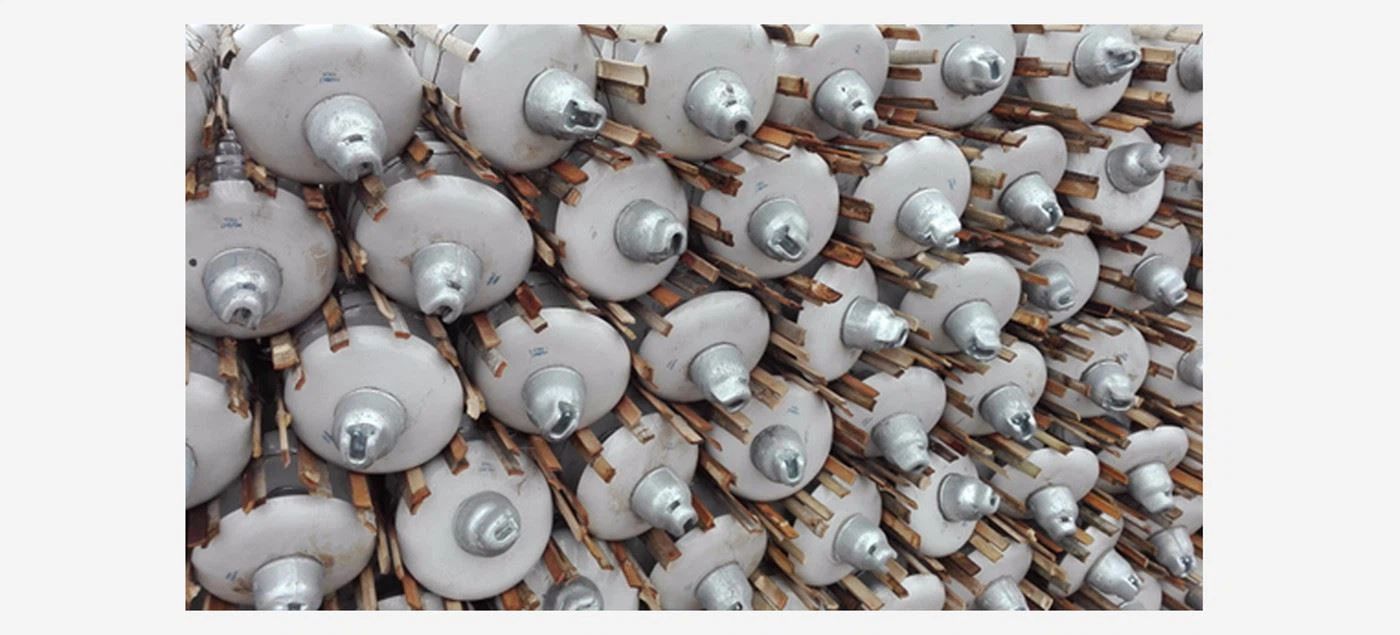

It is usually packed in bundles with bamboo frame, or according to customer's demand.

Delivery:

Port: Shanghai, or other ports as per your requirements.

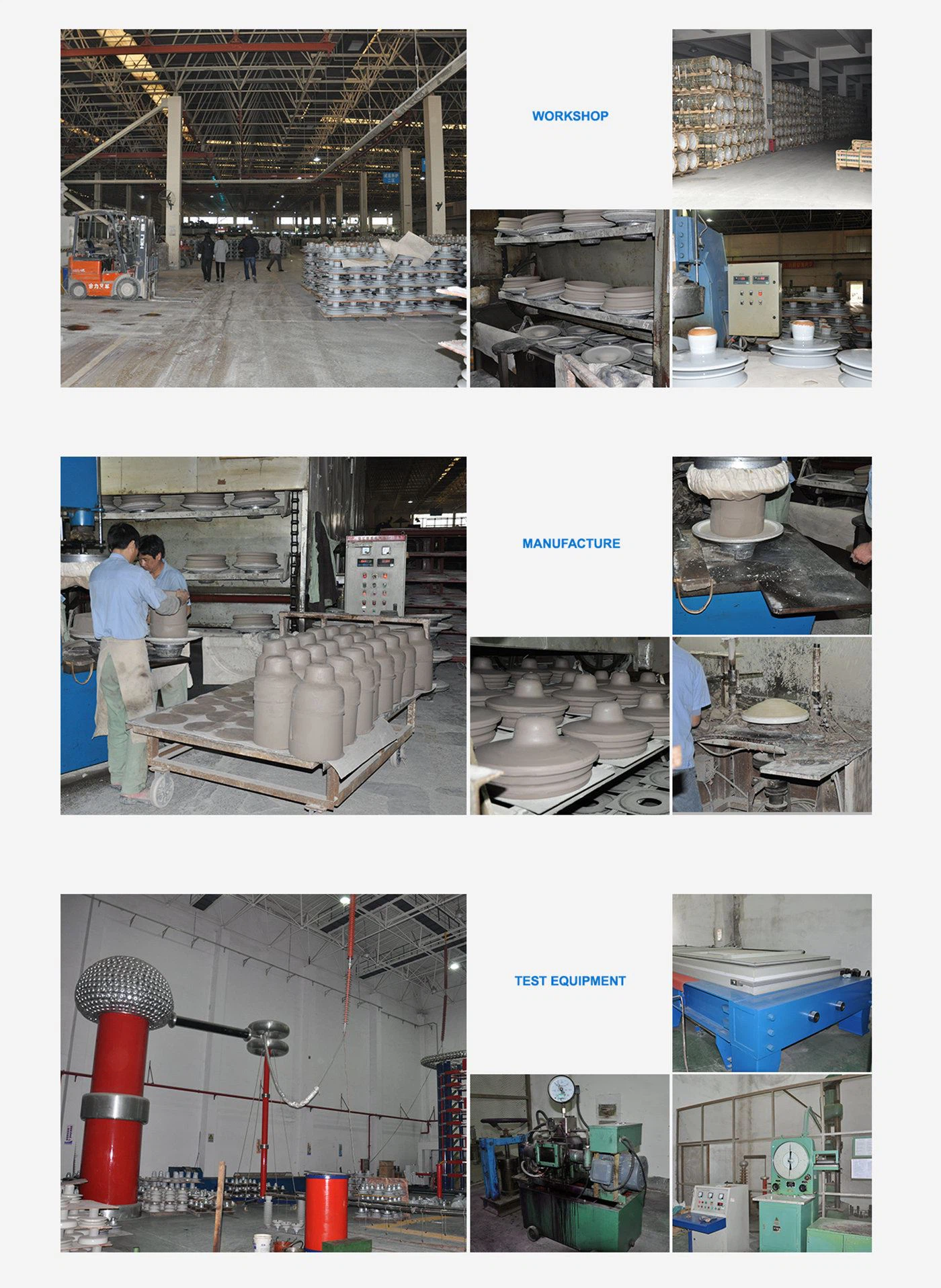

Part Ⅴ: Factory Tour
