GGD AC low voltage switch cabinet
The GGD AC low-voltage distribution cabinet mainly adopts the design form of a general cabinet. The switch cabinet design manufacturer introduces that its structure is mainly assembled by cold-formed steel welding. This switch cabinet was designed with heat dissipation in mind. There are different numbers of heat dissipation slots on the upper and lower ends of the cabinet. The cabinet door and frame are connected by hinges, making it very easy to install or disassemble.

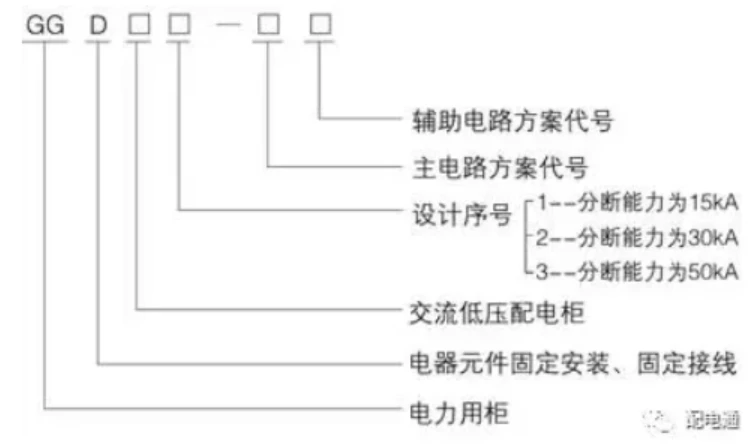

The following is a model diagram of the GGD AC low-voltage switchgear:
GCS low voltage withdrawable switch cabinet
GCS low-voltage withdrawable switch cabinet is mainly composed of a power receiving cabinet, a power feed cabinet, a motor control cabinet, etc. Each functional unit of the cabinet is separately isolated from the cable room. According to the switch cabinet design manufacturer, its biggest feature is the drawer panel, which has obvious marks such as opening, closing and pulling out. The drawer unit is equipped with a mechanical interlocking device. This switch cabinet is mainly used in power distribution systems such as power plants, petroleum, chemical industry, and metallurgy.
The following is a model diagram of the GCS low-voltage withdrawable switch cabinet:
GCK low voltage withdrawable switch cabinet
GCK low-voltage pull-out switch cabinet is made of C profile. Frame parts and special accessories are standard. The unit height of the drawer is 200mm. Each switch cabinet can install up to nine drawers. The operating mechanism is mechanically interlocked with the drawers. The main The switch cannot be withdrawn when it is in the closed position. The switch cabinet design manufacturer introduces that it is mainly suitable for the maximum working power distribution system of AC 400V and 690V, and plays a role in the conversion, distribution and control of power distribution, motor control and lighting distribution equipment.
The following is the model diagram of GCk low-voltage withdrawable switch cabinet:
MNS combined low voltage switch cabinet
MNS combined low-voltage switchgear is mainly suitable for all power generation, distribution and power use places, mainly low-voltage systems below 5000A. It has very high flexibility and can be flexibly mixed according to different needs and environments.
The following is the model diagram of MNS combined low-voltage switch cabinet:
The above is an introduction to the performance and characteristics of four common low-voltage switch cabinets. It can be seen that each switch cabinet has its own different design features and functional advantages, which also reflects the importance of switch cabinet design to the entire power distribution system.
