AC normal type porcelain disc insulators are used in the transmission and distribution line of electrical power. Normal type insulators are suitable for general areas, such as the appropriate increase in the number of insulator pieces can improve the foul flash performance.

Insulators are made of porcelain parts, iron caps and steel feet glued together by not less than 525 silicate cement and quartz sand cement. Insulator surface is generally painted white glaze, brown glaze, can also be drawn according to the need for other glaze colors.

The products are manufactured in accordance with GB/T 7253, IEC60305 standards.

Part Ⅰ: Product Advantages

1. Low cost, cheap price

2. Good insulation performance

3. Good heat resistance

4. Suitable for use in AC lines in clean areas

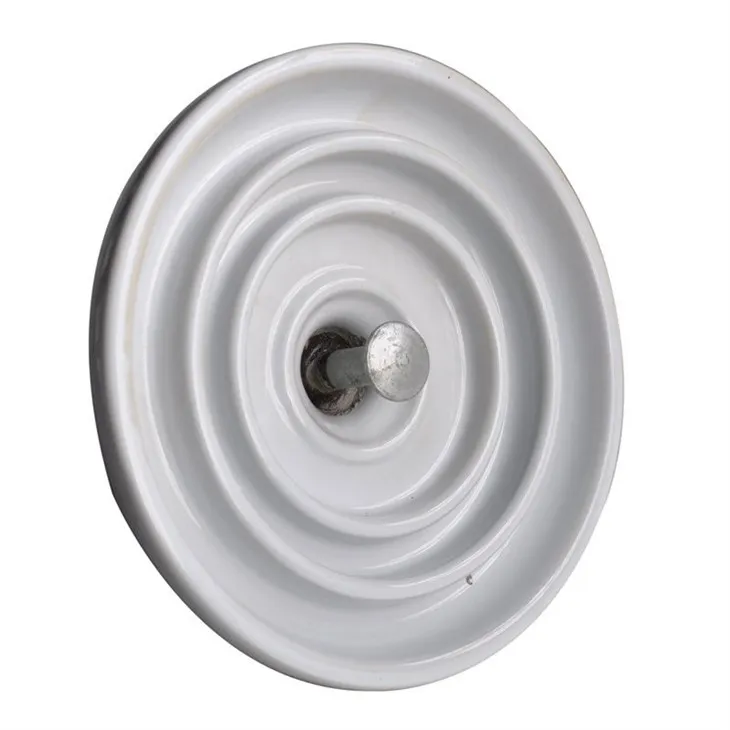

Part Ⅱ: Structural Figure and Main Technical Data

0.1

AC NormaI Type
Fig. No.			1	2	2	2
IEC Designation			U40C	U70C		U120C
Reference No.			U40C/140	U70C/146	U70C/146	U120C/146
Type			XP-40C	XP3-70C	XP6-70C	XP-120C
Rated M&E Failing load (kN)			40	70	70	120
Nominal Diameter D (mm)			190	255	255	255
Nominal Unit Spacing H (mm)			140	146	146	146
Nominal Creepage Distance (mm)			200	295	360	295
Ball & Socket Size (mm)			16C	16C	16C	16C
Routina Tensile Load (kN)			20	35	35	60
Impact Strength (N•cm)			565	565	565	678
Minimum Flashover Voltage (kV)	Power-frequency	Dry	65	76	78	78
	Power-frequency	Wet	35	45	45	45
	Critical Impulse	Pos.	100	120	120	120
	Critical Impulse	Neg.	100	125	125	125
Withstand Voltage (kV)	Power-frequency	Dry	55	70	70	70
	Power-frequency	Wet	30	40	40	40
	Critical Impulse		85	100	100	100
Power-frequency Puncture Voltage (kV)			90	110	110	110
Net Weight (approx.) (kg)			3.3	5.7	6.0	6.3
Unit Price (dollar)			4.68	7.42	7.74	10.97

0.2

AC NormaI Type
IEC Designation			U70BS	U70BL
Reference No.			U70B/127	U70B/l46	U70B/146	U70B/146	U70B/146
Type			XP1-70	XP3-70	XP4-70	XP5-70	XP6-70
Rated M&E Failing load (kN)			70	70	70	70	70
Nominal Diameter D (mm)			255	255	270	255	255
Nominal Unit Spacing H (mm)			127	146	146	146	146
Nominal Creepage Distance (mm)			295	295	330	330	360
Routine Tensile Load (kN)			35	35	35	35	35
Impact Strength (N•cm)			565	565	565	565	565
Minimum Flashover Voltage (kV)	Power-frequency	Dry	78	78	78	78	78
	Power-frequency	Wet	45	45	45	45	45
	Critical Impulse	Pos.	120	120	120	120	120
	Critical Impulse	Neg.	125	125	125	125	125
Wrthstand Voltage (kV)	Power-frequency	Dry	70	70	70	70	70
	Power-frequency	Wet	40	40	40	40	40
	Critical Impulse		100	100	100	100	100
Power-frequency Puncture Voltage (kV)			110	110	110	110	120
Net Weight (approx.) (kg)			5.6	5.6	5.8	5.8	6
Unit Price (dollar)			7.26	7.26	7.74	7.42	7.74

0.3

AC Normal Type
IEC Designation			U100BL
Reference No.			U100B/146
Type			XP-100	XP2-100
Rated M&E Failing load (kN)			100	100
Nominal Diameter D (mm)			255	255
Nominal Unit Spacing H (mm)			146	146
Nominal Creepage Distance (mm)			295	340
Routine Tensile Load (kN)			50	50
Impact Strength (N•cm)			678	678
Minimum Flashover Voltage (kV)	Power-frequency	Dry	78	78
		Wet	45	45
	Critical Impulse	Pos.	120	120
		Neg.	125	125
Wrthstand Voltage (kV)	Power-frequency	Dry	70	70
		Wet	40	40
	Critical Impulse		100	100
Power-frequency Puncture Voltage (kV)			110	120
Net Weight (approx.) (kg)			5.7	5.85
Unit Price (dollar)			8.55	9.03

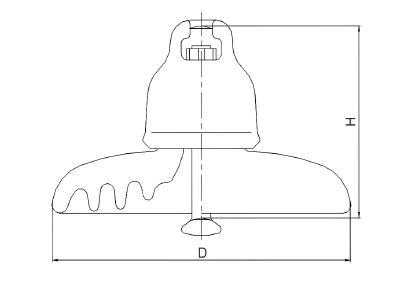

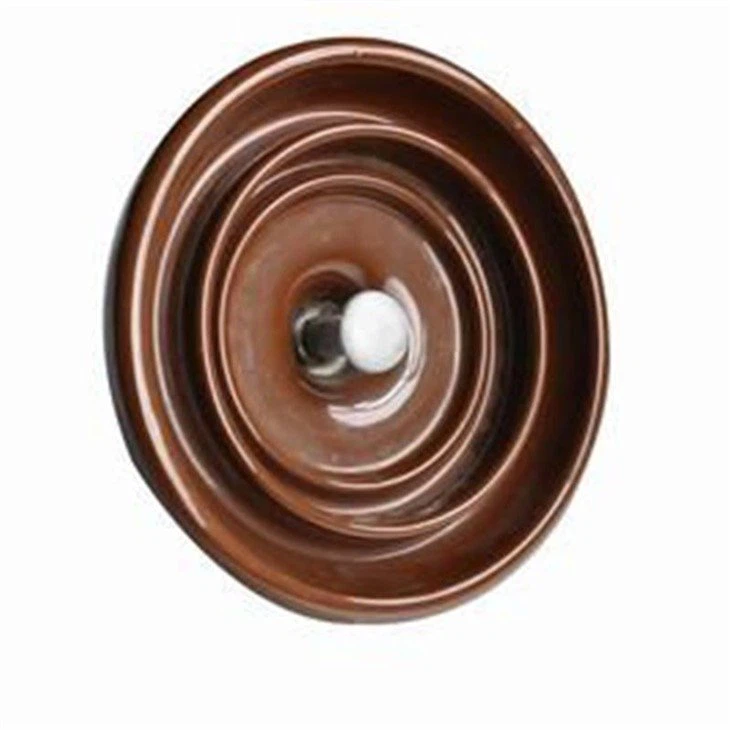

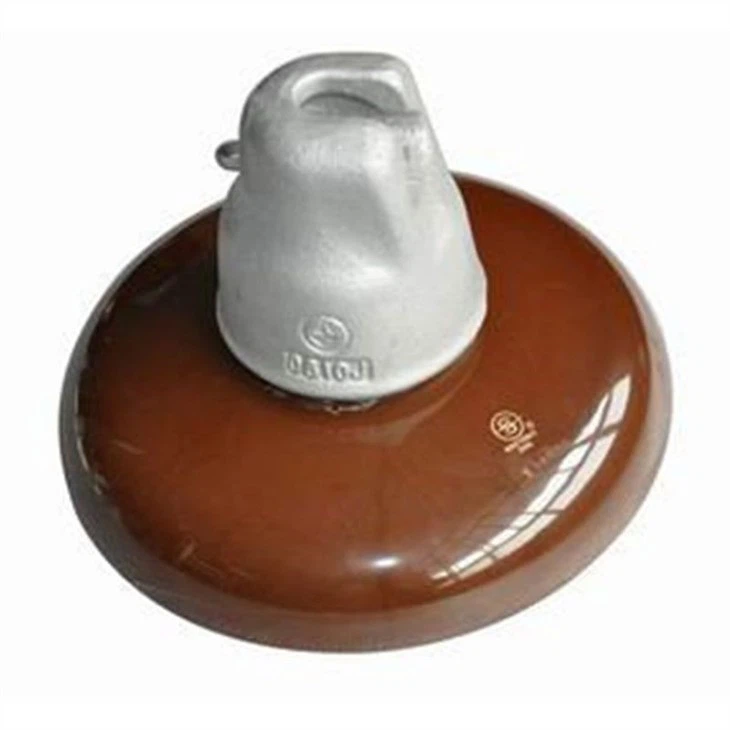

0.4

AC Normal Type
IEC Designation			U160BS		U160BM		U160BL
Reference No.			U160B/146		U160B/155		U160B/170
Type			XP1-160	XP2-160	XP3-160	XP5-160	XP4-160
Rated M&E Failing load (kN)			160	160	160	160	160
Nominal Diameter D (mm)			255	280	280	280	280
Nominal Unit Spacing H (mm)			146	146	155	155	170
Nominal Creepage Distance (mm)			325	325	360	380	405
Routine Tensile Load (kN)			80	80	80	80	80
Impact Strength (N•cm)			1017	1017	1017	1017	1017
Minimum Flashover Voltage (kV)	Power-frequency	Dry	78	80	80	80	80
	Power-frequency	Wet	45	47	47	47	47
	Critical Impulse	Pos.	120	125	125	125	125
	Critical Impulse	Neg.	125	130	130	130	130
Wrthstand Voltage (kV)	Power-frequency	Dry	70	75	75	75	75
	Power-frequency	Wet	40	45	45	45	45
	Critical Impulse		100	105	105	105	105
Power-frequency Puncture Voltage (kV)			110	110	110	120	110
Net Weight (approx.) (kg)			7.3	8.2	8.4	8.8	9.2
Unit Price (dollar)			13.71	13.71	14.84	15.32	17.74

0.5

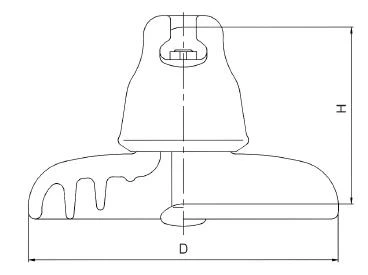

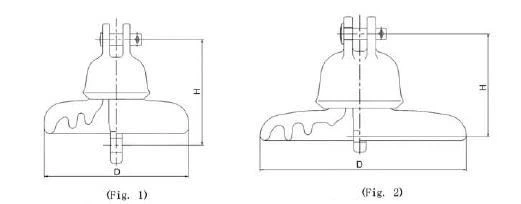

FIG.1

0.6

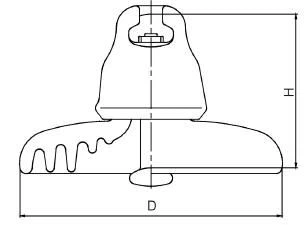

FIG.2

AC Normal Type
Fig. No.			1	1	1	2	2
IEC Designation			U210B				U240B
Reference No.			U210B/170				U240B/170
Type			XP1-210	XP-210	XP4-210	XP2-210	XP-240
Rated M&E Failing load (kN)			210	210	210	210	240
Nominal Diameter D (mm)			280	280	280	280	280
Nominal Unit Spacing H (mm)			170	170	170	170	170
Nominal Creepage Distance (mm)			335	335	380	405	405
Routine Tensile Load (kN)			105	105	105	105	120
Impact Strength (N•cm)			1017	1017	1017	1017	1017
Minimum Flashover Voltage (kV)	Power-frequency	Dry	80	80	80	80	80
	Power-frequency	Wet	47	47	47	47	47
	Critical Impulse	Pos.	125	125	125	125	125
	Critical Impulse	Neg.	130	130	130	130	130
Wrthstand Voltage (kV)	Power-frequency	Dry	75	75	75	75	75
	Power-frequency	Wet	45	45	45	45	45
	Critical Impulse		105	105	105	105	105
Power-frequency Puncture Voltage (kV)			120	120	120	120	120
Net Weight (approx.) (kg)			9.4	9.6	10.0 (10.2)	10.6 (10.8)	11.2
Unit Price (dollar)			20.16	20.32	21.77	23.39	26.61

0.7

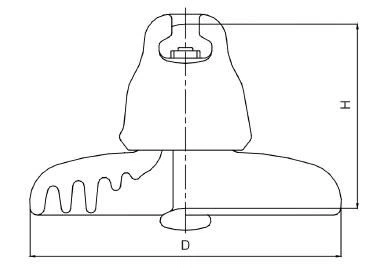

AC Normal Type
IEC Designation			U300B		U420B	U530B	U550B
Reference No.			U300B/195		U420B/205	U530B/240	U550B/240
Type			XP-300	XP1-300	XP-420	XP-530	XP-550
Rated M&E Failing load (kN)			300	300	420	530	550
Nominal Diameter D (mm)			320	320	340	380	380
Nominal Unit Spacing H (mm)			195	195	205	240	240
Nominal Creepage Distance (mm)			370	480	550	700	700
Routine Tensile Load (kN)			150	150	210	265	265
Impact Strength (N•cm)			1017	1017	1017	1017	1017
Minimum Flashover Voltage (kV)	Power-frequency	Dry	90	90	95	100	100
	Power-frequency	Wet	53	53	55	60	60
	Critical Impulse	Pos.	135	135	140	145	145
	Critical Impulse	Neg.	140	140	145	155	155
Wrthstand Voltage (kV)	Power-frequency	Dry	85	85	90	95	95
	Power-frequency	Wet	50	50	50	55	55
	Critical Impulse		110	110	130	135	135
Power-frequency Puncture Voltage (kV)			120	120	140	140	140
Net Weight (approx.) (kg)			13.1	14.25	21.1	29.5	29.5
Unit Price (dollar)			28.23	33.87	51.61	79.84	79.84

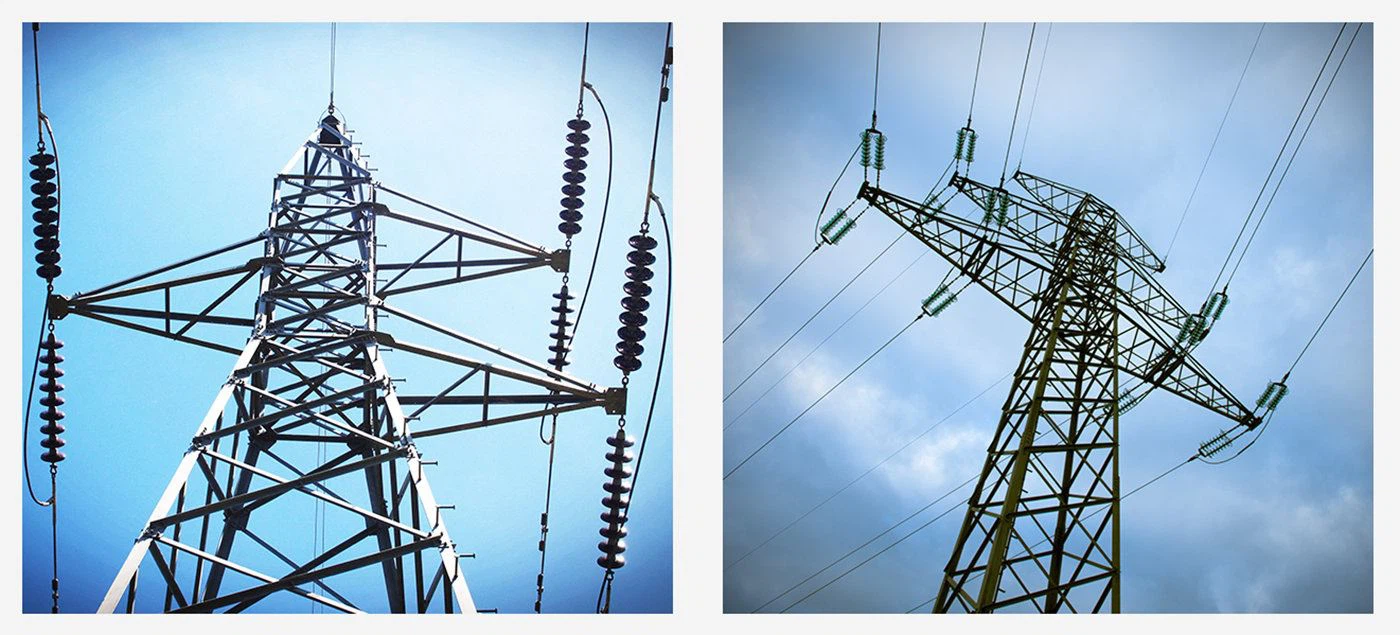

Part Ⅵ: Application

Part Ⅲ: Packaging and Transportation

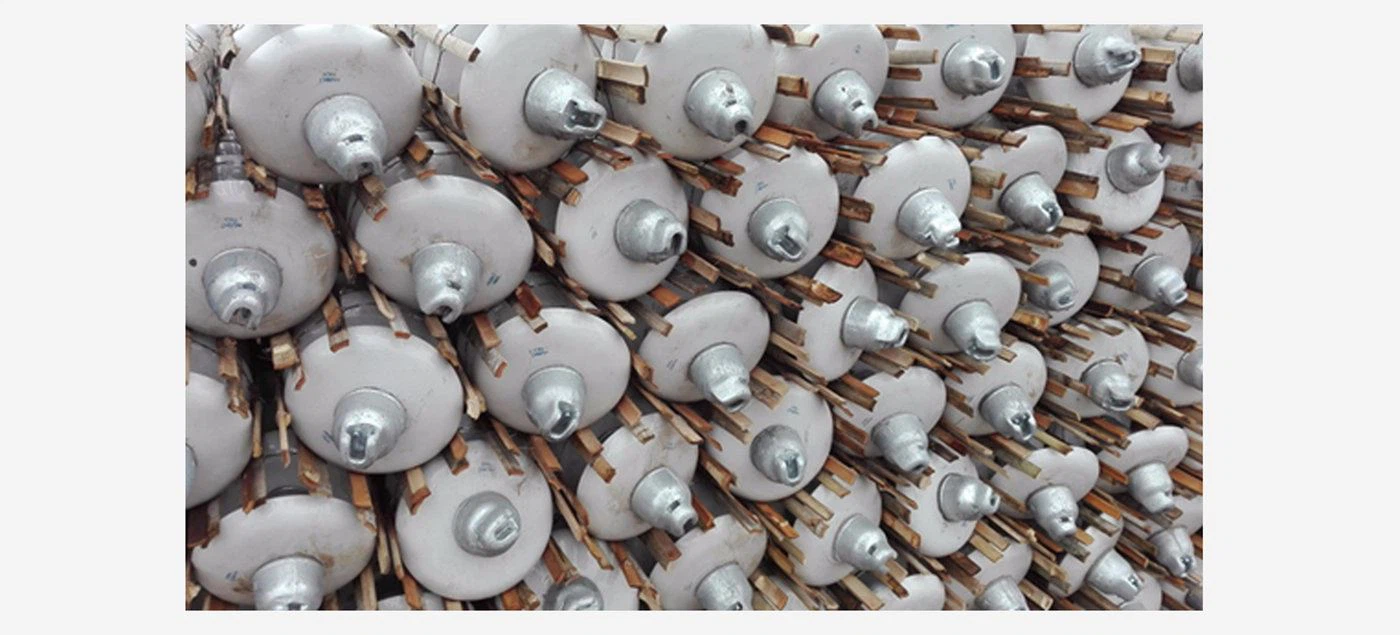

It is usually packed in bundles with bamboo frame, or according to customer's demand.
